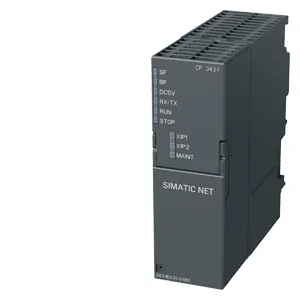

Siemens 6GK7343-1EX30-0XE0
- - spare part - - communications processor CP 343-1 for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, integrated 2-port switch ERTEC 200, S7 communication, fetch/write, send/receive RFC1006, multicast, DHCP, NTC- CPU sync, with and without diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbps.
product brand nameSIMATIC NET
at the 1st interface10... 100 Mbit/s
for power supply1
of Industrial Ethernet interfaceRJ45 port
for power supply2-pole plugable terminal block
type of voltage / of the supply voltageDC
Ürün Hakkında
- - spare part - - communications processor CP 343-1 for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, integrated 2-port switch ERTEC 200, S7 communication, fetch/write, send/receive RFC1006, multicast, DHCP, NTC- CPU sync, with and without diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbps.

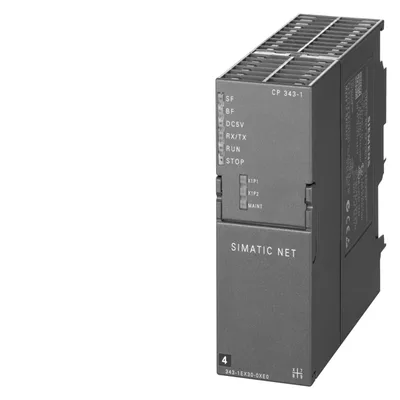

Siemens 6GK7343-1EX30-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet2
at the 1st interface / according to Industrial Ethernet2
for power supply1
of Industrial Ethernet interfaceRJ45 port
at the 1st interface / according to Industrial EthernetRJ45 port
for power supply2-pole plugable terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
supply voltage24 V
supply voltage / external24 V
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
from backplane bus / at DC / at 5 V / typical0,2 A
from external supply voltage / at DC / at 24 V / typical0,16 A
from external supply voltage / at DC / at 24 V / maximum0,2 A
power loss [W]5,8 W
ambient conditions
for vertical installation / during operation0... 40 °C
for horizontally arranged busbars / during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 single width
width40 mm
height125 mm
depth120 mm
net weight0,22 kg
S7-300 rail mountingVar
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum16
as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum2 Kibyte
number of Multicast stations16
performance data / S7 communication
maximum16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode32
performance data / PROFINET communication / as PN IO controller
number of PN IO devices / on PROFINET IO controller / operable / total32
number of external PN IO lines / with PROFINET / per rack1
as user data for input variables / as PROFINET IO controller / maximum1 Kibyte
as user data for output variables / as PROFINET IO controller / maximum1 Kibyte
as user data for input variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 bayt
as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 bayt
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO deviceVar
as user data for input variables / as PROFINET IO device / maximum512 bayt
as user data for output variables / as PROFINET IO device / maximum512 bayt
as user data for input variables / for each sub-module as PROFINET IO device240 bayt
as user data for output variables / for each sub-module as PROFINET IO device240 bayt
as user data for the consistency area for each sub-module240 bayt
number of submodules / per PROFINET IO-Device32
performance data / telecontrol
TCP/IPVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
requiredSTEP 7 V5.4 SP2 veya üstü / STEP 7 Professional V11 (TIA Portal) veya üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / switch
product feature / switchVar
switch-managedYok
with IRT / PROFINET IO switchVar
configuration with STEP 7Var
product functions / redundancy
ring redundancyVar
redundancy managerYok
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / security
password protection for Web applicationsYok
ACL - IP-basedVar
ACL - IP-based for PLC/routingYok
switch-off of non-required servicesVar
blocking of communication via physical portsVar
log file for unauthorized accessYok
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationVar
NTPVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / Polski Rejestr Statkow (PRS)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total77,4 kg
during manufacturing26,4 kg
during operation50,46 kg
after end of life0,54 kg
Aksesuarlar 33
Siemens 6GK7343-1EX30-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical |
