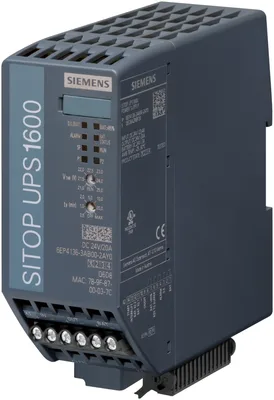

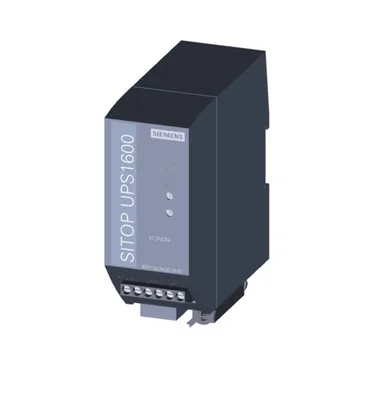

Siemens 6EP4136-3AC00-2AY0
SITOP UPS1600 EX 20 A Ethernet PROFINET uninterruptible power supply with Ethernet / PROFINET interface / OPC UA Server / Web server input: 24 V DC output: 24 V DC/20 A
product brand nameSITOP
product type designationUPS1600
type of current supplyDC UPS 24 V/20 A
voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC21... 29 V
Ürün Hakkında
SITOP UPS1600 EX 20 A Ethernet PROFINET uninterruptible power supply with Ethernet / PROFINET interface / OPC UA Server / Web server input: 24 V DC output: 24 V DC/20 A
Siemens 6EP4136-3AC00-2AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationUPS1600
type of current supplyDC UPS 24 V/20 A
input
voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC21... 29 V
adjustable response value voltage for buffer connection preset21,5 V
adjustable response value voltage for buffer connection21... 25 V; Adjustable: 21 V, 21,5 V, 22 V, 22,5 V, 23 V, 24 V, 25 V DC veya via software
input current at rated input voltage 24 V rated value25 A; for maks. charging current (4 A)
memory
type of energy storagewith batteries
product function DC-UPS modularly expandableVar
design of the mains power cut bridging-connectionAdjustable range using rotary coding switch: 0,5 min, 1 min, 2 min, 5 min, 10 min, 20 min, maks. buffering time veya via software
output
in normal operation at DC rated value24 V
in buffering mode at DC rated value24 V
formula for output voltageVin - yaklaşık 0,2 V
startup delay time typical60 ms
voltage increase time of the output voltage typical60 ms
output voltage in buffering mode at DC18,5... 27 V
rated value20 A
in normal operation0... 60 A
in buffering mode0... 60 A
peak current60 A
property of the output short-circuit proofVar
design of short-circuit protectionLimitation to 3 x I rated for 30 ms/min; through-conductivity for 1,5 x I rated for 5 sec/min
charging current0,1 A, 4 A
efficiency
at rated output voltage for rated value of the output current typical97,5 %
in case of operation on rechargeable battery typical97,5 %
at rated output voltage for rated value of the output current typical11 W
in case of operation on rechargeable battery typical11 W
supplied active power typical480 W
protection and monitoring
reverse polarity protection against energy storage unit polarity reversalVar
reverse polarity protection against input voltage polarity reversalVar

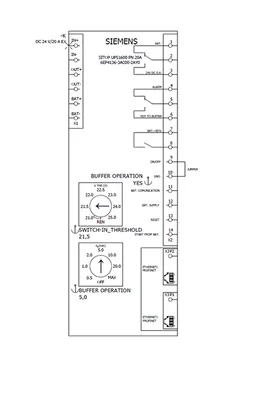

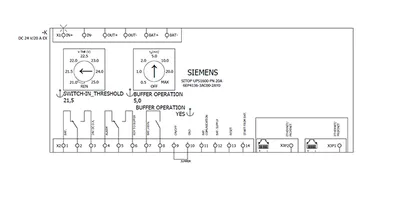

for normal operationNormal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with yaklaşık 0,25 Hz, floating changeover contact "Alarm/Bat" switching with yaklaşık 0,25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A veya AC 30 V /1 A
in buffering modeBuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20,4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed
interfaces
product component PC interfaceVar
product function communication functionVar
design of the interfaceEthernet/PROFINET
number of interfaces according to PROFINET2
safety
galvanic isolation between input and outputYok
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar
UKCA markingVar
type of certification CB-certificateVar
MTBF at 40 °C345.056 h
standards, specifications, approvals hazardous environments
IECExVar
ATEXVar; ATEX (Ex) II 3G Ex ec nC IIC T4 Gc
CCC for hazardous zone according to GB standardVar
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
Det Norske Veritas (DNV)Yok; in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total297,8 kg
during manufacturing18,5 kg
during operation278,9 kg
after end of life0,34 kg
ambient conditions
during operation-25... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at input24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG
at output24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG
for rechargeable battery module24 V DC: 2 screw terminals for 0,2... 6 mm²/24... 13 AWG
for control circuit and status message14 screw terminals for 0,2... 1,5 mm²/24... 16 AWG
mechanical data

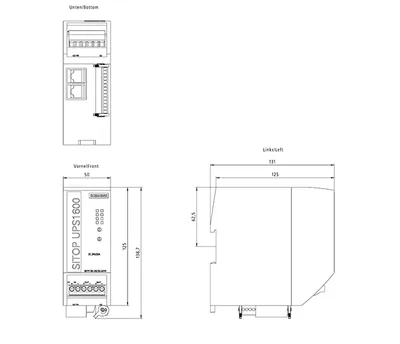

width × height × depth of the enclosure50 × 139 × 125 mm
installation width × mounting height50 mm × 239 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,45 kg
accessories
electrical accessoriesBattery module
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Aksesuarlar 3
Siemens 6EP4136-3AC00-2AY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6EP4133-0GD00-0AY0 | Aksesuar · Battery module | |
| 6EP4135-0GL00-0AY0 | Aksesuar · Battery module | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates |
