Siemens 6AV2128-3UB27-1BX0

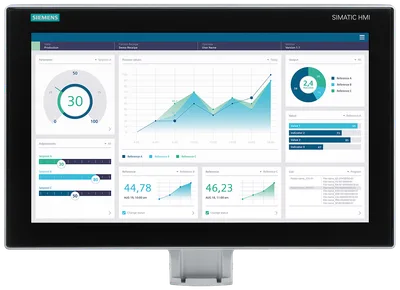

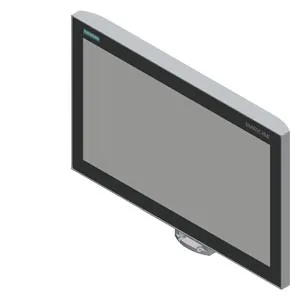

SIMATIC HMI MTP1900 PRO, için pedestal (expandable, flanş at bottom), 18,5" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, configurable as of WinCC Unified Comfort V18, contains open source yazılım, which is provided free of charge.
Ürün tipi tanımıMTP1900 Unified Comfort PRO
Design of displayTFT
Screen diagonal18,5 in
Display width409 mm
Display height230 mm
Number of colors16.777.216
Ürün Hakkında
SIMATIC HMI MTP1900 PRO, için pedestal (expandable, flanş at bottom), 18,5" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, configurable as of WinCC Unified Comfort V18, contains open source yazılım, which is provided free of charge.
Siemens 6AV2128-3UB27-1BX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıMTP1900 Unified Comfort PRO
Display
Design of displayTFT
Screen diagonal18,5 in
Display width409 mm
Display height230 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution1.920 pixel
Vertical image resolution1.080 pixel
Backlighting
MTBF backlighting (at 25 °C)50.000 h
Backlight dimmableVar; 10... 100%
Keyboard
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar
Design as multi-touch screenVar
Installation type/mounting
MountingPedestal
Mounting positiondikey
Mounting in portrait format possibleYok
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)1,2 A
Akım tüketimi, maks.1,7 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.28,8 W
Processor
Processor typeX86
Storage
FlashVar
RAMVar
Type of output
Info LEDYok
Power LEDYok
Error LEDYok
BuzzerVar
SpeakerYok
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces2; 2 ports (switch) + independent port
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces0; together with RS 485
Number of USB interfaces4; USB 3,1 Gen. 1 (type A)
Number of SD card slots2
Industrial Ethernet
Industrial Ethernet status LED2
Number of ports of the integrated switch2
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerYok
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
Ortam yedekliliği
— MRPVar
Diğer protokoller
CANYok
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP65
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Enclosure Type 12 at the frontVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
UKCA markVar
cULusVar
FM onayıVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
CCCVar
Use in hazardous areas
ATEX Zone 2Var
ATEX Zone 22Var
IECEx Zone 2Var
IECEx Zone 22Var
cULus Class I Zone 2, Division 2Var
cULus Class II Division 2Yok
FM Class I Division 2Var
FM Class II Division 2Var
Marine approval
Germanischer Lloyd (GL)Yok
American Bureau of Shipping (ABS)Yok
Bureau Veritas (BV)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (Class NK)Yok
Polski Rejestr Statkow (PRS)Yok
Chinese Classification Society (CCS)Yok
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.45 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %; no condensation
Operating systems
proprietaryVar
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Yok
WinCC Advanced (TIA Portal)Yok
WinCC Professional (TIA Portal)Yok
WinCC Unified Basic Engineering (TIA Portal)Yok
WinCC Unified Comfort Engineering (TIA Portal)Var; V18 veya üstü
WinCC Unified PC Engineering (TIA Portal)Var; V18 veya üstü
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC Unified
LibrariesVar
WriterVar
CalcVar
Web browserVar
PDF ViewerVar
Media PlayerVar
SIMATIC WinCC Sm@rtServerVar
SIMATIC WinCC AuditVar
Unified CollaborationVar
Number of Visual Basic ScriptsYok
JavaScriptVar
time-controlledVar
task-controlledVar
Number of characters per info text70
Number of message texts per message10
Message system
Number of alarm classes32
— Number of bit messages9.000
— Number of analog messages300
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message512
Number of process values per message10
Acknowledgment groupsVar
Message indicatorYok
Message bufferVar; Configured as alarm archive
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Parameter set management (recipes)
Number of parameter set types750
Parameter sets per parameter set type2.000
Entries per parameter set1.000
Size of internal parameter set memory12 MB
Parameter set memory expandableVar
Variables
Number of variables per device8.000
Number of variables per screen800
Limit valuesVar
StructuresVar
ArraysVar
Images
Number of configurable images1.200
FaceplateVar
Image objects
Number of objects per image1.200
Picture windowVar
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Scalable Vector Graphics (SVG)Var
Date/time fieldsVar
CheckboxVar
Option buttonVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Custom web displayVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen80
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Parameter set displayVar
HTML browserVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project750
Number of entries per text list750
Number of graphics lists per project750
Number of entries per graphics list750
Archiving
Number of archives per device50
Number of entries per archive500.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardVar
— USB memoryVar
— EthernetYok
Security
Rol sayısı50
Number of function rights20; number of predefined function rights
Kullanıcı sayısı200
Password export/importVar
Central user administrationVar
Transfer (upload/download)
USBYok
EthernetVar
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
Number of S7 connections16
LOGO!Var; as of WinCC Unified V20
WinACYok
SINUMERIKYok
SIMOTIONYok
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Var
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Var
OMRON (FINS TCP)Var
OMRON (Host Link)Yok
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Var
OPC UA ClientVar
OPC UA sunucusuVar
Software Controller/Open ControllerVar
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyVar
SimulationVar
Device switchoverVar
Peripherals/Options
PeripheralsPrinter, barcode reader
PrinterVar
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardVar
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var
SIMATIC HMI USB stickVar
Network cameraVar
Mechanics/material
PlasticYok
AluminumVar
Stainless steelYok
Ölçüler
Width of the housing front462 mm
Height of housing front292 mm; Without basic adapter
Ağırlık
Weight (without packaging)7,1 kg
Aksesuarlar 42
Siemens 6AV2128-3UB27-1BX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV7674-1NF01-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7674-1NG00-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV2185-8EE01-0AA0 | Aksesuar · Extension Unit | |
| 6AV2185-8EE08-0AA0 | Aksesuar · Extension Unit | |
| 6AV2185-8EF01-0AA0 | Aksesuar · Extension Unit | |
| 6AV6881-0UJ22-0AA0 | Aksesuar · protective film · protective films | |
| 6AV6881-0UJ22-1AA0 | Aksesuar · protective film · protective films | |
| 6AV7674-1KA00-0AA0 | Aksesuar · spare part | |
| 6AV7674-1LA50-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA51-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA52-0AA0 | Aksesuar · Extension Unit | |
| 6AV7674-1LA53-0AA0 | Aksesuar · Extension Unit | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV7860-0CH50-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV7674-0KD00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-0KE00-0AA0 | Aksesuar · Adapter | |
| 6AV7674-1LB50-0AA0 | Aksesuar · Adapter | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6671-8XD00-0AX0 | Aksesuar · Adapter · HMI connecting components | |
| 6AV6671-8XE00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6671-8XJ00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6881-0AS42-0AA1 | Aksesuar · Storage · Storage media | |
| 6AV2181-8XP00-0AX0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV7674-1LB10-0AA0 | Aksesuar · Accessories | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AP40-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AQ40-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AQ10-0AA0 | Aksesuar · Memory card · Storage media | |
| 6ES7648-1AA50-0XG0 | Aksesuar · Accessories · service sets | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV7674-1LX00-0AA0 | Aksesuar · Accessories |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
İlgili Aramalar
Siemens 6AV2128-3UB27-1BX0 fiyatSiemens 6AV2128-3UB27-1BX0 teklif alSiemens 6AV2128-3UB27-1BX0 satın al6AV2128-3UB27-1BX0 fiyat6AV2128-3UB27-1BX0 stok durumuSiemens yedek parçaSiemens 6AV2128-3UB27-1BX0 muadilSiemens 6AV2128-3UB27-1BX0 teknik özellikler
