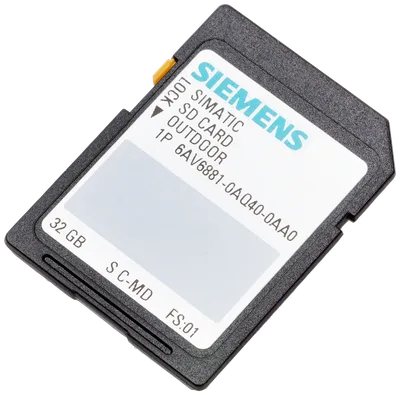

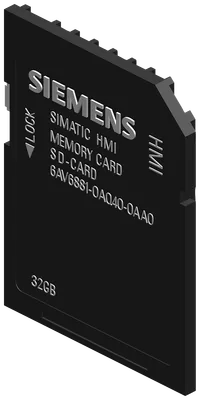

Siemens 6AV6881-0AQ40-0AA0
SIMATIC SD outdoor card 32 GB, secure dijital card, outdoor ve indoor use, can be used ile TIA V16 veya higher, scope of besleme: 1 bellek kartı
Ürün tipi tanımıSD memory card
StandardVar; Typically 10.000 insertion cycles
FlatVar
Mounting positionAny, dependent on target device
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
Ürün Hakkında
SIMATIC SD outdoor card 32 GB, secure dijital card, outdoor ve indoor use, can be used ile TIA V16 veya higher, scope of besleme: 1 bellek kartı
Siemens 6AV6881-0AQ40-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıSD memory card
Frame size/design
StandardVar; Typically 10.000 insertion cycles
FlatVar
Installation type/mounting
Mounting positionAny, dependent on target device
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)3,3 V; Max 3,6 V
Giriş akımı
Akım tüketimi (nominal değer)100 mA; tipik, maximum value
Storage
Type of memorySecure Digital memory card
Memory size32 Gbyte
Transmission rate for reading, max.600 Mbit/s; tipik
Transmission rate for writing, max.600 Mbit/s; tipik
Wear leveling (distributed writing)Var
Write protection switchVar; Effectiveness depends on the device
Arayüzler
Number of pins device-side9
Standartlar, onaylar, sertifikalar
CE işaretiVar
UKCA markVar
UL onayıVar
cULusVar
KC onayıVar
EAC (formerly Gost-R)Var
RoHS conformityVar
China RoHS complianceVar
Denizcilik onayıVar; Passive component, therefore dependent on target device
Use in hazardous areas
ATEX Zone 2Var; Always comply with the operating instructions of the target device.
ATEX Zone 22Var; Always comply with the operating instructions of the target device.
IECEx Zone 2Var; Always comply with the operating instructions of the target device.
IECEx Zone 22Var; Always comply with the operating instructions of the target device.
cULus Class I Zone 2, Division 2Var; Always comply with the operating instructions of the target device.
FM Class I Division 2Var; Always comply with the operating instructions of the target device.
Marine approval
Germanischer Lloyd (GL)Var; Always comply with the operating instructions of the target device.
American Bureau of Shipping (ABS)Var; Always comply with the operating instructions of the target device.
Bureau Veritas (BV)Var; Always comply with the operating instructions of the target device.
Det Norske Veritas (DNV)Var; Always comply with the operating instructions of the target device.
Lloyds Register of Shipping (LRS)Var; Always comply with the operating instructions of the target device.
Nippon Kaiji Kyokai (Class NK)Var; Always comply with the operating instructions of the target device.
Polski Rejestr Statkow (PRS)Var; Always comply with the operating instructions of the target device.
Chinese Classification Society (CCS)Var; Always comply with the operating instructions of the target device.
Compass working clearance5 m
Ambient conditions
Suited for indoor useVar
Suited for outdoor useVar
Çalışma ortam sıcaklığı
min.-30 °C; Indoor/outdoor
maks.60 °C; Indoor/outdoor
Depolama/taşıma ortam sıcaklığı
min.-30 °C
maks.70 °C
Bağıl nem
Çalışma, maks.95 %; no condensation
Condensation permissibleYok; Condensation not permissible
pre-installed operating system
Windows CEYok; Preinstalled system files
Runs under operating system
Windows CEVar
Windows VistaVar
Windows XPVar
Windows 7Var
Windows 8Var
Windows 10Var
LinuxVar
otherVar; Card must not be formatted!
Mechanics/material
PlasticVar; Gold contacts
Enclosure color (front)RAL 6034 (color deviation possible)
Service life
Number of operating cycles, keys10; min. data storage without loss of data (in years) with new card
Ölçüler
Genişlik24 mm
Yükseklik32 mm
Thickness2,1 mm
Ağırlık
Weight (without packaging)3 g
Weight (with packaging)6 g
Scope of supply
Delivery quantity in pieces1
Other
MerchandiseYok
Manufacturer nameSIEMENS AG
Manufacturer's addressGleiwitzerstraße 555, 90475 Nuremberg, Germany
Target devicesStorage medium especially for outdoor veya indoor areas, suitable for Panels as of TIA V16 (observe manual for target panel) but also for PCs with a suitable slot. Formatting destroys the system properties of the card
Note:can only be used with TIA V16 veya üstü, panel firmware must be upgraded if necessary (cannot be used in Classic Panels)
