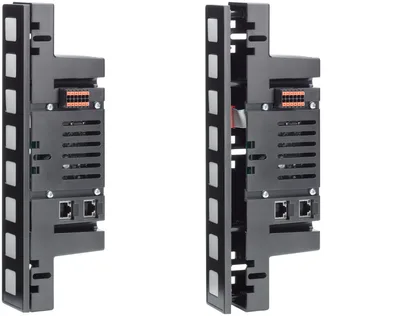

Siemens 6AV2127-1AB00-0LX1
SIMATIC HMI KP8 PN LX, 8 short-stroke switches long, 1-6 mm sheet thickness, PN interfaces, black nötr tasarım, 8 configurable DI/DO pins, 24 V DC can be looped through, parameterizable as of STEP 7 V5.5 -- ürün expected to be mevcut as of June 2026
Ürün tipi tanımıKey Panel KP8 PN LX (1... 6 mm)
With parameterizable keysVar
— user-definable label membrane keysYok; possible via adjacent display
Function keyswith L-pattern key edge
— Number of function keys8; 19 x 19 mm per button
— Number of short-stroke keys8
Ürün Hakkında
SIMATIC HMI KP8 PN LX, 8 short-stroke switches long, 1-6 mm sheet thickness, PN interfaces, black nötr tasarım, 8 configurable DI/DO pins, 24 V DC can be looped through, parameterizable as of STEP 7 V5.5 -- ürün expected to be mevcut as of June 2026
Siemens 6AV2127-1AB00-0LX1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıKey Panel KP8 PN LX (1... 6 mm)
Control elements
With parameterizable keysVar
Keyboard
— user-definable label membrane keysYok; possible via adjacent display
Function keyswith L-pattern key edge
— Number of function keys8; 19 x 19 mm per button
— Number of short-stroke keys8
Expansions for operator control of the process
DP direct LEDs (LEDs as S7 output I/O)8; Adjustable brightness
Number of color modes for LED5; red, green, blue, yellow, white
Direct keys (keys as S7 input I/O)8
Installation type/mounting
Mounting typeclamp fastening with additional mounting clips
Mounting positionHorizontal, dikey
Rack mountingYok
Front mountingVar; mounting clip - Torx T20 tighten to 0,2 Nm; enclosure - Torx T10 tighten to 0,2 Nm
Rail mountingYok
Wall mounting/direct mountingYok
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation30°; To the front/rear
Number of slots for command devices and signaling units0
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V; 24 V can be looped through connector, interrupted when pulled
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)0,3 A
Dijital girişler
Dijital giriş sayısı8; Maks. 8 inputs ve outputs (toplam)
Giriş gerilimi
Nominal değer (DC)24 V
Dijital çıkışlar
Dijital çıkış sayısı8; Maks. 8 inputs ve outputs (toplam)
Short-circuit protectionVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.100 mA
Çıkış gerilimi
Nominal değer (DC)24 V; Non-isolated
Total current of the outputs
Current per channel, max.100 mA
Current per group, max.800 mA
Arayüzler
Number of industrial Ethernet interfaces2; For the construction of lines ve rings without external switch
PROFINET arayüz sayısı2; Incl. switch
Industrial Ethernet
Industrial Ethernet status LED2; Per port
Number of ports of the integrated switch2; Per port
Protokoller
PROFINETVar; also 3rd party PLC
PROFINET IO protokolünü desteklerVar
PROFINET CBAYok
IRTVar
PROFIsafeYok
PROFIBUSYok
EtherNet/IPYok
MPIYok
AS-InterfaceYok
EIB/KNXYok
Protokoller (Ethernet)
TCP/IPYok
Ortam yedekliliği
— MRPVar
Diğer protokoller
AS-Interface Safety at WorkYok
CANYok
Data-HighwayYok
DeviceNetYok
DeviceNet SafetyYok
Foundation FieldbusYok
INTERBUSYok
INTERBUS-SafetyYok
Local Operating NetworkYok
MODBUSYok
SafetyBUS pYok
SERCOSYok
SUCOnetYok
other bus systemsYok
Test commissioning functions
Illuminant testVar; During switch on
Key and signal lamp testVar; automatically when switching on
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar; Group 1, measured a distance of 10 m
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP64
IP (rear)IP20
Enclosure Type 4 at the frontYok
Enclosure Type 4x at the frontYok
Enclosure Type 12 at the frontYok
Standartlar, onaylar, sertifikalar
CE işaretiVar
CSA approvalYok
UL onayıYok
cULusYok
FM onayıYok
RCM (eski adıyla C-TICK)Yok
KC onayıYok
EAC (formerly Gost-R)Yok
CCCYok; not necessary
Suitable for safety functionsYok
Denizcilik onayıYok
Use in hazardous areas
ATEX Zone 2Yok
ATEX Zone 22Yok
cULus Class I Zone 1Yok
cULus Class I Zone 2, Division 2Yok
FM Class I Division 2Yok
Marine approval
Germanischer Lloyd (GL)Yok
American Bureau of Shipping (ABS)Yok
Bureau Veritas (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (Class NK)Yok
Polski Rejestr Statkow (PRS)Yok
Çalışma ortam sıcaklığı
min.0 °C
maks.60 °C
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.60 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.60 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.60 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.60 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.70 °C
Bağıl nem
Çalışma, maks.95 %; no condensation
Configuration software
STEP 7 Basic (TIA Portal)Var
STEP 7 Professional (TIA Portal)Var
Process coupling
S7-1200Var; with ET 200pro CPU ve ET 200S CPU
S7-1500Var
S7-200Yok
S7-300/400Var; with F-CPU: STEP 7 V11 SP1 (veya üstü) ve Safety V11 (veya üstü) veya SIMATIC STEP 7 Basic V11 (veya üstü)
LOGO!Yok
WinACVar
SINUMERIKYok
SIMOTIONYok
Allen Bradley (EtherNet/IP)Yok
Allen Bradley (DF1)Yok
Mitsubishi (MC TCP/IP)Yok
Mitsubishi (FX)Yok
OMRON (FINS TCP)Yok
OMRON (Host Link)Yok
Modicon (Modbus TCP/IP)Yok
Modicon (Modbus RTU)Yok
Mechanics/material
Enclosure material (front)Bayblend FR3010 enclosure, Autotex F150 front membrane
PlasticVar; neutral enclosure, black RAL 9005
AluminumYok
Stainless steelYok
Service life
Short-stroke keys (in switching cycles)1.500.000
LEDs (ON period)100 %
Ölçüler
Width of the housing front40,7 mm
Height of housing front252,4 mm
Mounting cutout, width24 mm; tolerances +0,5 mm, not including connection plug (depending on connector type)
Mounting cutout, height244 mm; tolerances +0,5 mm, not including connection plug (depending on connector type)
mounting depth68,15 mm; mounting plate thickness maks. 1... 6 mm
Ağırlık
Weight (without packaging)297 g
Weight (with packaging)475 g; incl. 1x 12-pole connector ve 6x mounting clips
Other
MerchandiseVar; KS28603
Manufacturer nameGETT Gerätetechnik GmbH
Manufacturer's addressMittlerer Ring 1, 08233 Treuen (Vogtland), Germany
Note:Key Panel must be configured as 6AV3688-3AY36-0AX0 Key Panel, compatible with 6AV2127-1AB00-0LX0
Aksesuarlar 33
Siemens 6AV2127-1AB00-0LX1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV2181-8AT00-0AX1 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0GD33-0DA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6671-8XK00-0AX3 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6881-0GJ22-1AA0 | Aksesuar · protective film · protective films | |
| 6AV6881-0AV63-0BA0 | Aksesuar · spare part | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0GJ22-0AA0 | Aksesuar · protective film · protective films | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6ES7648-1AA50-0XG0 | Aksesuar · Accessories · service sets | |
| 6AV6881-0AQ10-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AQ40-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AP40-0AA0 | Aksesuar · Memory card · Storage media | |
| 6ES7193-4JB00-0AA0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0GH21-2BA0 | Aksesuar · Accessories (mounting) · protective covers, protective caps | |
| 6AV6881-0GH21-2AA0 | Aksesuar · Accessories (mounting) | |
| 6AV6881-6AD10-0AA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV2181-8XP00-0AX0 | Aksesuar · Memory card · Storage media | |
| 6AV2181-4XM00-0AX0 | Aksesuar · Accessories · fixing elements, mounting | |
| 6AV6881-0AS42-0AA1 | Aksesuar · Storage · Storage media | |
| 6AV6671-8XJ00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6671-8XD00-0AX0 | Aksesuar · Adapter · HMI connecting components | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables |
