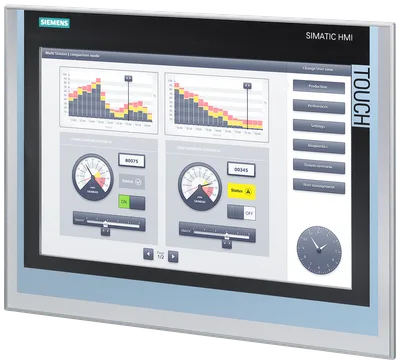

Siemens 6AV2124-0QC02-0AX2
SIMATIC HMI TP1500 Comfort, Comfort panel, touch çalışma, 15" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, MPI/PROFIBUS DP arayüz, 24 MB configuration memory, WEC 2013, configurable as of WinCC Comfort V14 SP1 ile HSP, ortam sıcaklık en çok 45 °C
Ürün tipi tanımıTP1500 Comfort
Design of displayTFT
Screen diagonal15,4 in
Display width331,2 mm
Display height207 mm
Number of colors16.777.216
Ürün Hakkında
SIMATIC HMI TP1500 Comfort, Comfort panel, touch çalışma, 15" widescreen TFT gösterge, 16 million colors, PROFINET arayüz, MPI/PROFIBUS DP arayüz, 24 MB configuration memory, WEC 2013, configurable as of WinCC Comfort V14 SP1 ile HSP, ortam sıcaklık en çok 45 °C
Siemens 6AV2124-0QC02-0AX2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıTP1500 Comfort
Display
Design of displayTFT
Screen diagonal15,4 in
Display width331,2 mm
Display height207 mm
Number of colors16.777.216
Resolution (pixels)
Horizontal image resolution1.280 pixel
Vertical image resolution800 pixel
Backlighting
MTBF backlighting (at 25 °C)80.000 h
Backlight dimmableVar; LED, dimmable
Keyboard
— Number of function keys0
Keys with LEDYok
System keysYok
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar
Expansions for operator control of the process
Direct keys (touch buttons as S7 input I/O)40
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)1,7 A
Starting current inrush I²t0,5 A²·s
Power
Active power input, typ.41 W
Processor
Processor typeX86
Storage
FlashVar
RAMVar
Memory available for user data24 MB
Type of output
Info LEDYok
Power LEDYok
Error LEDYok
BuzzerYok
SpeakerVar
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces2; 2 ports (switch) + independent port
Number of RS 485 interfaces1; RS 422 / 485 combined
Number of RS 422 interfaces0; together with RS 485
Number of RS 232 interfaces0
Number of USB interfaces2; USB 2,0
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of SD card slots2
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED3
Number of ports of the integrated switch2
Protokoller
PROFINETVar
PROFINET IO protokolünü desteklerVar
IRTVar; WinCC V14 SP1 HSP veya üstü
PROFIBUSVar
EtherNet/IPVar
MPIVar
Protokoller (Ethernet)
TCP/IPVar
DHCPVar
SNMPVar
DCPVar
LLDPVar
WEB characteristics
HTTPVar
HTTPSVar
HTMLVar
XMLVar
CSSVar
Active XVar
JavaScriptVar
Java VMYok
Ortam yedekliliği
— MRPVar
Diğer protokoller
CANYok
MODBUSVar
Diagnoses
Diagnostic information readableVar; S7 controller
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
cULusVar
FM onayıVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
Use in hazardous areas
ATEX Zone 2Var
ATEX Zone 22Var
IECEx Zone 2Var
IECEx Zone 22Var
cULus Class I Zone 1Yok
cULus Class I Zone 2, Division 2Var
cULus Class II Division 2Yok
FM Class I Division 2Var
FM Class II Division 2Yok
Marine approval
Germanischer Lloyd (GL)Yok
American Bureau of Shipping (ABS)Var
Bureau Veritas (BV)Var
Det Norske Veritas (DNV)Var
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (Class NK)Var
Polski Rejestr Statkow (PRS)Yok
Chinese Classification Society (CCS)Var
Ambient conditions
Suited for indoor useVar
Suited for outdoor useYok
Operation (vertical installation)
— For vertical installation, min.0 °C
— For vertical installation, max.45 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.0 °C
— At maximum tilt angle, max.40 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Bağıl nem
Çalışma, maks.90 %; no condensation
Operating systems
proprietaryYok
pre-installed operating system
Windows CEVar; Windows Embedded Compact 2013
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Yok
STEP 7 Professional (TIA Portal)Yok
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Yok
WinCC Comfort (TIA Portal)Var; V14 SP1 HSP ve üstü
WinCC Advanced (TIA Portal)Var; V14 SP1 HSP ve üstü
WinCC Professional (TIA Portal)Var; V14 SP1 HSP ve üstü
Online languages
Number of online/runtime languages32
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Web browserVar
Pocket WordVar
Pocket ExcelVar
PDF ViewerVar
Media PlayerVar
SIMATIC WinCC Sm@rtServerVar
SIMATIC WinCC AuditVar
Number of Visual Basic ScriptsVar
time-controlledVar
task-controlledVar
Number of characters per info text320
Message system
Number of alarm classes32
— Number of bit messages6.000
— Number of analog messages200
S7 alarm number procedureVar
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries1.024
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes500
Data records per recipe1.000
Entries per data record2.000
Size of internal recipe memory4 MB
Recipe memory expandableVar
Variables
Number of variables per device4.096
Number of variables per screen400
Limit valuesVar
MultiplexingVar
StructuresVar
ArraysVar
Images
Number of configurable images750
Permanent window/defaultVar
Global imageVar
Pop-up imagesVar
Slide-in imagesVar
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image600
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen40
Alarm viewVar
Trend viewVar
User viewVar
Status/controlVar
Sm@rtClient viewVar
Recipe viewVar
f(x) trend viewVar
System diagnostics viewVar
Media PlayerVar
HTML browserVar
PDF displayVar
IP camera displayVar
Bar graphsVar
SlidersVar
Pointer instrumentsVar
Analog/digital clockVar
Lists
Number of text lists per project500
Number of entries per text list500
Number of graphics lists per project500
Number of entries per graphics list500
Archiving
Number of archives per device50
Number of entries per archive50.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardVar
— USB memoryVar
— EthernetVar
— CSVVar
— TXTVar
— RDBVar
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importVar
SIMATIC LogonVar
Logging through printer
AlarmsVar
Report (shift log)Var
HardcopyVar
Electronic print to fileVar; PDF, HTML
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPVar
USBVar
EthernetVar
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SINUMERIKVar; with SINUMERIK option package
SIMOTIONVar
Allen Bradley (EtherNet/IP)Var
Allen Bradley (DF1)Var
Mitsubishi (MC TCP/IP)Var
Mitsubishi (FX)Var
OMRON (FINS TCP)Yok
OMRON (Host Link)Var
Modicon (Modbus TCP/IP)Var
Modicon (Modbus RTU)Var
OPC UA ClientVar
OPC UA sunucusuVar
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyVar
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterVar
SIMATIC HMI MM memory card: Multi Media CardVar; Up to 128 MB
SIMATIC HMI SD memory card: Secure Digital memory cardVar; Up to 2 GB
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var; Up to 16 GB
SIMATIC HMI USB stickVar; Up to 8 GB
Network cameraVar
Mechanics/material
PlasticYok
AluminumVar
Stainless steelYok
Ölçüler
Width of the housing front415 mm
Height of housing front310 mm
Mounting cutout, width396 mm
Mounting cutout, height291 mm
mounting depth73,2 mm
Ağırlık
Weight (without packaging)4,4 kg
Aksesuarlar 29
Siemens 6AV2124-0QC02-0AX2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AV6671-8XA00-0AX0 | Aksesuar · Connection plug · HMI connecting components | |
| 6AV7860-0CH30-0AA0 | Aksesuar · line · input devices, cables | |
| 6AV6645-7AB14-0AS1 | Aksesuar · Accessories | |
| 6AV6881-0AV63-0BA0 | Aksesuar · spare part | |
| 6AV6881-0AV62-1AA0 | Aksesuar · spare part | |
| 6AV6881-0AV61-0AA0 | Aksesuar · spare part | |
| 6AV6881-0AV22-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AV21-0AA0 | Aksesuar · Accessories · input tools | |
| 6AV6881-0AQ10-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AQ40-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AU14-1DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AP40-0AA0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AF22-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF22-0DC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LC0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AF21-0LB0 | Aksesuar · Bus cable · input devices, cables | |
| 6AV6881-0AU14-1AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-0AU14-0AA0 | Aksesuar · Accessories · input devices, cables | |
| 6AV2181-8XP00-0AX0 | Aksesuar · Memory card · Storage media | |
| 6AV6881-0AS42-0AA1 | Aksesuar · Storage · Storage media | |
| 6AV6671-8XJ00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6671-8XE00-0AX0 | Aksesuar · Accessories · HMI connecting components | |
| 6AV6671-8XD00-0AX0 | Aksesuar · Adapter · HMI connecting components | |
| 6AV6881-0AU14-0DB0 | Aksesuar · Accessories · input devices, cables | |
| 6AV6881-6AD10-0AA0 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV6671-8XK00-0AX3 | Aksesuar · Accessories (mounting) · fixing elements, mounting | |
| 6AV7674-0LX00-0AA0 | Aksesuar · Accessories · distribution boards, HUBs | |
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
İlgili Aramalar
Siemens 6AV2124-0QC02-0AX2 fiyatSiemens 6AV2124-0QC02-0AX2 teklif alSiemens 6AV2124-0QC02-0AX2 satın al6AV2124-0QC02-0AX2 fiyat6AV2124-0QC02-0AX2 stok durumuSiemens yedek parçaSiemens 6AV2124-0QC02-0AX2 muadilSiemens 6AV2124-0QC02-0AX2 teknik özellikler
