Siemens 6AG2136-6RA00-1BF0

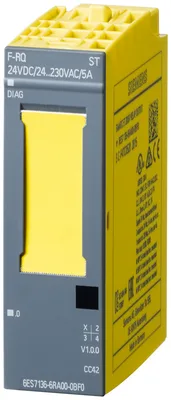

SIPLUS ET 200SP F-RQ 24VDC230VAC/5A rail based on 6ES7136-6RA00-0BF0 ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), 20 mm overall genişlik, 1 röle çıkış (2 NO) summation çıkış akım 5 A, load gerilim 24 V DC ve 24... 230 V AC, can be used en çok PL e (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if controlled by F-DQ (e.g. 6AG2136-6DB00-1CA0)
Ürün tipi tanımıF-RQ 1x24 V DC/24... 230 V AC/5 A
based on6ES7136-6RA00-0BF0
usable BaseUnitsBU type F0
I&M dataVar; I&M0 to I&M3
Nominal değer (DC)24 V; Coil voltage
İzin verilen aralık, alt sınır (DC)20,4 V
Ürün Hakkında
SIPLUS ET 200SP F-RQ 24VDC230VAC/5A rail based on 6ES7136-6RA00-0BF0 ile conformal coating, -30…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), 20 mm overall genişlik, 1 röle çıkış (2 NO) summation çıkış akım 5 A, load gerilim 24 V DC ve 24... 230 V AC, can be used en çok PL e (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if controlled by F-DQ (e.g. 6AG2136-6DB00-1CA0)
Siemens 6AG2136-6RA00-1BF0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıF-RQ 1x24 V DC/24... 230 V AC/5 A
based on6ES7136-6RA00-0BF0
usable BaseUnitsBU type F0
Color code for module-specific color-coded labelCC42
Product function
I&M dataVar; I&M0 to I&M3
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Besleme gerilimi
Nominal değer (DC)24 V; Coil voltage
İzin verilen aralık, alt sınır (DC)20,4 V
İzin verilen aralık, üst sınır (DC)28,8 V
power supply according to NEC Class 2 requiredYok
Power
Power consumption from the backplane bus100 mW
Güç kaybı
Güç kaybı, tipik1 W
Address space per module
Inputs1 bayt
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementtype C
Dijital çıkışlar
Type of digital outputRelays
Dijital çıkış sayısı1
Endüktif kapatma geriliminin sınırlandırılmasıYok
Controlling a digital inputVar
Çıkışların anahtarlama kapasitesi
Omik yükte, maks.5 A
Lamba yükünde, maks.25 W
Anahtarlama frekansı
Omik yükte, maks.2 Hz
with inductive load, max.0,1 Hz; See data in manual
with inductive load (acc. to IEC 60947-5-1, DC13), max.0,1 Hz
with inductive load (acc. to IEC 60947-5-1, AC15), max.2 Hz
horizontal installation
— 40 °C’ye kadar, maks.5 A; note derating data in the manual
— up to 50 °C, max.4 A; note derating data in the manual
— up to 60 °C, max.3 A; note derating data in the manual
— up to 70 °C, max.3 A; note derating information in the manual; yalnızca şununla: configured slots to the left ve right of the module
vertical installation
— up to 50 °C, max.3 A; note derating data in the manual
Röle çıkışları
Röle çıkışı sayısı1; 2 NO contacts
Rated supply voltage of relay coil L+ (DC)24 V
Current consumption of relays (coil current of all relays), max.70 mA
external protection for relay outputsyes; 6 A, see data in manual
Relay approved acc. to UL 508Var; Pilot Duty B300, R300
Switching capacity of contacts
— with inductive load, max.see additional description in the manual
— with resistive load, max.see additional description in the manual
— Thermal continuous current, max.5 A
— Switching current, min.1 mA
— Switching current after exceeding 300 mA, min.10 mA
— Switching current after exceeding 300 mA, max.5 A
— Rated switching voltage (DC)24 V
— Rated switching voltage (AC)230 V
Kablo uzunluğu
Ekranlı, maks.500 m; for load contacts
Ekransız, maks.300 m; for load contacts
Control cable (input), max.10 m
Interrupts/diagnostics/status information
Diagnostics functionVar
Tanılama gösterge LED’i
RUN LEDVar; green/red DIAG LED
Channel status displayVar; green LED
Potential separation channels
Kanallar arasıVar; for SELV / PELV only
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Permissible potential difference
between channels and backplane bus/supply voltage250 V AC (reinforced insulation)
Isolation
Isolation tested with2.545 V DC (type test) ve according to EN 50155 (routine test)
Overvoltage categoryIII (according to IEC/EN 61131-2:2007 ve EN 298:2022), II (according to IEC 61131-2:2017 ve IEC 61010-2-201)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsVar
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]52 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]6,8 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]45,8 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.628 kg
Highest safety class achievable in safety mode
Performance level according to ISO 13849-1PLe
Category according to ISO 13849-14
SIL acc. to IEC 61508SIL 3
SIL in accordance with EN 50126-1, 50129, 50159, 50716SIL 2; a higher safety integrity level is possible if tested ve approved for the specific application under consideration of all local regulations.
Probability of failure (for service life of 20 years and repair time of 100 hours)
— Low demand mode: PFDavg in accordance with SIL2< 1.00E-04, function test 1x per year
— Low demand mode: PFDavg in accordance with SIL3< 1.00E-05, function test 1x per month
— High demand/continuous mode: PFH in accordance with SIL2< 1.00E-08 1/h, function test 1x per year
— High demand/continuous mode: PFH in accordance with SIL3< 6.00E-09 1/h, function test 1x per month
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-30 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) veya configured empty slots to the left ve right of the module (OT3, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-30 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik20 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık56 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
