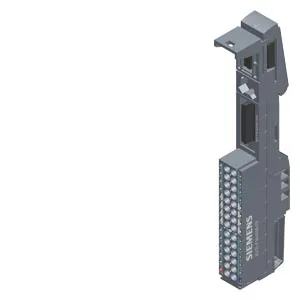

Siemens 6AG1193-6BP20-7BA0
SIPLUS ET 200SP BU15-P16+A10+2B based on 6ES7193-6BP20-0BA0 ile conformal coating, -40…+70 °C, BU tip A0, push-in terminals, ile 10 AUX terminals, bridged to the left, WxH: 15 mm x141 mm,
Ürün tipi tanımıBU type A0
based on6ES7193-6BP20-0BA0
Nominal değer (DC)24 V
For P1 and P2 bus, max.10 A
For AUX bus, max.10 A
For process terminals, max.2 A
Ürün Hakkında
SIPLUS ET 200SP BU15-P16+A10+2B based on 6ES7193-6BP20-0BA0 ile conformal coating, -40…+70 °C, BU tip A0, push-in terminals, ile 10 AUX terminals, bridged to the left, WxH: 15 mm x141 mm,
Siemens 6AG1193-6BP20-7BA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıBU type A0
based on6ES7193-6BP20-0BA0
Besleme gerilimi
Nominal değer (DC)24 V
external protection for power supply linesVar; 24 V DC/10 A miniature circuit breaker with type B veya C tripping characteristic
Current carrying capacity
For P1 and P2 bus, max.10 A
For AUX bus, max.10 A
For process terminals, max.2 A
Formation of potential groups
New potential groupYok
Potential group continued from the leftVar
Slots
Number of slots1; Type A0
Isolation
Isolation tested with707 V DC (type test)
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Color coding labels
for process terminalsCC00 to CC09
for AUX terminalsCC71 to CC73
for add-on terminalsdoes not exist
Terminals
Terminal typePush-in terminal
system-integrated shield connectionVar; Optional
Conductor cross-section, min.0,14 mm²; AWG 26
Conductor cross-section, max.2,5 mm²; AWG 14
Number of process terminals to I/O module16
Number of terminals to AUX bus10
Number of add-on terminals0
Number of terminals with connection to P1 and P2 bus2
Ölçüler
Genişlik15 mm
Yükseklik141 mm
Derinlik35 mm
Ağırlık
Ağırlık, yaklaşık50 g
