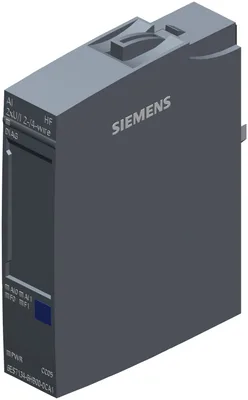

Siemens 6AG2134-6HB00-1CA1
SIPLUS ET 200SP AI 2xU/I 2/4-wire HF T1 rail based on 6ES7134-6HB00-0CA1 ile conformal coating, -40…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), analog giriş modül, suitable için BU tip A0, A1, renk code CC05, channel diagnostics, 16-bit, +/-0.1%
Ürün tipi tanımıAI 2xU/I 2-4-wire HF
FW update possibleVar
based on6ES7134-6HB00-0CA1
usable BaseUnitsBU type A0, A1
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Ürün Hakkında
SIPLUS ET 200SP AI 2xU/I 2/4-wire HF T1 rail based on 6ES7134-6HB00-0CA1 ile conformal coating, -40…+60 °C, OT1 ile ST1/2 (+70 °C für 10 minutes), analog giriş modül, suitable için BU tip A0, A1, renk code CC05, channel diagnostics, 16-bit, +/-0.1%
Siemens 6AG2134-6HB00-1CA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAI 2xU/I 2-4-wire HF
FW update possibleVar
based on6ES7134-6HB00-0CA1
usable BaseUnitsBU type A0, A1
Color code for module-specific color-coded labelCC03
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar
Measuring range scalableYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
OversamplingYok
MSIVar
CiR - Configuration in RUN
Reparameterization possible in RUNVar
Calibration possible in RUNVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi (nominal değer)39 mA; without sensor supply
24 V enkoder beslemesi
24 VVar
Short-circuit protectionVar
Output current, max.20 mA; maks. 50 mA per channel for a duration < 10 s (two-wire)
Additional 24 V encoder supply
Short-circuit protectionVar; channel by channel
Output current, max.100 mA; maks. 150 mA for a duration of < 10 s (four-wire)
Güç kaybı
Güç kaybı, tipik0,95 W; without sensor supply
Address space per module
Address space per module, max.4 bayt; + 4 bayt for scaling of measured values, + 1 bayt for QI information
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementType A
Selection of BaseUnit for connection variants
2-wire connectionBU type A0, A1
4-wire connectionBU type A0, A1
Analog girişler
Analog giriş sayısı2; Differential inputs
For current measurement2
For voltage measurement2
permissible input voltage for voltage input (destruction limit), max.30 V
permissible input current for current input (destruction limit), max.50 mA
Analog input with oversamplingYok
Standardization of measured valuesVar
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar; 15 bit
— Giriş direnci (0 … 10 V)75 kΩ
1 V to 5 VVar; 15 bit
— Input resistance (1 V to 5 V)75 kΩ
-10 V to +10 VVar; 16 bit incl. sign
— Input resistance (-10 V to +10 V)75 kΩ
-5 V to +5 VVar; 16 bit incl. sign
— Input resistance (-5 V to +5 V)75 kΩ
Input ranges (rated values), currents
0 … 20 mAVar; 15 bit
— Input resistance (0 to 20 mA)130 Ω
-20 mA to +20 mAVar; 16 bit incl. sign
— Input resistance (-20 mA to +20 mA)130 Ω
4 mA to 20 mAVar; 15 bit
— Input resistance (4 mA to 20 mA)130 Ω
Kablo uzunluğu
Ekranlı, maks.1.000 m; 200 m for voltage measurement
Analog value generation for the inputs
Measurement principleSigma Delta
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Integration time (ms)67,5 / 22,5 / 18,75 / 10 / 5 / 2,5 / 1,25 / 0,625 ms
Basic conversion time, including integration time (ms)68,03 / 22,83 / 19,03 / 10,28 / 5,23 / 2,68 / 1,43 / 0,730 ms
Interference voltage suppression for interference frequency f1 in Hz16,6 / 50 / 60 / 300 / 600 / 1.200 / 2.400 / 4.800
Dönüşüm süresi (kanal başına)68,2 / 23 / 19,2 / 10,45 / 5,40 / 2,85 / 1,6 / 0,9 ms
Basic execution time of the module (all channels released)1 ms
Smoothing of measured values
Number of smoothing levels6; yok; 2-/4-/8-/16-/32-fold
ParameterizableVar
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
— Burden of 2-wire transmitter, max.650 Ω
for current measurement as 4-wire transducerVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,01 %
Temperature error (relative to input range), (+/-)0,003 %/K
Crosstalk between the inputs, min.-50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,01 %
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,2 %
Current, relative to input range, (+/-)0,2 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,05 %; 0,1 % SFU 4,8 kHz
Current, relative to input range, (+/-)0,05 %; 0,1 % SFU 4,8 kHz
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Common mode voltage, max.35 V
Common mode interference, min.90 dB
Isochronous mode
Filtering and processing time (TCI), min.800 µs
Bus cycle time (TDP), min.1 ms
Jitter, max.5 µs
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmVar; two upper ve two lower limit values in her biri case
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; Measuring range 4 to 20 mA only
short-circuitVar; channel-by-channel, 1 to 5 V veya for short-circuit in encoder supply
Group errorVar
Overflow/UnderflowVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıVar
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT1, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -30 °C
Yatay montaj, maks.60 °C; = Tmax; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) veya configured empty slots to the left ve right of the module (OT3, ST0 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -30 °C
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık32 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 13
Siemens 6AG2134-6HB00-1CA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6BP40-7BA1 | Aksesuar · BaseUnit | |
| 6AG1193-6BP00-7DA1 | Aksesuar · BaseUnit | |
| 6AG1193-6BP00-7BA1 | Aksesuar · BaseUnit | |
| 6AG1193-6BP20-7DA0 | Aksesuar · BaseUnit | |
| 6AG1193-6BP20-7BA0 | Aksesuar · BaseUnit | |
| 6AG1193-6BP00-7DA0 | Aksesuar · BaseUnit | |
| 6AG1193-6BP40-7DA1 | Aksesuar · BaseUnit | |
| 6AG1193-6BP00-7BA0 | Aksesuar · BaseUnit | |
| 6AG2193-6BP20-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP20-4BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG2193-6BP00-4BA0 | Zorunlu ek ürün · BaseUnit |
