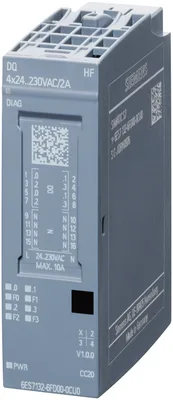

Siemens 6AG2132-6FD00-4CU0

SIPLUS ET 200SP DQ 4x24..230VAC TX rail based on 6ES7132-6FD00-0CU0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital çıkış modülü, suitable için BU tip U0, renk code CC20, channel diagnostics two alternative çalışma modes: DQ ve güç kontrol,

SiemensMFR # 6AG2132-6FD00-4CU0SKU # YLS9SOZKOCU9UR

Ürün tipi tanımıDQ 4x24... 230 V AC/2 A HF

FW update possibleVar

based on6ES7132-6FD00-0CU0

usable BaseUnitsBU type U0

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6AG2132-6FD00-4CU0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

Ürün tipi tanımıDQ 4x24... 230 V AC/2 A HF

FW update possibleVar

based on6ES7132-6FD00-0CU0

usable BaseUnitsBU type U0

Color code for module-specific color-coded labelCC20

Product function

I&M dataVar; I&M0 to I&M3

Isochronous modeYok

Mühendislik aracı

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

DQVar

DQ with energy-saving functionVar

PWMYok

OversamplingYok

MSOYok

Phase controlVar; Control area: 8,5... 100% of the phase angle

Trailing-edge phaseYok

Half-waveVar

Full-waveVar

Besleme gerilimi

Rated value (AC)230 V; 47... 63 Hz, maks. rate of change of frequency 1 mHz/s

permissible range, lower limit (AC)20,4 V

permissible range, upper limit (AC)264 V

Giriş akımı

Akım tüketimi (nominal değer)8 mA; without load

Çıkış gerilimi

Rated value (AC)230 V; 24V AC to 230V AC

Güç kaybı

Güç kaybı, tipik9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz

Address space per module

Inputs+ 1 bayt for QI information

Outputs8 bayt

Donanım yapılandırması

Automatic encodingVar

Mechanical coding elementVar

Selection of BaseUnit for connection variants

1-wire connectionBU type U0

2-wire connectionBU type U0

3-wire connectionBU type U0 + Potential distributor module

Dijital çıkışlar

Type of digital outputTriac

Dijital çıkış sayısı4

Current-sinkingYok

Current-sourcingVar

Digital outputs, parameterizableVar

Short-circuit protectionYok; external fusing necessary

Open-circuit detectionVar; channel by channel

Response threshold, typ.1 mA; 40 V AC veya more

Overload protectionYok; A miniature fuse with 10 tripping current ve tripping characteristic "quick response" must be provided in the module supply

Controlling a digital inputVar

Çıkışların anahtarlama kapasitesi

Omik yükte, maks.2 A; Maks. 4 A, see additional description in manual

with inductive load, max.2 A

Lamba yükünde, maks.100 W; Tungsten rating in accordance with UL; for thermistors with higher power ratings, see the notes in the manual

Çıkış gerilimi

“1” sinyali için, min.20,4 V

Çıkış akımı

“1” sinyali için nominal değer2 A

for signal "1" permissible range, min.10 mA

for signal "1" permissible range, max.4 A; note derating data in the manual

“0” sinyali için artık akım, maks.3 mA

Omik yükte çıkış gecikmesi

“0”dan “1”e, maks.40 ms; 2 AC cycles

“1”den “0”a, maks.20 ms; 1 AC cycle

Parallel switching of two outputs

for logic linksYok

for upratingYok

for redundant control of a loadVar

Anahtarlama frekansı

Omik yükte, maks.10 Hz; Applies to DQ mode; limited by line frequency in PC mode

with inductive load (acc. to IEC 60947-5-1, AC15), max.10 Hz; Applies to DQ mode; limited by line frequency in PC mode

Lamba yükünde, maks.1 Hz; Applies to DQ mode; limited by line frequency in PC mode

Total current of the outputs

Current per channel, max.2 A; Maks. 4 A, see additional description in manual

Current per module, max.8 A

horizontal installation

— 40 °C’ye kadar, maks.8 A; Applicable for current channels up to 2 A. For current channels between 2 A ve 4 A, note derating data in the manual

— up to 50 °C, max.6 A; Applicable for current channels up to 2 A. For current channels between 2 A ve 4 A, note derating data in the manual

— up to 60 °C, max.4 A; Applicable for current channels up to 2 A. For current channels between 2 A ve 4 A, note derating data in the manual

— up to 70 °C, max.2 A; Applicable for current channels up to 2 A

vertical installation

— up to 30 °C, max.8 A

— 40 °C’ye kadar, maks.6 A

— up to 50 °C, max.4 A

Kablo uzunluğu

Ekranlı, maks.1.000 m

Ekransız, maks.600 m

Interrupts/diagnostics/status information

Diagnostics functionVar

Substitute values connectableVar

Alarms

Diagnostic alarmVar

Diagnoses

Diagnostic information readableVar

Monitoring the supply voltageVar

Wire breakVar; channel by channel

Short-circuitYok

Group errorVar

Tanılama gösterge LED’i

Monitoring of the supply voltage (PWR-LED)Var; green PWR LED

Channel status displayVar; green LED

for channel diagnosticsVar; red Fn LED

for module diagnosticsVar; green/red DIAG LED

Potential separation channels

Kanallar arasıYok

between the channels and backplane busVar

between the channels and the power supply of the electronicsYok

Isolation

Isolation tested with2.545 V DC (type test) ve according to EN 50155 (routine test)

Standartlar, onaylar, sertifikalar

Suitable for safety functionsYok

Railway application

EN 50121-3-2Var; EMC for rail vehicles

EN 50121-4Var; EMC for signal ve telecommunications systems

EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)

EN 50124-1Var; Railway applications - overvoltage category OV3; pollution degree PD2; UNm = 230 V AC

EN 50125-1Var; Rail vehicles - see ambient conditions

EN 50125-2Var; Stationary electrical equipment - see ambient conditions

EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)

EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position

EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B

Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support

Çalışma ortam sıcaklığı

Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)

Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)

Dikey montaj, min.-40 °C; = Tmin

Dikey montaj, maks.50 °C; = Tmax

Deniz seviyesine göre çalışma yüksekliği

Installation altitude above sea level, max.2.000 m

Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)

Bağıl nem

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine

— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on land craft, rail vehicles and special-purpose vehicles

— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine

— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Var; Type 1 protection

Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017

Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A

Ölçüler

Genişlik20 mm

Yükseklik73 mm

Derinlik58 mm

Ağırlık

Ağırlık, yaklaşık50 g

Other

Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776

Aksesuarlar 2

Siemens 6AG2132-6FD00-4CU0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6AG2193-6BP00-4BU0	Zorunlu ek ürün · BaseUnit
6AG2193-6BP00-4DU0	Zorunlu ek ürün · BaseUnit
