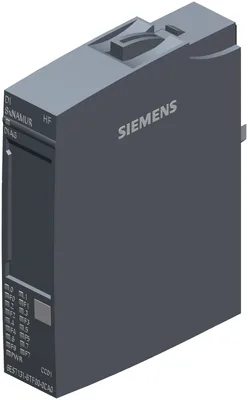

Siemens 6AG2131-6TF00-4CA0
SIPLUS ET 200SP DI 8x NAMUR HF TX rail based on 6ES7131-6TF00-0CA0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital giriş modülü, suitable için BU tip A0, renk code CC01, channel diagnostics
Ürün tipi tanımıDI 8xNAMUR HF
FW update possibleVar
based on6ES7131-6TF00-0CA0
usable BaseUnitsBU type A0
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP DI 8x NAMUR HF TX rail based on 6ES7131-6TF00-0CA0 ile conformal coating, -40…+70 °C, OT4 ile ST1/2 (+85 °C için 10 minutes), dijital giriş modülü, suitable için BU tip A0, renk code CC01, channel diagnostics
Siemens 6AG2131-6TF00-4CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıDI 8xNAMUR HF
FW update possibleVar
based on6ES7131-6TF00-0CA0
usable BaseUnitsBU type A0
Color code for module-specific color-coded labelCC01
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
suitable for operation on PROFINET R1 IMsVar
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
DIVar
CounterVar
OversamplingYok
MSIYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.70 mA
Encoder supply
Number of outputs8
Short-circuit protectionVar
24 V enkoder beslemesi
24 VYok
Short-circuit protectionYok
NAMUR encoder supply
8.2 VVar
Short-circuit protectionVar
Output current per channel, max.8 mA
Output current per module, max.64 mA
Güç kaybı
Güç kaybı, tipik1,5 W
Address space per module
Address space per module, max.1 bayt
Inputs42 bayt; 1 bayt + 1 bayt for QI information in DI mode; 42 bytes in Counter mode
Outputs20 bayt; 0 in DI mode; 20 bytes in Counter mode
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementType A
Submodules
Number of configurable submodules, max.1
Selection of BaseUnit for connection variants
2-wire connectionBU type A0
3-wire connectionBU type A0
Dijital girişler
Dijital giriş sayısı8; > +60 °C number of simultaneously controllable inputs maks. 4 (komşu nokta olmadan)
Digital inputs, parameterizableVar
Kaynak/çeken girişP-reading
Pulse extensionVar; 0,5 s, 1 s, 2 s
Edge evaluationVar; rising edge, falling edge, edge change
Signal change flutterVar; 2 to 32 signal changes
Flutter observation windowVar; 0,5 s, 1 s to 100 s in 1-s steps
Digital input functions, parameterizable
Gate start/stopVar
Freely usable digital inputVar
CounterVar
— Number, max.4; See manual for details
— Counting frequency, max.5 kHz
— Counting width32 bit
— Counting direction up/downVar
Giriş gerilimi
Nominal değer (DC)8,2 V
for 10 k switched contact
— for signal "0", min.0,35 mA
— for signal "0", max.1,2 mA
— for signal "1", min.2,1 mA
— for signal "1", max.7 mA
for unswitched contact
— for signal "0", max. (permissible quiescent current)0,5 mA
— for signal "1", typ.8 mA
for NAMUR encoders
— for signal "0", min.0,35 mA
— for signal "0", max.1,2 mA
— for signal "1", min.2,1 mA
— for signal "1", max.7 mA
Input delay (for rated value of input voltage)
tolerated changeover time for changeover contacts300 ms
Standart girişler için
— ParametrelenebilirYok
for NAMUR inputs
— “0”dan “1”e, maks.20 ms; See manual for details
— at "1" to "0", max.20 ms; See manual for details
Kablo uzunluğu
Ekranlı, maks.200 m; 50 m for Counter mode
Bağlanabilir enkoderler
NAMUR encoder/changeover contact according to EN 60947Var
Single contact / changeover contact unconnectedVar
Single contact / changeover contact connected with 10 kΩVar
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar; channel by channel
Hardware interruptVar; Parameterizable, channels 0 to 7
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar
— ParametrelenebilirVar
Monitoring of encoder power supplyYok
Wire breakVar; channel by channel
Short-circuitVar; channel by channel
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
Between the channels and load voltage L+Var
between the channels and the power supply of the electronicsVar
Isolation
Isolation tested with750 V DC (type test) ve according to EN 50155 (routine test)
Standartlar, onaylar, sertifikalar
Suitable for safety functionsYok
Railway application
EN 50121-3-2Var; EMC for rail vehicles
EN 50121-4Var; EMC for signal ve telecommunications systems
EN 50121-5Var; EMC for fixed installations ve railway power supply equipment (shielded cables required)
EN 50124-1Var; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0,5 kV; UNm = 24 V DC
EN 50125-1Var; Rail vehicles - see ambient conditions
EN 50125-2Var; Stationary electrical equipment - see ambient conditions
EN 50125-3Var; Signal ve telecommunications systems - see ambient conditions; vibrations ve shocks: Application point outside of tracks (1 m to 3 m away from track)
EN 50155Var; Rail vehicles - temperature class OT4, ST1/ST2, yatay mounting position
EN 61373Var; Rail vehicles - vibrations ve shocks: Category 1 Class A/B
Fire protection acc. to EN 45545-2Var; For proof of conformity, see Service & Support
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on land craft, rail vehicles and special-purpose vehicles
— to biologically active substances according to EN 60721-3-5Var; Class 5B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 5B3 talep üzerine
— to chemically active substances according to EN 60721-3-5Var; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-5Var; Class 5S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-5Var; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
— against mechanical environmental conditions in agriculture acc. to ISO 15003Var; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Electronic equipment on rolling stock acc. to EN 50155Var; Class PC2 protective coating acc. to EN 50155:2017
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık32 g
Other
Note:for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
Aksesuarlar 8
Siemens 6AG2131-6TF00-4CA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6BP00-7BA0 | Aksesuar · BaseUnit | |
| 6AG1193-6BP00-7DA0 | Aksesuar · BaseUnit | |
| 6AG1193-6BP20-7BA0 | Aksesuar · BaseUnit | |
| 6AG1193-6BP20-7DA0 | Aksesuar · BaseUnit | |
