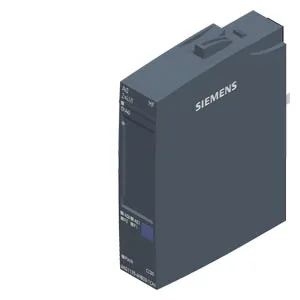

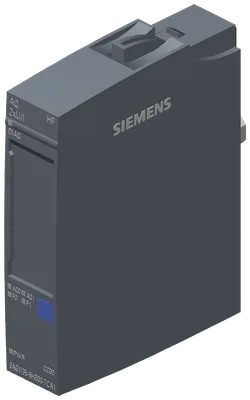

Siemens 6AG1135-6HB00-7CA1
SIPLUS ET 200SP AQ 2xU/I HF based on 6ES7135-6HB00-0CA1 ile conformal coating, -40…+70 °C, analog çıkış modül, suitable için BU tip A0, A1, renk code CC00, channel diagnostics, 16-bit, +/-0.1%
Ürün tipi tanımıAQ 2xU/I HF
FW update possibleVar
based on6ES7135-6HB00-0CA1
usable BaseUnitsBU type A0, A1
I&M dataVar; I&M0 to I&M3
Isochronous modeVar; 250 µs
Ürün Hakkında
SIPLUS ET 200SP AQ 2xU/I HF based on 6ES7135-6HB00-0CA1 ile conformal coating, -40…+70 °C, analog çıkış modül, suitable için BU tip A0, A1, renk code CC00, channel diagnostics, 16-bit, +/-0.1%
Siemens 6AG1135-6HB00-7CA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAQ 2xU/I HF
FW update possibleVar
based on6ES7135-6HB00-0CA1
usable BaseUnitsBU type A0, A1
Color code for module-specific color-coded labelCC00
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeVar; 250 µs
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
OversamplingYok
MSOYok
CiR - Configuration in RUN
Reparameterization possible in RUNYok
Calibration possible in RUNYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi (nominal değer)45 mA; without load
Akım tüketimi, maks.90 mA; 2 channels current output 20 mA
Güç kaybı
Güç kaybı, tipik0,9 W
Address space per module
Address space per module, max.4 bayt; + 1 bayt for QI information
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementType A
Analog çıkışlar
Analog çıkış sayısı2
Voltage output, short-circuit protectionVar
Voltage output, short-circuit current, max.45 mA
Cycle time (all channels), min.750 µs
Output ranges, voltage
0 to 10 VVar; 15 bit
1 V to 5 VVar; 13 bit
-5 V to +5 VVar; 15 bit incl. sign
-10 V to +10 VVar; 16 bit incl. sign
Çıkış aralıkları, akım
0 … 20 mAVar; 15 bit
-20 mA to +20 mAVar; 16 bit incl. sign
4 mA to 20 mAVar; 14 bit
Connection of actuators
for voltage output two-wire connectionVar
for voltage output four-wire connectionVar
for current output two-wire connectionVar
Load impedance (in rated range of output)
with voltage outputs, min.2 kΩ
with voltage outputs, capacitive load, max.1 µF
with current outputs, max.500 Ω
with current outputs, inductive load, max.1 mH
Destruction limits against externally applied voltages and currents
Voltages at the outputs30 V
Kablo uzunluğu
Ekranlı, maks.1.000 m; 200 m for voltage output
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Settling time
for resistive load0,05 ms
for capacitive load0,05 ms; Maks. 47 nF ve 20 m cable length
for inductive load0,05 ms
Errors/accuracies
Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0,02 %
Linearity error (relative to output range), (+/-)0,03 %
Temperature error (relative to output range), (+/-)0,003 %/K
Crosstalk between the outputs, max.-50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0,03 %
Operational error limit in overall temperature range
Voltage, relative to output range, (+/-)0,4 %
Current, relative to output range, (+/-)0,4 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to output range, (+/-)0,1 %
Current, relative to output range, (+/-)0,1 %
Isochronous mode
Execution and activation time (TCO), min.500 µs
Bus cycle time (TDP), min.750 µs
Jitter, max.5 µs
Interrupts/diagnostics/status information
Diagnostics functionVar
Substitute values connectableVar
Alarms
Diagnostic alarmVar
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; channel-by-channel, only for output type "current"
Short-circuitVar; channel-by-channel, only for output type "voltage"
Group errorVar
Overflow/UnderflowVar; channel by channel
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green PWR LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; green/red DIAG LED
Potential separation channels
Kanallar arasıYok
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Isolation
Isolation tested with707 V DC (type test)
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık31 g
Aksesuarlar 8
Siemens 6AG1135-6HB00-7CA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6BP00-7BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP20-7BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP20-7DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7BA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7DA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP40-7BA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP40-7DA1 | Zorunlu ek ürün · BaseUnit |
