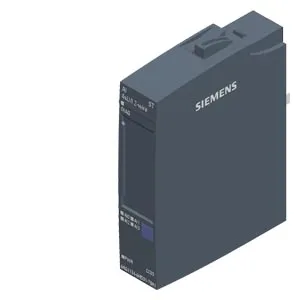

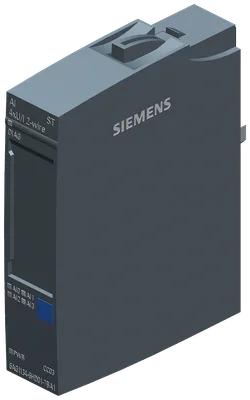

Siemens 6AG1134-6HD01-7BA1
SIPLUS ET 200SP AI 4xU/I 2-w ST based on 6ES7134-6HD01-0BA1 ile conformal coating, -40…+70 °C, analog giriş modül, suitable için BU tip A0, A1, renk code CC03, modül diagnostics, 16 bit, +/-0.3%
Ürün tipi tanımıAI 4x U/I 2-wire
FW update possibleVar
based on6ES7134-6HD01-0BA1
usable BaseUnitsBU type A0, A1
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIPLUS ET 200SP AI 4xU/I 2-w ST based on 6ES7134-6HD01-0BA1 ile conformal coating, -40…+70 °C, analog giriş modül, suitable için BU tip A0, A1, renk code CC03, modül diagnostics, 16 bit, +/-0.3%
Siemens 6AG1134-6HD01-7BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAI 4x U/I 2-wire
FW update possibleVar
based on6ES7134-6HD01-0BA1
usable BaseUnitsBU type A0, A1
Color code for module-specific color-coded labelCC03
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Measuring range scalableYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275
Operating mode
OversamplingYok
MSIYok
CiR - Configuration in RUN
Reparameterization possible in RUNVar
Calibration possible in RUNYok
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.37 mA; without sensor supply
24 V enkoder beslemesi
24 VVar
Short-circuit protectionVar
Output current, max.20 mA; maks. 50 mA per channel for a duration < 10 s
Güç kaybı
Güç kaybı, tipik0,85 W; Without encoder supply voltage
Address space per module
Address space per module, max.8 bayt; + 1 bayt for QI information
Donanım yapılandırması
Automatic encodingVar
Mechanical coding elementVar
Type of mechanical coding elementType A
Selection of BaseUnit for connection variants
2-wire connectionBU type A0, A1
Analog girişler
Analog giriş sayısı4; > 60 °C maks. 1x ±20 mA veya 4x ±10 V permissible
permissible input voltage for voltage input (destruction limit), max.30 V
permissible input current for current input (destruction limit), max.50 mA
Cycle time (all channels), min.Sum of the basic conversion times ve additional processing times (depending on the parameterization of the active channels)
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar; 15 bit
— Giriş direnci (0 … 10 V)120 kΩ
1 V to 5 VVar; 15 bit
— Input resistance (1 V to 5 V)120 kΩ
-10 V to +10 VVar; 16 bit incl. sign
— Input resistance (-10 V to +10 V)120 kΩ
-5 V to +5 VVar; 16 bit incl. sign
— Input resistance (-5 V to +5 V)120 kΩ
Input ranges (rated values), currents
0 … 20 mAVar; 15 bit
— Input resistance (0 to 20 mA)100 Ω; + yaklaşık 0,7 V diode forward voltage
4 mA to 20 mAVar; 15 bit
— Input resistance (4 mA to 20 mA)100 Ω; + yaklaşık 0,7 V diode forward voltage
Kablo uzunluğu
Ekranlı, maks.1.000 m; 200 m for voltage measurement
Analog value generation for the inputs
Measurement principleintegrating (Sigma-Delta)
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Interference voltage suppression for interference frequency f1 in Hz16,6 / 50 / 60 Hz
Dönüşüm süresi (kanal başına)180 / 60 / 50 ms
Smoothing of measured values
Number of smoothing levels4; Yok; 4/8/16 times
ParameterizableVar
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
— Burden of 2-wire transmitter, max.650 Ω
for current measurement as 4-wire transducerYok
Errors/accuracies
Linearity error (relative to input range), (+/-)0,02 %
Temperature error (relative to input range), (+/-)0,005 %/K
Crosstalk between the inputs, min.50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,05 %
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)1,3 %
Current, relative to input range, (+/-)1,3 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,3 %
Current, relative to input range, (+/-)0,3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.70 dB
Common mode voltage, max.10 V
Common mode interference, min.90 dB
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmYok
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; 4 to 20 mA
short-circuitVar; with 1 to 5 V veya 2-wire mode: Short-circuit of the encoder supply to ground veya of an input to the encoder supply
Group errorVar
Overflow/UnderflowVar
Tanılama gösterge LED’i
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsYok
for module diagnosticsVar; green/red LED
Potential separation channels
Kanallar arasıVar; channel group-specific between 2-wire current input group ve voltage input group
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar; only for voltage inputs
Permissible potential difference
between the inputs (UCM)10 V DC
Isolation
Isolation tested with707 V DC (type test)
Standartlar, onaylar, sertifikalar
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var
Çalışma ortam sıcaklığı
Yatay montaj, min.-40 °C; = Tmin (incl. condensation/frost)
Yatay montaj, maks.70 °C; = Tmax; > 60 °C maks. 1x ±20 mA veya 4x ±10 V permissible
Dikey montaj, min.-40 °C; = Tmin
Dikey montaj, maks.50 °C; = Tmax
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), yatay installation
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
— Against mechanical environmental conditions acc. to EN 60721-3-3Var; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
— Against mechanical environmental conditions acc. to EN 60721-3-6Var; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Ölçüler
Genişlik15 mm
Yükseklik73 mm
Derinlik58 mm
Ağırlık
Ağırlık, yaklaşık31 g
Aksesuarlar 8
Siemens 6AG1134-6HD01-7BA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1193-6BP00-7BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP20-7BA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP20-7DA0 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7BA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP00-7DA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP40-7BA1 | Zorunlu ek ürün · BaseUnit | |
| 6AG1193-6BP40-7DA1 | Zorunlu ek ürün · BaseUnit |
