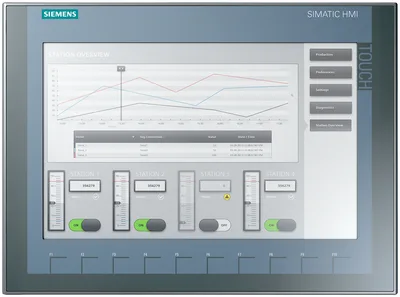

Siemens 6AG1123-2MA03-2AX0
SIPLUS HMI KTP1200 temel DP based on 6AV2123-2MA03-0AX0 ile conformal coating, -10…+50 °C, tuş/touch çalışma, 12" TFT gösterge, 65536 colors PROFIBUS arayüz, configurable as of WinCC temel V13/ STEP 7 temel V13, contains open source yazılım, which is provided free of charge see enclosed CD-ROM
Ürün tipi tanımıKTP1200 Basic color DP
based on6AV2123-2MA03-0AX0
Design of displayTFT widescreen display, LED backlighting
Screen diagonal12 in
Display width261,1 mm
Display height163,2 mm
Ürün Hakkında
SIPLUS HMI KTP1200 temel DP based on 6AV2123-2MA03-0AX0 ile conformal coating, -10…+50 °C, tuş/touch çalışma, 12" TFT gösterge, 65536 colors PROFIBUS arayüz, configurable as of WinCC temel V13/ STEP 7 temel V13, contains open source yazılım, which is provided free of charge see enclosed CD-ROM
Siemens 6AG1123-2MA03-2AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıKTP1200 Basic color DP
based on6AV2123-2MA03-0AX0
Display
Design of displayTFT widescreen display, LED backlighting
Screen diagonal12 in
Display width261,1 mm
Display height163,2 mm
Number of colors65.536
Resolution (pixels)
Horizontal image resolution1.280 pixel
Vertical image resolution800 pixel
Backlighting
MTBF backlighting (at 25 °C)20.000 h
Backlight dimmableVar
Keyboard
— Number of function keys10
— Number of function keys with LEDs0
Keys with LEDYok
System keysYok
Numeric keyboardVar; Onscreen keyboard
alphanumeric keyboardVar; Onscreen keyboard
Touch operation
Design as touch screenVar; Analog-resistive
Installation type/mounting
Mounting positiondikey
Mounting in portrait format possibleVar
Mounting in landscape format possibleVar
maximum permissible angle of inclination without external ventilation35°
Besleme gerilimi
Type of supply voltageDC
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Giriş akımı
Akım tüketimi (nominal değer)550 mA
Starting current inrush I²t0,2 A²·s
Power
Active power input, typ.13,2 W
Processor
Processor typeARM
Storage
FlashVar
RAMVar
Memory available for user data10 MB
Type of output
BuzzerVar
SpeakerYok
Saat
Donanım saati (gerçek zamanlı)Var
Software clockVar
retentiveVar; Back-up duration typically 6 weeks
synchronizableVar
Arayüzler
Number of industrial Ethernet interfaces0
Number of RS 485 interfaces1
Number of RS 422 interfaces1; together with RS 485
Number of RS 232 interfaces0; with optional adapter
Number of USB interfaces1; Up to 16 GB
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesYok
Industrial Ethernet
Industrial Ethernet status LED0
Protokoller
PROFINETYok
PROFINET IO protokolünü desteklerYok
IRTYok
PROFIBUSVar
EtherNet/IPYok
MPIVar
Protokoller (Ethernet)
TCP/IPYok
DHCPYok
SNMPYok
DCPYok
LLDPYok
WEB characteristics
HTTPYok
HTMLYok
Ortam yedekliliği
— MRPYok
Diğer protokoller
CANYok
MODBUSVar; Modicon (MODBUS RTU)
Diagnoses
Diagnostic information readableYok
EN 55 011’e göre radyo girişimi yayımı
Sınır sınıfı A, endüstriyel alanlarda kullanım içinVar
Sınır sınıfı B, yerleşim alanlarında kullanım içinYok
Koruma derecesi ve sınıfı
IP (at the front)IP65
IP (rear)IP20
Enclosure Type 4 at the frontVar
Enclosure Type 4x at the frontVar
Operation (vertical installation)
— For vertical installation, min.-10 °C; = Tmin
— For vertical installation, max.50 °C
Operation (max. tilt angle)
— At maximum tilt angle, min.-10 °C; = Tmin
— At maximum tilt angle, max.40 °C
Operation (vertical installation, portrait format)
— For vertical installation, min.-10 °C; = Tmin
— For vertical installation, max.40 °C
Operation (max. tilt angle, portrait format)
— At maximum tilt angle, min.-10 °C; = Tmin
— At maximum tilt angle, max.35 °C
Depolama/taşıma ortam sıcaklığı
min.-20 °C
maks.60 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.5.000 m
Ambient air temperature-barometric pressure-altitudeTmin... Tmax 1.140 hPa... 795 hPa (-1 000 m... +2.000 m) // Tmin... (Tmax - 10 K) 795 hPa... 658 hPa (+2.000 m... +3.500 m) // Tmin... (Tmax -20 K) 658 hPa... 540 hPa (+3.500 m... +5.000 m)
Bağıl nem
With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation/frost (no commissioning when condensation present), dikey mounting position
Coolants and lubricants
— Resistant to commercially available coolants and lubricantsVar; Incl. diesel ve oil droplets in the air
Use in stationary industrial systems
— to biologically active substances according to EN 60721-3-3Var; Class 3B2 mold, fungus ve dry rot spores (with the exception of fauna); Class 3B3 talep üzerine
— to chemically active substances according to EN 60721-3-3Var; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-3Var; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN 60721-3-6Var; Class 6B2 mold ve fungal spores (excluding fauna); Class 6B3 talep üzerine
— to chemically active substances according to EN 60721-3-6Var; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
— to mechanically active substances according to EN 60721-3-6Var; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN 60654-4Var; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Var; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) ve level LB3 (oil)
Remark
— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086Var; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3Var; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7Var; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal coating, Class A
Operating systems
proprietaryVar
pre-installed operating system
Windows CEYok
Configuration
Message indicatorVar
Alarm system (incl. buffer and acknowledgment)Var
Process value display (output)Var
Process value default (input) possibleVar
Recipe managementVar
Configuration software
STEP 7 Basic (TIA Portal)Var; via dahili WinCC Basic (TIA Portal)
STEP 7 Professional (TIA Portal)Var; via dahili WinCC Basic (TIA Portal)
WinCC flexible CompactYok
WinCC flexible StandardYok
WinCC flexible AdvancedYok
WinCC Basic (TIA Portal)Var
WinCC Comfort (TIA Portal)Var
WinCC Advanced (TIA Portal)Var
WinCC Professional (TIA Portal)Var
Online languages
Number of online/runtime languages10
Project languages
Languages per project32
Functionality under WinCC (TIA Portal)
LibrariesVar
Web browserYok
SIMATIC WinCC Sm@rtServerYok
Number of Visual Basic ScriptsYok
Task plannerVar
time-controlledYok
task-controlledVar
Help systemVar
Number of characters per info text500
Message system
Number of alarm classes32
— Number of bit messages1.000
— Number of analog messages25
S7 alarm number procedureYok
System messages HMIVar
System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Var; System message buffer of the SIMATIC S7-1200 ve S7-1500
Number of characters per message80
Number of process values per message8
Acknowledgment groupsVar
Message indicatorVar
— Number of entries256
— Circulating bufferVar
— retentiveVar
— maintenance-freeVar
Recipe management
Number of recipes50
Data records per recipe100
Entries per data record100
Size of internal recipe memory256 kB
Recipe memory expandableYok
Variables
Number of variables per device800
Number of variables per screen100
Limit valuesVar
MultiplexingVar
StructuresYok
ArraysVar
Images
Number of configurable images250
Permanent window/defaultVar
Global imageVar
Pop-up imagesYok
Slide-in imagesYok
Image selection by PLCVar
Image number in the PLCVar
Image objects
Number of objects per image100
Text fieldsVar
I/O fieldsVar
Graphic I/O fields (graphics list)Var
Symbolic I/O fields (text list)Var
Date/time fieldsVar
SwitchesVar
ButtonsVar
Graphic displayVar
IconsVar
Geometric objectsVar
Complex image objects
Number of complex objects per screen10
Alarm viewVar
Trend viewVar
User viewVar
Status/controlYok
Sm@rtClient viewYok
Recipe viewVar
f(x) trend viewYok
System diagnostics viewVar; System message buffer of the SIMATIC S7-1200 ve S7-1500
Media PlayerYok
HTML browserYok
PDF displayYok
IP camera displayYok
Bar graphsVar
SlidersYok
Pointer instrumentsYok
Analog/digital clockYok
Lists
Number of text lists per project300
Number of entries per text list100
Number of graphics lists per project100
Number of entries per graphics list100
Archiving
Number of archives per device2
Number of entries per archive10.000
Message archiveVar
Process value archiveVar
— Sequential archiveVar
— Short-term archiveVar
— Memory cardYok
— USB memoryVar
— EthernetYok
— CSVYok
— TXTVar
— RDBYok
Security
Number of user groups50
Number of user rights32
Kullanıcı sayısı50
Password export/importVar
SIMATIC LogonYok
Character sets
— US EnglishVar
Transfer (upload/download)
MPI/PROFIBUS DPVar
USBYok
EthernetYok
using external storage mediumVar
Process coupling
S7-1200Var
S7-1500Var
S7-200Var
S7-300/400Var
LOGO!Var
WinACVar
SINUMERIKVar; Yok access to NCK data
SIMOTIONVar
Allen Bradley (EtherNet/IP)Yok
Allen Bradley (DF1)Var
Mitsubishi (MC TCP/IP)Yok
Mitsubishi (FX)Var
OMRON (FINS TCP)Yok
OMRON (Host Link)Var
Modicon (Modbus TCP/IP)Yok
Modicon (Modbus RTU)Var
Service tools/configuration aids
Backup/Restore manuallyVar
Backup/Restore automaticallyYok
SimulationVar
Device switchoverVar
Peripherals/Options
PrinterYok
SIMATIC HMI MM memory card: Multi Media CardYok
SIMATIC HMI SD memory card: Secure Digital memory cardYok
SIMATIC HMI CF memory card Compact Flash CardYok
USB memoryVar
SIMATIC IPC USB Flashdrive (USB stick)Var
SIMATIC HMI USB stickVar
Mechanics/material
PlasticVar
AluminumYok
Stainless steelYok
Ölçüler
Width of the housing front330 mm
Height of housing front245 mm
Mounting cutout, width310 mm
Mounting cutout, height221 mm
mounting depth54,9 mm
Ağırlık
Weight (without packaging)1.710 g
Weight (with packaging)2,2 kg
Aksesuarlar 7
Siemens 6AG1123-2MA03-2AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6AG1055-1FB00-7BA2 | Aksesuar · extension module | |
| 6AG1055-1MA00-7BA2 | Aksesuar · extension module | |
| 6AG1055-1MD00-7BA2 | Aksesuar · extension module | |
| 6AG1055-1MM00-7BA2 | Aksesuar · extension module | |
| 6AG1055-4MH08-2BA1 | Aksesuar · Text display | |
| 6AG1331-6SB00-7AY0 | Aksesuar · #NO_DATA# · #NO_DATA# | |
| 6AG1333-6SB00-7AY0 | Aksesuar · #NO_DATA# · #NO_DATA# |
İlgili Ürünler
Detayları Gör
Siemens
1FN3050-8SA00-0AA0
MFR #1FN3050-8SA00-0AA0
SKU #YLSPEYTCHSLPEPH
Detayları Gör
Siemens
1FN3100-8SA00-0AA0
MFR #1FN3100-8SA00-0AA0
SKU #YLSJZNRPZ4VXXL
Detayları Gör
Siemens
1FN3150-8SA00-0AA0
MFR #1FN3150-8SA00-0AA0
SKU #YLSZOWEGFUAGXOH
Detayları Gör
Siemens
1FN3300-8SA00-0AA0
MFR #1FN3300-8SA00-0AA0
SKU #YLSZMAEBPCROKIZ
Detayları Gör
Siemens
1FN3450-8SA00-0AA0
MFR #1FN3450-8SA00-0AA0
SKU #YLSNONBMS6EF28
Detayları Gör
Siemens
1FN3600-8SA00-0AA0
MFR #1FN3600-8SA00-0AA0
SKU #YLS8CPR47M6DMNJ
Detayları Gör
Siemens
1FN3900-8SA00-0AA0
MFR #1FN3900-8SA00-0AA0
SKU #YLSQEN1CGSWWALU
Detayları Gör
Siemens
1FY2105-0AA00
MFR #1FY2105-0AA00
SKU #YLSGTZWOTRQID
Detayları Gör
Siemens
1FY2105-4AA00
MFR #1FY2105-4AA00
SKU #YLSDLAYIMNHTZJE
Öne Çıkan Ürünler
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Siemens 6AG1123-2MA03-2AX0 fiyatSiemens 6AG1123-2MA03-2AX0 teklif alSiemens 6AG1123-2MA03-2AX0 satın al6AG1123-2MA03-2AX0 fiyat6AG1123-2MA03-2AX0 stok durumuSiemens yedek parçaSiemens 6AG1123-2MA03-2AX0 muadilSiemens 6AG1123-2MA03-2AX0 teknik özellikler
