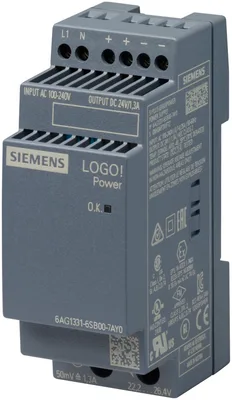

Siemens 6AG1331-6SB00-7AY0

SIPLUS LOGO! güç 24 V 1,3 A based on 6EP3331-6SB00-0AY0 ile conformal coating, -40…+70 °C, başlatma up -25 °C, stabilized güç kaynağı giriş: 100-240 V AC çıkış: 24 V DC/ 1,3 A

SiemensMFR # 6AG1331-6SB00-7AY0SKU # YLSTXFWK2MV9UL

product brand nameSIPLUS

product type designationLOGO!Power

product designationPower supply SIPLUS LOGO!Power

type of current supply24 V/1,3 A

type of the power supply network1-phase AC veya DC

phase number1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIPLUS LOGO! güç 24 V 1,3 A based on 6EP3331-6SB00-0AY0 ile conformal coating, -40…+70 °C, başlatma up -25 °C, stabilized güç kaynağı giriş: 100-240 V AC çıkış: 24 V DC/ 1,3 A

Siemens 6AG1331-6SB00-7AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSIPLUS

product type designationLOGO!Power

product designationPower supply SIPLUS LOGO!Power

type of current supply24 V/1,3 A

manufacturer's article number of the basic version used for SIPLUS product versions6EP3331-6SB00-0AY0

input

type of the power supply network1-phase AC veya DC

phase number1

voltage curve at inputAC/DC

minimum rated value100 V

maximum rated value240 V

initial value85 V

full-scale value264 V

input voltage at DC110... 300 V

at 50 Hz240 V

at 60 Hz100 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum40 ms

operating condition of the mains bufferingVin = 187 V

at rated input voltage 120 V0,7 A

at rated input voltage 230 V0,35 A

current limitation of inrush current at 25 °C maximum25 A

I2t value maximum0,8 A²·s

fuse protection typeinternal

fuse protection type in the feederRecommended miniature circuit breaker: from 6 A characteristic B veya from 2 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage22,2... 26,4 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,1 %

maximum200 mV

typical30 mV

maximum300 mV

typical50 mV

display version for normal operationGreen LED for output voltage OK

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum0,5 s

typical100 ms

rated value1,3 A

rated range0... 1,3 A; +55... +70 °C: Derating 2%/K

supplied active power typical31,2 W

bridging of equipmentVar

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent86 %

at rated output voltage for rated value of the output current typical5 W

during no-load operation maximum0,3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,2 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical1 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

protection and monitoring

design of the overvoltage protection< 60 V

property of the output short-circuit proofVar

design of short-circuit protectionConstant current characteristic

typical1,7 A

when switching on150% Iout rated tipik 200 ms

in normal operationoverload capability 150% Iout rated tipik 200 ms

maximum1,7 A

measuring point for output currentVar; 50 mV =^ 1,3 A

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass II (without protective conductor)

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationnot applicable

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UKCA markingVar

Regulatory Compliance Mark (RCM)Var

MTBF at 40 °C3.094.996 h

ambient conditions

in horizontal mounting position during operation-40; Startup @ -25 °C... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

installation altitude at height above sea level maximum6.000 m

ambient condition relating to ambient temperature - air pressure - installation altitudeIn case of operation altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m veya reduction of the ambient temperature by 5 K/1000 m

relative humidity with condensation according to IEC 60068-2-38 maximum100 %; RH incl. condensation/frost (no commissioning if condensation is present), yatay installation

chemical resistance to commercially available cooling lubricantsVar; incl. diesel ve oil droplets in the air

resistance to biologically active substances conformity according to EN 60721-3-3Var; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request

resistance to chemically active substances conformity according to EN 60721-3-3Var; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-3Var; Class 3S4 incl. sand, dust

resistance to biologically active substances conformity according to EN 60721-3-6Var; Class 6B2 mold, fungal, sponge spores (except fauna)

resistance to chemically active substances conformity according to EN 60721-3-6Var; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3)

resistance to mechanically active substances conformity according to EN 60721-3-6Var; Class 6S3 incl. sand, dust

coating for equipped printed circuit board according to EN 61086Var; Class 2 for high availability

type of coating protection against pollution according to EN 60664-3Var; Type 1 protection

type of test of the coating according to MIL-I-46058CVar; Discoloration of the coating during service life possible

product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AVar; Conformal Coating, Class A

connection method

type of electrical connectionscrew terminal

at inputL, N: 1 screw terminal her biri for 0,5... 2,5 mm2 single-core/finely stranded

at output+, -: 2 screw terminals her biri for 0,5... 2,5 mm²

for auxiliary contacts-

mechanical data

width × height × depth of the enclosure36 × 90 × 53 mm

installation width × mounting height36 mm × 130 mm

top20 mm

bottom20 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions

DIN-rail mountingVar

S7 rail mountingYok

wall mountingVar

housing can be lined upVar

net weight0,12 kg

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
