Siemens 3SU1853-0AA00-0AB1

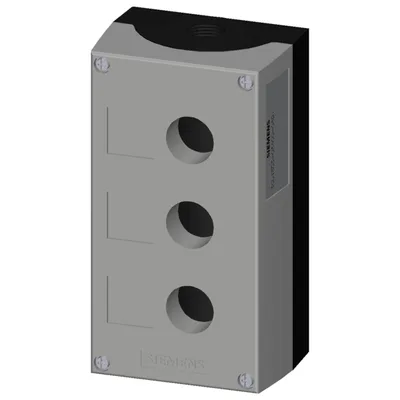

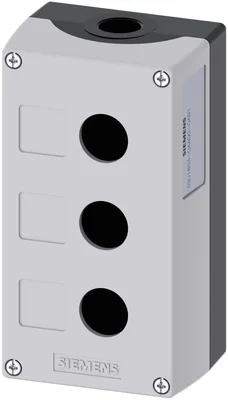

Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 3 control points, without equipment, Recess for labels, floor mounting, 1xM20 each on top and bottom
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
design of the housingwith recess for label
shape of the enclosure frontrectangular
material of the enclosuremetal
Ürün Hakkında
Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 3 control points, without equipment, Recess for labels, floor mounting, 1xM20 each on top and bottom
Siemens 3SU1853-0AA00-0AB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
Enclosure
design of the housingwith recess for label
shape of the enclosure frontrectangular
material of the enclosuremetal
number of command points3
product component protective collarYok
color of the enclosure top partgrey
fastening method of the enclosureVertical / yatay
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight689 g
cable entry typeWithout
Connections/ Terminals
type of electrical connection on enclosureCable routing above ve below, both 1 x M20
tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height158,4 mm
width85 mm
depth64 mm
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Aksesuarlar 13
Siemens 3SU1853-0AA00-0AB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0JQ10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-2BG60-1AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0AF16-0QB0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0AF16-0QA0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0AF16-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1051-6AA60-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1050-0AB20-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1400-2AA10-1CA0 | Bileşen · Commanding and signaling devices | |
| 3SU1400-2AA10-1BA0 | Bileşen · Commanding and signaling devices | |
| 3SU1853-0AA00-0AB1 | Bileşen · Commanding and signaling devices | |
| 3SU1050-0AB40-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
