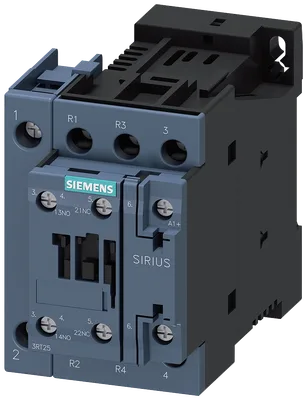

Siemens 3RT2526-1BG40

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3RT2526-1BG40

güç kontaktör, AC-3, 25 A, 11 kW / 400 V, 4-pole, 125 V DC, main contacts: 2 NO + 2 NC, yardımcı contacts: 1 NO + 1 NC, vidalı klemens, boyut: S0

SiemensMFR # 3RT2526-1BG40SKU # CEY-8EF3B03935E7
product brand nameSIRIUS
product designationcontactor
product type designation3RT25
size of contactorS0
function module for communicationYok
auxiliary switchVar
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

güç kontaktör, AC-3, 25 A, 11 kW / 400 V, 4-pole, 125 V DC, main contacts: 2 NO + 2 NC, yardımcı contacts: 1 NO + 1 NC, vidalı klemens, boyut: S0

Siemens 3RT2526-1BG40

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS
product designationcontactor
product type designation3RT25
General technical data
size of contactorS0
function module for communicationYok
auxiliary switchVar
at AC in hot operating state per pole1,9 W
without load current share typical5,9 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value690 V
of auxiliary circuit with degree of pollution 3 rated value690 V
of main circuit rated value6 kV
of auxiliary circuit rated value6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V
at DC10g / 5 ms, 7,5g / 10 ms
at DC15 g / 5 ms, 10 g / 10 ms
of contactor typical10.000.000
of the contactor with added electronically optimized auxiliary switch block typical5.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
Net Weight639,5 g
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit4
number of NO contacts for main contacts2
number of NC contacts for main contacts2
— at ambient temperature 40 °C rated value40 A
— at ambient temperature 60 °C rated value35 A
— per NO contact rated value25 A
— per NC contact rated value20 A
minimum cross-section in main circuit at maximum AC-1 rated value10 mm²
— at 24 V rated value35 A
— at 110 V rated value4,5 A
— at 220 V rated value1 A
— at 440 V rated value0,4 A
— at 24 V rated value35 A
— at 110 V rated value35 A
— at 220 V rated value5 A
— at 440 V rated value1 A
— at 24 V per NC contact rated value20 A
— at 24 V per NO contact rated value20 A
— at 110 V per NC contact rated value1,25 A
— at 110 V per NO contact rated value2,5 A
— at 220 V per NC contact rated value0,5 A
— at 220 V per NO contact rated value1 A
— at 440 V per NC contact rated value0,045 A
— at 440 V per NO contact rated value0,09 A
— at 24 V per NC contact rated value35 A
— at 24 V per NO contact rated value35 A
— at 110 V per NC contact rated value7,5 A
— at 110 V per NO contact rated value15 A
— at 220 V per NC contact rated value1,5 A
— at 220 V per NO contact rated value3 A
— at 440 V per NC contact rated value0,135 A
— at 440 V per NO contact rated value0,27 A
at 230 V per NC contact rated value5,5 kW
at 230 V per NO contact rated value5,5 kW
at 400 V per NC contact rated value7,5 kW
at 400 V per NO contact rated value11 kW
limited to 1 s switching at zero current maximum200 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum200 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum200 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum128 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum106 A; Use minimum cross-section acc. to AC-1 rated value
power loss [W] at AC-3 at 400 V for rated value of the operational current per conductor1,9 W
power loss [W] at AC-3e at 400 V for rated value of the operational current per conductor1,9 W
at AC5.000 1/h
at DC1.500 1/h
at AC-1 maximum1.000 1/h
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value125 V
initial value0,8
full-scale value1,1
closing power of magnet coil at DC5,9 W
holding power of magnet coil at DC5,9 W
at DC50... 170 ms
at DC15... 18 ms
arcing time10 ms
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
operational current at AC-12 maximum10 A
at 230 V rated value10 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value1 A
at 24 V rated value10 A
at 48 V rated value6 A
at 60 V rated value6 A
at 110 V rated value3 A
at 125 V rated value2 A
at 220 V rated value1 A
at 600 V rated value0,15 A
at 24 V rated value10 A
at 48 V rated value2 A
at 60 V rated value2 A
at 110 V rated value1 A
at 125 V rated value0,9 A
at 220 V rated value0,3 A
at 600 V rated value0,1 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
for single-phase AC motor at 230 V rated value3 hp
for 3-phase AC motor at 460/480 V rated value15 hp
contact rating of auxiliary contacts according to ULA600 / Q600
UL File Number (CCN)E31519 (NLDX, NLDX7)
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
— with type of coordination 1 requiredgG: 63 A (690 V, 100 kA)
— with type of coordination 2 requiredgG: 35 A (690 V, 50 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)
Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening method side-by-side mountingVar
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
height85 mm
width61 mm
depth107 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side6 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side6 mm
Connections/ Terminals
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
— solid2x (1... 2,5 mm²), 2x (2,5... 10 mm²)
— solid or stranded2x (1... 2,5 mm²), 2x (2,5... 10 mm²)
— finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²
for AWG cables for main contacts2x (16... 12), 2x (14... 8)
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)
AWG number as coded connectable conductor cross section for main contacts16... 8
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing2,65 kg
global warming potential [CO2 eq] / during operation219 kg
global warming potential [CO2 eq] / after end of life-0.639 kg
global warming potential [CO2 eq] / total221 kg
