Siemens 3RT1373-6AP36 için nasıl fiyat teklifi alabilirim?

Siemens 3RT1373-6AP36 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSNVJZ2U4RSIEK ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RT1373-6AP36 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RT1373-6AP36 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RT1373-6AP36 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

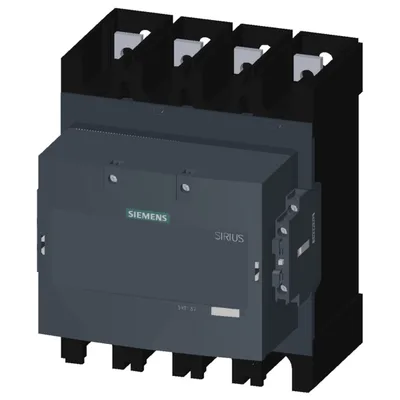

Siemens 3RT1373-6AP36

kontaktör, AC-1, 400 A/400 V/40 °C, S12, 4-pole, 100-250 V AC/DC, 2 NO+2 NC, bağlantı rail/ vidalı klemens

SiemensMFR # 3RT1373-6AP36SKU # YLSNVJZ2U4RSIEK

product brand nameSIRIUS

product designationContactor

product type designation3RT13

size of contactorS12

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

kontaktör, AC-1, 400 A/400 V/40 °C, S12, 4-pole, 100-250 V AC/DC, 2 NO+2 NC, bağlantı rail/ vidalı klemens

Siemens 3RT1373-6AP36

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationContactor

product type designation3RT13

General technical data

size of contactorS12

function module for communicationYok

auxiliary switchVar

at AC in hot operating state128 W

at AC in hot operating state per pole32 W

without load current share typical4,5 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1.000 V

of the auxiliary and control circuit with degree of pollution 3 rated value690 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/27/2017

Net Weight6,467 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-40... +60 °C

during storage-40... +70 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit4

number of NO contacts for main contacts4

type of voltage for main current circuitAC

at AC-1 at 400 V at ambient temperature 40 °C rated value400 A

— up to 690 V at ambient temperature 40 °C rated value400 A

— up to 690 V at ambient temperature 60 °C rated value350 A

— up to 1000 V at ambient temperature 40 °C rated value350 A

— up to 1000 V at ambient temperature 60 °C rated value300 A

— at 400 V rated value265 A

minimum cross-section in main circuit at maximum AC-1 rated value240 mm²

at AC-3 at 400 V rated value132 kW

at AC300 1/h

at DC300 1/h

Control circuit/ Control

type of voltageAC

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value100... 250 V

at 60 Hz rated value100... 250 V

control supply voltage at DC rated value100... 250 V

initial value0,8

full-scale value1,1

at 50 Hz0,85... 1,1

at 60 Hz0,85... 1,1

design of the surge suppressorwith varistor

at 50 Hz385 V·A

at 60 Hz385 V·A

at 50 Hz17,5 V·A

at 60 Hz17,5 V·A

closing power of magnet coil at DC410 W

holding power of magnet coil at DC4,5 W

at AC30... 60 ms

at DC30... 60 ms

at AC45... 80 ms

at DC45... 80 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts2

attachable2

instantaneous contact2

number of NO contacts for auxiliary contacts2

attachable2

instantaneous contact2

at 230 V rated value4 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value2 A

at 24 V rated value3 A

at 48 V rated value1,5 A

at 110 V rated value0,55 A

at 125 V rated value0,55 A

at 220 V rated value0,3 A

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / Q300

Short-circuit protection

— with type of coordination 2 requiredgG: 630 A (500 V, 100 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

Installation/ mounting/ dimensions

mounting positionFor dikey mounting surface can be rotated +/-180°, ve with 0° rotation can be tilted forward veya backward +/- 30°, veya standing

fastening method side-by-side mountingVar

fastening methodscrew fixing

height225 mm

width184 mm

depth180 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

net weight6,5 kg

Connections/ Terminals

for main current circuitConnection bar

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

solid or stranded1... 4 mm²

finely stranded with core end processing0,75... 2,5 mm²

— solid1x (1... 4mm²), 2x (1... 4mm²)

— solid or stranded1x (1... 4mm²), 2x (1... 4mm²)

— finely stranded with core end processing1x (0,75... 2,5 mm²), 2x (0,75... 2,5 mm²)

for AWG cables for auxiliary contacts1x (AWG 18... 14), 2x (AWG 18... 14)

AWG number as coded connectable conductor cross section for auxiliary contacts18... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover

Communication/ Protocol

product function bus communicationYok

Aksesuarlar 6

Siemens 3RT1373-6AP36 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA1954-3A	Aksesuar · Mechanical interlocks · mechanical interlocks
3RH1951-1SA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1951-1TA11	Aksesuar · Auxiliary switch · auxiliary switches
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
