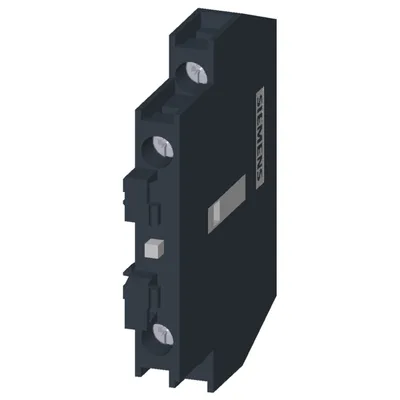

Siemens 3RH1951-1SA11

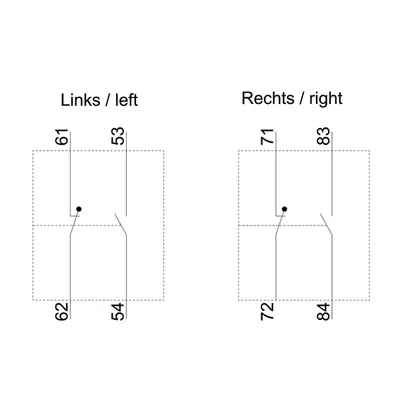

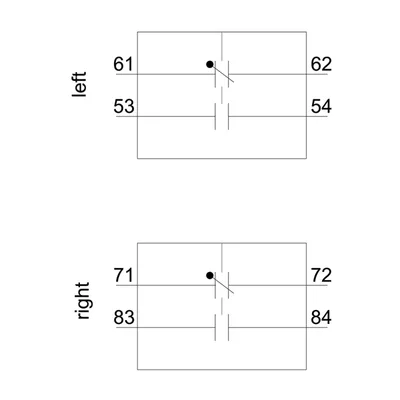

ek yardımcı kontak block için 3RT135, 3RT136, 3RT137 1 NC 1 NO, can be mounted on the side, vidalı klemens
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productsecond can be mounted laterally
product type designation3RH19
suitability for usefor 3RT135, 3RT136, 3RT137
Ürün Hakkında
ek yardımcı kontak block için 3RT135, 3RT136, 3RT137 1 NC 1 NO, can be mounted on the side, vidalı klemens
Siemens 3RH1951-1SA11
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productsecond can be mounted laterally
product type designation3RH19
suitability for usefor 3RT135, 3RT136, 3RT137
General technical data
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
protection class IP on the frontIP20
Substance Prohibitance (day/month/year)03/27/2017
Net Weight0,043 kg
instantaneous contact1
lagging switching0
instantaneous contact1
leading contact0
number of CO contacts of auxiliary contacts instantaneous contact0
operational current at AC-15 at 690 V rated value2 A
at 24 V6 A
at 230 V4 A
at 400 V3 A
at 24 V3 A
at 48 V1,5 A
at 60 V1 A
at 110 V0,55 A
at 125 V0,55 A
at 220 V0,3 A
at 250 V0,3 A
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
Ambient conditions
during operation-40... +60 °C
during storage-40... +70 °C
Safety related data
mirror contact according to IEC 60947-4-1Var; with 3RT135, 3RT136, 3RT137
positively driven operation according to IEC 60947-5-1Yok
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
design of the fuse link for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

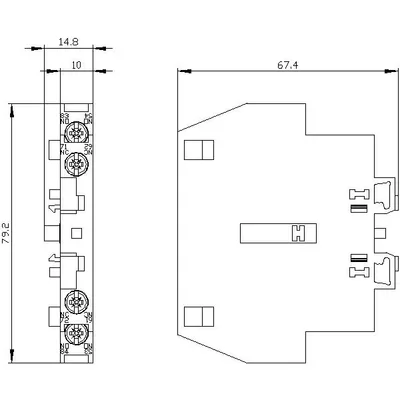

Installation/ mounting/ dimensions
fastening methodsnap-on mounting
height79 mm
width10 mm
depth67 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
solid or stranded1... 4 mm²
finely stranded with core end processing0,75... 2,5 mm²
— solid1x (1... 4mm²), 2x (1... 4mm²)
— solid or stranded1x (1... 4mm²), 2x (1... 4mm²)
— finely stranded with core end processing1x (0,75... 2,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts1x (AWG 18... 14), 2x (AWG 18... 14)
AWG number as coded connectable conductor cross section for auxiliary contacts18... 14
