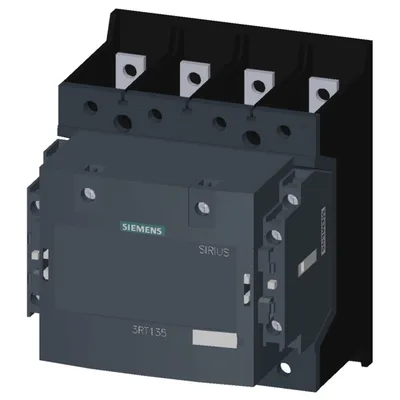

Siemens 3RT1355-6AF36
kontaktör, AC-1, 200 A/400 V/40 °C, S6, 4-pole, 48-130 V AC/DC, 2 NO+2 NC, bağlantı rail/ vidalı klemens
product brand nameSIRIUS
product designationContactor
product type designation3RT13
size of contactorS6
function module for communicationYok
auxiliary switchVar
Ürün Hakkında
kontaktör, AC-1, 200 A/400 V/40 °C, S6, 4-pole, 48-130 V AC/DC, 2 NO+2 NC, bağlantı rail/ vidalı klemens
Siemens 3RT1355-6AF36
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationContactor
product type designation3RT13
General technical data
size of contactorS6
function module for communicationYok
auxiliary switchVar
at AC in hot operating state54 W
at AC in hot operating state per pole18 W
without load current share typical2,5 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value1.000 V
of the auxiliary and control circuit with degree of pollution 3 rated value690 V
of main circuit rated value8 kV
of auxiliary circuit rated value6 kV
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)03/27/2017
Net Weight1,891 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-40... +60 °C
during storage-40... +70 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit4
number of NO contacts for main contacts4
type of voltage for main current circuitAC
at AC-1 at 400 V at ambient temperature 40 °C rated value200 A
— up to 690 V at ambient temperature 40 °C rated value200 A
— up to 690 V at ambient temperature 60 °C rated value175 A
— at 400 V rated value140 A
minimum cross-section in main circuit at maximum AC-1 rated value95 mm²
at AC-3 at 400 V rated value75 kW
at AC300 1/h
at DC300 1/h
Control circuit/ Control
type of voltageAC
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value48... 130 V
at 60 Hz rated value48... 130 V
control supply voltage at DC rated value48... 130 V
initial value0,8
full-scale value1,1
at 50 Hz0,85... 1,1
at 60 Hz0,85... 1,1
design of the surge suppressorwith varistor
at 50 Hz170 V·A
at 60 Hz170 V·A
at 50 Hz4 V·A
at 60 Hz4 V·A
closing power of magnet coil at DC130 W
holding power of magnet coil at DC2,5 W
at AC20... 55 ms
at DC20... 55 ms
at AC40... 70 ms
at DC40... 70 ms
control version of the switch operating mechanismStandard A1 - A2
Auxiliary circuit
number of NC contacts for auxiliary contacts2
attachable2
instantaneous contact2
number of NO contacts for auxiliary contacts2
attachable2
instantaneous contact2
at 230 V rated value4 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value2 A
at 24 V rated value3 A
at 48 V rated value1,5 A
at 110 V rated value0,55 A
at 125 V rated value0,55 A
at 220 V rated value0,3 A
UL/CSA ratings
contact rating of auxiliary contacts according to ULA600 / Q300
Short-circuit protection
— with type of coordination 2 requiredgG: 250 A (500 V, 100 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)
Installation/ mounting/ dimensions
mounting positionFor dikey mounting surface can be rotated +/-180°, ve with 0° rotation can be tilted forward veya backward +/- 30°, veya standing
fastening method side-by-side mountingVar
fastening methodscrew fixing
height150 mm
width120 mm
depth128 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards20 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
— forwards20 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
net weight1,75 kg
Connections/ Terminals
for main current circuitConnection bar
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
solid or stranded1... 4 mm²
finely stranded with core end processing0,75... 2,5 mm²
— solid1x (1... 4mm²), 2x (1... 4mm²)
— solid or stranded1x (1... 4mm²), 2x (1... 4mm²)
— finely stranded with core end processing1x (0,75... 2,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts1x (AWG 18... 14), 2x (AWG 18... 14)
AWG number as coded connectable conductor cross section for auxiliary contacts18... 14
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
Electrical Safety
protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover
Communication/ Protocol
product function bus communicationYok
Aksesuarlar 6
Siemens 3RT1355-6AF36 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RA1954-3A | Aksesuar · Mechanical interlocks · mechanical interlocks | |
| 3RH1951-1SA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH1951-1TA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates |
