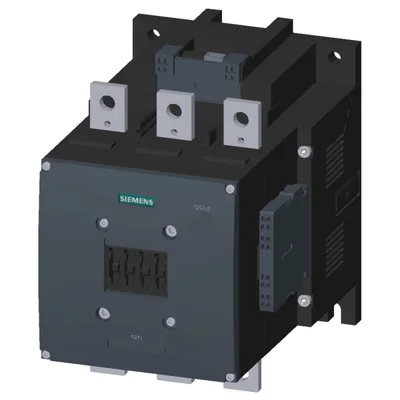

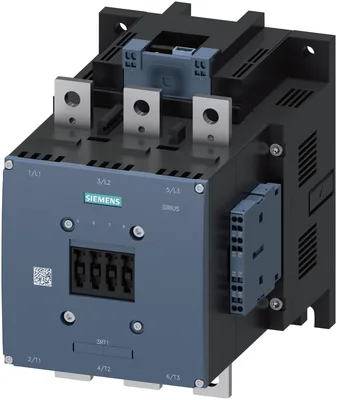

Siemens 3RT1075-2NB36

power contactor, AC-3e/AC-3 400 A, 200 kW / 400 V AC (50-60 Hz) / DC Uc: 21-27, 3 V PLC input 24 V DC 3-pole, auxiliary contacts 2 NO + 2 NC drive: electronic main circuit: busbar control and auxiliary circuit: spring-loaded terminal

SiemensMFR # 3RT1075-2NB36SKU # CEY-8EF3B0393B6F

product brand nameSIRIUS

product designationPower contactor

product type designation3RT1

size of contactorS12

function module for communicationYok

auxiliary switchVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RT1075-2NB36

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationPower contactor

product type designation3RT1

General technical data

size of contactorS12

function module for communicationYok

auxiliary switchVar

at AC in hot operating state105 W

at AC in hot operating state per pole35 W

without load current share typical3,6 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value1.000 V

of auxiliary circuit with degree of pollution 3 rated value500 V

of main circuit rated value8 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V

at AC8,5 g / 5 ms, 4,2 g / 10 ms

at DC8,5 g / 5 ms, 4,2 g / 10 ms

at AC13,4 g / 5 ms, 6,5 g / 10 ms

at DC13,4 g / 5 ms, 6,5 g / 10 ms

of contactor typical10.000.000

of the contactor with added electronically optimized auxiliary switch block typical5.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight9,159 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum1.000 V

at AC-3e rated value maximum1.000 V

at AC-1 at 400 V at ambient temperature 40 °C rated value430 A

— up to 690 V at ambient temperature 40 °C rated value430 A

— up to 690 V at ambient temperature 60 °C rated value400 A

— up to 1000 V at ambient temperature 40 °C rated value200 A

— up to 1000 V at ambient temperature 60 °C rated value200 A

— at 400 V rated value400 A

— at 500 V rated value400 A

— at 690 V rated value400 A

— at 1000 V rated value180 A

— at 400 V rated value400 A

— at 500 V rated value400 A

— at 690 V rated value400 A

— at 1000 V rated value180 A

at AC-4 at 400 V rated value350 A

at AC-5a up to 690 V rated value378 A

at AC-5b up to 400 V rated value332 A

— up to 230 V for current peak value n=20 rated value395 A

— up to 400 V for current peak value n=20 rated value395 A

— up to 500 V for current peak value n=20 rated value395 A

— up to 690 V for current peak value n=20 rated value395 A

— up to 1000 V for current peak value n=20 rated value180 A

— up to 230 V for current peak value n=30 rated value264 A

— up to 400 V for current peak value n=30 rated value264 A

— up to 500 V for current peak value n=30 rated value264 A

— up to 690 V for current peak value n=30 rated value264 A

— up to 1000 V for current peak value n=30 rated value180 A

minimum cross-section in main circuit at maximum AC-1 rated value300 mm²

at 400 V rated value150 A

at 690 V rated value135 A

— at 24 V rated value400 A

— at 60 V rated value330 A

— at 110 V rated value33 A

— at 220 V rated value3,8 A

— at 440 V rated value0,9 A

— at 600 V rated value0,6 A

— at 24 V rated value400 A

— at 60 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value4 A

— at 600 V rated value2 A

— at 24 V rated value400 A

— at 60 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value11 A

— at 600 V rated value5,2 A

— at 24 V rated value400 A

— at 60 V rated value11 A

— at 220 V rated value0,6 A

— at 440 V rated value0,18 A

— at 600 V rated value0,125 A

— at 24 V rated value400 A

— at 60 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value2,5 A

— at 440 V rated value0,65 A

— at 600 V rated value0,37 A

— at 24 V rated value400 A

— at 60 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value1,4 A

— at 600 V rated value0,75 A

— at 230 V rated value132 kW

— at 400 V rated value200 kW

— at 500 V rated value250 kW

— at 690 V rated value400 kW

— at 1000 V rated value250 kW

— at 230 V rated value132 kW

— at 400 V rated value200 kW

— at 500 V rated value250 kW

— at 690 V rated value400 kW

— at 1000 V rated value250 kW

at 400 V rated value85 kW

at 690 V rated value133 kW

up to 230 V for current peak value n=20 rated value150 kVA

up to 400 V for current peak value n=20 rated value270 kVA

up to 500 V for current peak value n=20 rated value340 kVA

up to 690 V for current peak value n=20 rated value470 kVA

up to 1000 V for current peak value n=20 rated value310 kVA

up to 230 V for current peak value n=30 rated value100 kVA

up to 400 V for current peak value n=30 rated value180 kVA

up to 500 V for current peak value n=30 rated value220 kVA

up to 690 V for current peak value n=30 rated value310 kVA

up to 1000 V for current peak value n=30 rated value310 kVA

limited to 1 s switching at zero current maximum6.600 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum5.761 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum4.143 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum2.635 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum2.088 A; Use minimum cross-section acc. to AC-1 rated value

at AC1.000 1/h

at DC1.000 1/h

at AC-1 maximum700 1/h

at AC-2 maximum200 1/h

at AC-3 maximum500 1/h

— maximum500 1/h

at AC-4 maximum130 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value21... 27,3 V

at 60 Hz rated value21... 27,3 V

control supply voltage at DC rated value21... 27,3 V

initial value0,8

full-scale value1,1

at 50 Hz0,8... 1,1

at 60 Hz0,8... 1,1

type of PLC-control input according to IEC 60947-1Type 2

consumed current at PLC-control input according to IEC 60947-1 maximum20 mA

voltage at PLC-control input rated value24 V

operating range factor of the voltage at PLC-control input0,8... 1,1

design of the surge suppressorwith varistor

— at 50 Hz560 V·A

— at 60 Hz560 V·A

— at 60 Hz750 V·A

— at 50 Hz750 V·A

at 50 Hz750 V·A

at 60 Hz750 V·A

at 50 Hz0,8

at 60 Hz0,8

at minimum rated control supply voltage at DC3 V·A

at maximum rated control supply voltage at DC3,6 V·A

— at 50 Hz5,6 V·A

— at 60 Hz5,6 V·A

— at 50 Hz9 V·A

— at 60 Hz9 V·A

at 50 Hz0,5

at 60 Hz0,4

closing power of magnet coil at DC800 W

holding power of magnet coil at DC3,6 W

at AC60... 90 ms

at DC60... 90 ms

at AC80... 100 ms

at DC80... 100 ms

arcing time10... 15 ms

control version of the switch operating mechanismPLC-IN veya Standard A1 - A2 (adjustable)

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact2

number of NO contacts for auxiliary contacts instantaneous contact2

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0,15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0,9 A

at 220 V rated value0,3 A

at 600 V rated value0,1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value361 A

at 600 V rated value382 A

— at 200/208 V rated value125 hp

— at 220/230 V rated value150 hp

— at 460/480 V rated value300 hp

— at 575/600 V rated value400 hp

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

— with type of coordination 1 requiredgG: 630 A (690 V, 100 kA)

— with type of coordination 2 requiredgG: 500 A (690 V, 100 kA), aM: 400 A (690 V, 50 kA), BS88: 450 A (415 V, 50 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting positionwith dikey mounting surface +/-90° rotatable, with dikey mounting surface +/- 22,5° tiltable to the front ve back

fastening method side-by-side mountingVar

fastening methodscrew fixing

height214 mm

width160 mm

depth225 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards20 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards20 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitConnection bar

for auxiliary and control circuitspring-loaded terminals

at contactor for auxiliary contactsSpring-type terminals

of magnet coilSpring-loaded terminal

width of connection bar25 mm

thickness of connection bar6 mm

diameter of holes11 mm

number of holes1

for AWG cables for main contacts2/0... 500 kcmil

stranded70... 240 mm²

solid or stranded0,25... 2,5 mm²

finely stranded with core end processing0,25... 1,5 mm²

finely stranded without core end processing0,25... 2,5 mm²

— solid2x (0,25... 2,5 mm²)

— solid or stranded2x (0,25... 2,5 mm²)

— finely stranded with core end processing2x (0,25... 1,5 mm²)

— finely stranded without core end processing2x (0,25... 2,5 mm²)

for AWG cables for auxiliary contacts2x (24... 14)

AWG number as coded connectable conductor cross section for auxiliary contacts24... 14

Safety related data

mirror contact according to IEC 60947-4-1Var

positively driven operation according to IEC 60947-5-1Yok

suitable for safety functionVar

suitability for use safety-related switching OFFVar; safety-related disconnection via A1 A2

service life maximum20 a

test wear-related service life necessaryVar

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201.000.000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryVar

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover

Aksesuarlar 33

Siemens 3RT1075-2NB36 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RH1921-2CA01	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-2DA11	Aksesuar · Auxiliary switch · auxiliary switches
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RA1954-2A	Aksesuar · Mechanical interlocks · mechanical interlocks
3RT1966-4BA31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RA1972-2A	Aksesuar · Base plates · base plates
3RA1972-2E	Aksesuar · Base plates · base plates
3RA1972-2F	Aksesuar · Base plates · base plates
3RA1973-3E	Aksesuar · Wiring modules, connectors and kits · link rails
3RH1921-2EE02	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-2JA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-2JE11	Aksesuar · Auxiliary switch · auxiliary switches
3RT1916-4JA02	Aksesuar · Miscellaneous accessories · insulation stops
3RT1926-4MA10	Aksesuar · Sealing covers · sealing covers
3RA1973-2A	Aksesuar · Wiring modules, connectors and kits · link rails
3RA1973-2B	Aksesuar · Wiring modules, connectors and kits · link rails
3RT1955-4PA00	Aksesuar · Terminal covers · connection methods
3RH1921-2EA02	Aksesuar · Auxiliary switch · auxiliary switches
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RH1921-2EA20	Aksesuar · Auxiliary switch · auxiliary switches
3RT1956-1CB02	Aksesuar · Surge suppressor · RC elements
3RH1921-2KA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-2KA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-2DE11	Aksesuar · Auxiliary switch · auxiliary switches
3RT2926-1QT00	Aksesuar · LED modules · LED display indicator modules
3RH1921-2CA10	Aksesuar · Auxiliary switch · auxiliary switches
3RH1921-2XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RT1955-4NQ02	Yedek parça · Terminal covers · plugs
3RT1975-7A	Yedek parça · Arc chutes · arc chutes
3RT1975-6A	Yedek parça · Contact pieces and vacuum interrupters · contacts
3RT1975-5NB32	Yedek parça · Solenoid coils · solenoid coils

İlgili Ürünler

Detayları Gör

Siemens

1EE1122-..A00-...4

MFR #1EE1122-..A00-...4

SKU #YLS3FGFZLYE3EV8

Detayları Gör

Siemens

1EE1124-..A00-...4

MFR #1EE1124-..A00-...4

SKU #YLSKZIN1GEIPRVP

Detayları Gör

Siemens

1EE1142-..A00-...4

MFR #1EE1142-..A00-...4

SKU #YLSUX3MNEZEJGPU

Detayları Gör

Siemens

1EE1144-..A00-...4

MFR #1EE1144-..A00-...4

MFR #1EE1324-..A00-...4

MFR #VQZ2121-5LO1-N3T

SKU #YLSEL35MGGQ9FOL

İlgili Aramalar

Siemens 3RT1075-2NB36 fiyatSiemens 3RT1075-2NB36 teklif alSiemens 3RT1075-2NB36 satın al3RT1075-2NB36 fiyat3RT1075-2NB36 stok durumuSiemens yedek parçaSiemens 3RT1075-2NB36 muadilSiemens 3RT1075-2NB36 teknik özellikler

Çerez Kullanımı

Siemens 3RT1075-2NB36

Ürün Hakkında

Siemens 3RT1075-2NB36

Teknik Özellikler

Aksesuarlar 33

İlgili Ürünler

1EE1122-..A00-...4

1EE1124-..A00-...4

1EE1142-..A00-...4

1EE1144-..A00-...4

1EE1322-....0-...4

1EE1322-...00-1..2

1EE1322-..A00-...4

1EE1324-....0-...4

1EE1324-...00-1..2

1EE1324-..A00-...4

Öne Çıkan Ürünler

ZCUKQ25-50D

CM2B40-75Z

MXS-AS16L

MY1M20-200AH

MXQ25L-40B-M9NZ

AW20-N02CG-6CZ-B

SY5420-5DZ-01

MGPL25TN-200BZ-XC9

AL30-03-8-A

VQZ2121-5LO1-N3T

İlgili Aramalar
