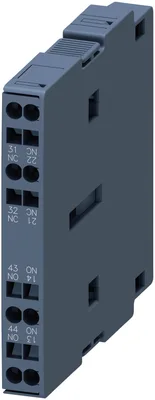

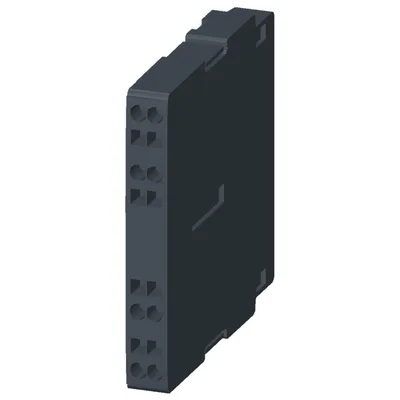

Siemens 3RH1921-2DE11

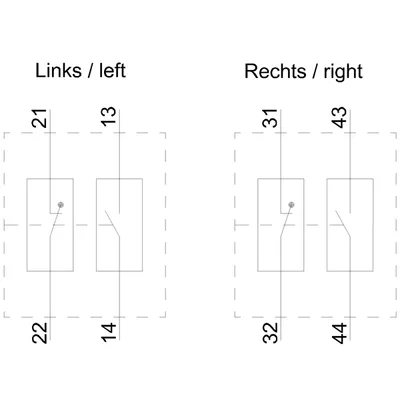

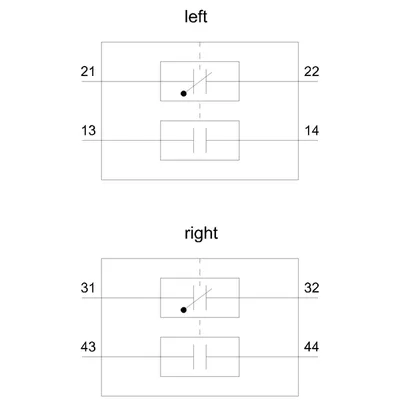

first lateral auxiliary switch 1 NO, 1 NC, encapsulated (solid-state compatible), spring-type terminal, for contactors 3RT1
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productfirst laterally mountable
product type designation3RH19
suitability for usefor 3RT10, 3RT12, 3RT145, 3RT146, 3RT147
Ürün Hakkında
first lateral auxiliary switch 1 NO, 1 NC, encapsulated (solid-state compatible), spring-type terminal, for contactors 3RT1
Siemens 3RH1921-2DE11
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryAuxiliary switch
product designationauxiliary switch
design of the productfirst laterally mountable
product type designation3RH19
suitability for usefor 3RT10, 3RT12, 3RT145, 3RT146, 3RT147
General technical data
insulation voltage with degree of pollution 3 at AC rated value500 V
surge voltage resistance rated value6 kV
protection class IP on the frontIP20
mechanical service life (operating cycles) typical5.000.000
Substance Prohibitance (day/month/year)03/01/2017
Net Weight49,58 g
instantaneous contact1
instantaneous contact1
number of CO contacts of auxiliary contacts instantaneous contact0
at 24 V10 A
at 110 V3 A
at 220 V1 A
at 24 V0,3 A
at 48 V0,3 A
at 60 V0,3 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
Ambient conditions
during operation-25... +60 °C
during storage-55... +80 °C
Safety related data
mirror contact according to IEC 60947-4-1Var; with 3RT1
positively driven operation according to IEC 60947-5-1Yok
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredFF microfuse 2 A (250 V, 1 kA)

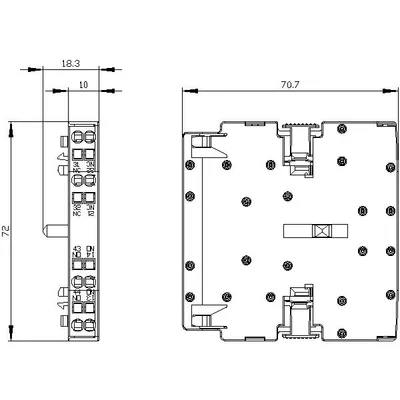

Installation/ mounting/ dimensions
fastening methodsnap-on mounting
height72,5 mm
width10 mm
depth71 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitspring-loaded terminals
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²)
— finely stranded without core end processing2x (0,5... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
