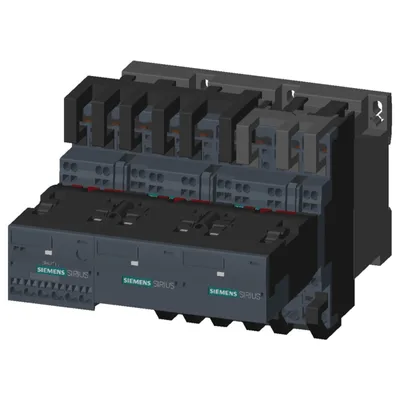

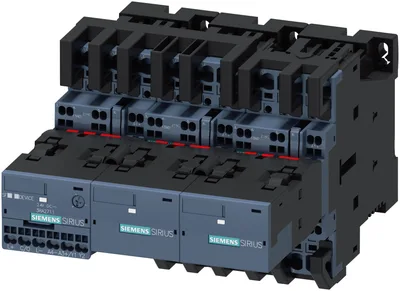

Siemens 3RA2425-8XE32-2BB4
cont. ass. f. star-delta (wye-delta) start, I/O-Link AC-3, 15/18.5 kW/400 V, 24 V DC 3-pole, size S0 Spring-type terminals electrical and mechanical interlock 3 NO + 3 NC integrated
product brand nameSIRIUS
product type designation3RA24
1 of the supplied contactor3RT2026-2BB40-0CC0
2 of the supplied contactor3RT2026-2BB40
3 of the supplied contactor3RT2024-2BB40
of the supplied RS assembly kit3RA2923-2BB2
Ürün Hakkında
cont. ass. f. star-delta (wye-delta) start, I/O-Link AC-3, 15/18.5 kW/400 V, 24 V DC 3-pole, size S0 Spring-type terminals electrical and mechanical interlock 3 NO + 3 NC integrated
Siemens 3RA2425-8XE32-2BB4
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationContactor assembly for star-delta (wye-delta) start
product type designation3RA24
1 of the supplied contactor3RT2026-2BB40-0CC0
2 of the supplied contactor3RT2026-2BB40
3 of the supplied contactor3RT2024-2BB40
of the supplied RS assembly kit3RA2923-2BB2
of the supplied function module for communication3RA2711-2CA00
General technical data
size of contactorS0
product extension auxiliary switchYok
at AC7,5 g / 5 ms, 4,7 g / 10 ms
at DC10g / 5 ms, 7,5g / 10 ms
at AC11,8 g / 5 ms, 7,4 g / 10 ms
at DC15 g / 5 ms, 10 g / 10 ms
of contactor typical10.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight2,614 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum690 V
— at 400 V rated value40 A
— at 400 V rated value15 kW
— at 500 V rated value19 kW
— at 690 V rated value19 kW
at AC-3 maximum1.000 1/h
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage 1 at DC rated value24 V
closing power of magnet coil at DC13,8 W
holding power of magnet coil at DC13,8 W
Auxiliary circuit
instantaneous contact3
instantaneous contact3
contact reliability of auxiliary contacts< 1 error per 100 million operating cycles
UL/CSA ratings
contact rating of auxiliary contacts according to ULA600 / Q600
Short-circuit protection
— with type of coordination 1 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 100 A
— with type of coordination 2 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A
for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A

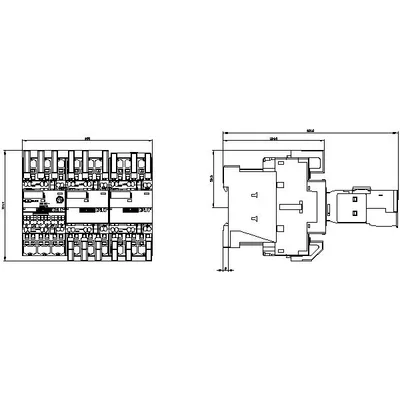

Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height114 mm
width135 mm
depth181 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— downwards6 mm
— at the side6 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— at the side6 mm
— downwards6 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— downwards6 mm
— at the side6 mm
Connections/ Terminals
for main current circuitspring-loaded terminals
for auxiliary and control circuitspring-loaded terminals
at contactor for auxiliary contactsSpring-type terminals
of magnet coilSpring-loaded terminal
solid2x (1... 10 mm²)
solid or stranded2x (1... 10 mm²)
finely stranded with core end processing2x (1... 6 mm²)
finely stranded without core end processing2x (1... 6 mm²)
— solid or stranded2x (0,5... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²)
— finely stranded without core end processing2x (0,5... 1,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
Safety related data
product function suitable for safety functionVar
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Communication/ Protocol
product function bus communicationYok
protocol is supported AS-Interface protocolYok
product function control circuit interface with IO linkVar
Aksesuarlar 11
Siemens 3RA2425-8XE32-2BB4 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RV2925-5AB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RH2911-2DE11-Z | Aksesuar | |
| 3RH2911-2DA11-Z | Aksesuar | |
| 3RH2916-2DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DE11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DE11 | Aksesuar · Auxiliary switch · auxiliary switches |
