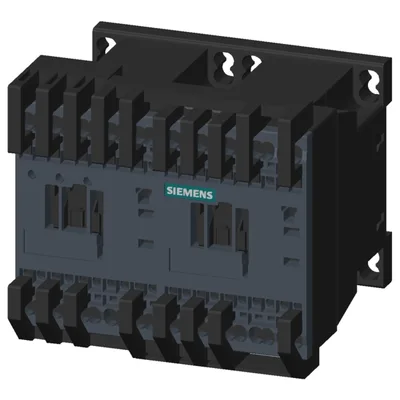

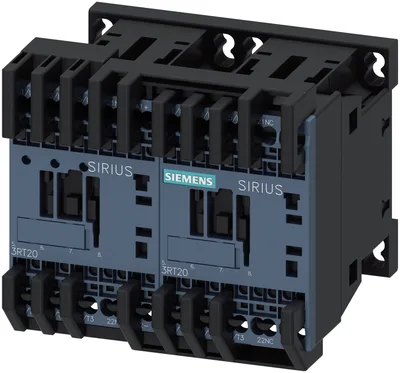

Siemens 3RA2315-8XE30-2BB4
reversing kontaktör assembly, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V DC, yaylı klemens, electrical ve mechanical interlock, ile gerilim tap için 3RA27
product brand nameSIRIUS
product designationReversing contactor assembly
product type designation3RA23
1 of the supplied contactor3RT2015-2BB42-0CC0
2 of the supplied contactor3RT2015-2BB42
of the supplied RH assembly kit3RA2913-2AA2
Ürün Hakkında
reversing kontaktör assembly, AC-3e/AC-3, 7 A, 3 kW / 400 V, 3-pole, 24 V DC, yaylı klemens, electrical ve mechanical interlock, ile gerilim tap için 3RA27
Siemens 3RA2315-8XE30-2BB4
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationReversing contactor assembly
product type designation3RA23
1 of the supplied contactor3RT2015-2BB42-0CC0
2 of the supplied contactor3RT2015-2BB42
of the supplied RH assembly kit3RA2913-2AA2
General technical data
size of contactorS00
product extension auxiliary switchVar
at AC6,7 g / 5 ms, 4,2 g / 10 ms
at DC6,7 g / 5 ms, 4,2 g / 10 ms
at AC10,5 g / 5 ms, 6,6 g / 10 ms
at DC10,5 g / 5 ms, 6,6 g / 10 ms
of contactor typical10.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight0,655 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
— at 400 V rated value7 A
— at 500 V rated value6 A
— at 690 V rated value4,9 A
— at 400 V rated value7 A
— at 500 V rated value6 A
— at 690 V rated value4,9 A
— at 400 V rated value3 kW
— at 500 V rated value3 kW
— at 690 V rated value4 kW
— at 400 V rated value3 kW
— at 690 V rated value4 kW
at AC-4 at 400 V rated value3 kW
at AC-3 maximum750 1/h
at AC-3e maximum750 1/h
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage 1 at DC rated value24 V
closing power of magnet coil at DC4 W
holding power of magnet coil at DC4 W
Auxiliary circuit
contact reliability of auxiliary contacts< 1 error per 100 million operating cycles
UL/CSA ratings
at 480 V rated value4,8 A
at 600 V rated value6,1 A
at 200/208 V rated value1,5 hp
at 220/230 V rated value2 hp
at 460/480 V rated value3 hp
at 575/600 V rated value5 hp
contact rating of auxiliary contacts according to ULA600 / Q600
Short-circuit protection
— with type of coordination 1 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A
— with type of coordination 2 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 20 A
for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A
Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height84 mm
width90 mm
depth83 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— downwards6 mm
— at the side6 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— at the side6 mm
— downwards6 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— downwards6 mm
— at the side6 mm
Connections/ Terminals
for main current circuitspring-loaded terminals
for auxiliary and control circuitspring-loaded terminals
at contactor for auxiliary contactsSpring-type terminals
of magnet coilSpring-loaded terminal
solid2x (0,5... 4 mm²)
solid or stranded2x (0,5... 4 mm²)
finely stranded with core end processing2x (0,5... 2,5 mm²)
finely stranded without core end processing2x (0,5... 2,5 mm²)
— solid or stranded2x (0,5... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²)
— finely stranded without core end processing2x (0,5... 1,5 mm²)
for AWG cables for auxiliary contacts2x (20... 14)
Safety related data
product function suitable for safety functionVar
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Communication/ Protocol
product function bus communicationVar
protocol is supported AS-Interface protocolYok
product function control circuit interface with IO linkYok
Aksesuarlar 82
Siemens 3RA2315-8XE30-2BB4 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RH2911-2FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA11-Z | Aksesuar | |
| 3RH2911-2HA02-Z | Aksesuar | |
| 3RH2911-2HA02-Z | Aksesuar | |
| 3RH2911-2HA10-Z | Aksesuar | |
| 3RH2911-2HA10-Z | Aksesuar | |
| 3RH2911-2HA01-Z | Aksesuar | |
| 3RH2911-2HA11-Z | Aksesuar | |
| 3RH2911-2HA12-Z | Aksesuar | |
| 3RH2911-2HA12-Z | Aksesuar | |
| 3RH2911-2HA11-Z | Aksesuar | |
| 3RH2911-2XA31-0MA0-Z | Aksesuar | |
| 3RH2911-2XA31-0MA0-Z | Aksesuar | |
| 3RH2911-2XA31-0MA0-Z | Aksesuar | |
| 3RH2911-2HA11-Z | Aksesuar | |
| 3RH2911-2HA11-Z | Aksesuar | |
| 3RH2911-2FA22-Z | Aksesuar | |
| 3RH2911-2FA22-Z | Aksesuar | |
| 3RH2911-2HA31-Z | Aksesuar | |
| 3RH2911-2HA31-Z | Aksesuar | |
| 3RH2911-2FA40-Z | Aksesuar | |
| 3RH2911-2FA40-Z | Aksesuar | |
| 3RH2911-2DE11-Z | Aksesuar | |
| 3RH2911-2NL22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2NL40 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA31-Z | Aksesuar | |
| 3RH2911-2NM31 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2FA40-Z | Aksesuar | |
| 3RH2911-2XA40-0MA0-Z | Aksesuar | |
| 3RH2911-2HA31 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DE11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2NF20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2NF11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2NF02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA12 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2FC22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2FB22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2FB11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2FA40 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA31-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2XN22-0GS0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-2HA22-0KT0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2916-2FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2NF22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2DE11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA40-0MA0-Z | Aksesuar | |
| 3RH2911-2HA22-Z | Aksesuar | |
| 3RH2911-2HA20-Z | Aksesuar | |
| 3RH2911-2HA20-Z | Aksesuar | |
| 3RH2911-2XA22-0MA0-Z | Aksesuar | |
| 3RH2911-2HA22-Z | Aksesuar | |
| 3RH2911-2HA22-Z | Aksesuar | |
| 3RH2916-2XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2916-2DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA40-0MA0-Z | Aksesuar | |
| 3RH2911-2XF22-0KS1 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XB22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA40-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA20-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XA11-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2NE21 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA30 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA21 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA12-0KT0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2HA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2FB22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-2XF12-0KS1 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2913-2AA2 | Bileşen · Wiring modules, connectors and kits · wiring kits | |
| 3RT2015-2BB42 | Bileşen | |
| 3RT2015-2BB42-0CC0 | Bileşen |
