Saint Machinery RB-JIC-40

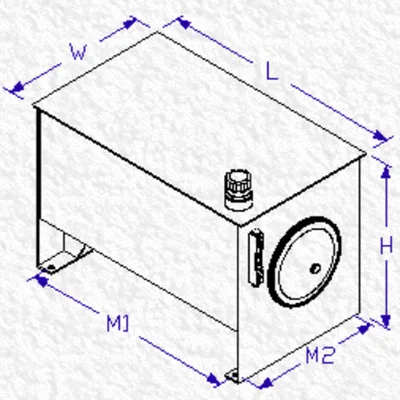

JIC Removable Baffle Hydraulic Reservoir - 40 gal, Pickled and Oiled Steel Material, 36.00 in Length, 24.00 in Width, 22.00 in Height
Drain Port Size3/4 NPT
End Plate Thickness7 ga
End Access Cover Size14.00 in
Filler/BreatherFiller / Breather Included
Fluid Level Temp Gauge5.00 inch Gauge Included
Leg Height6.00 in
Ürün Hakkında
JIC Removable Baffle Hydraulic Reservoir - 40 gal, Pickled and Oiled Steel Material, 36.00 in Length, 24.00 in Width, 22.00 in Height
Özellikler ve Avantajlar
- Weld Riser with Filler/ Breather
- Fluid Level / Temp. Gauge ( 5" )
- Two Endcovers with seals
- 3/4" NPT drain on one endcover
- Baffle with cutouts & removable, held in place with springstyle cotter pin.
- Ideal for quick and easy removing and installations
- Interior and exterior treated with a rust preventative oilcoating, shipped unprimed
- Sloped “V” bottom
- Leg height is 6" with two 11/16" dia. mounting holes on eachside
- Material is Pickled and Oiled steel
- All accessories are shipped loose inside of reservoir
Saint Machinery RB-JIC-40
- Orijinal ve sertifikalı Saint Machinery ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Drain Port Size3/4 NPT
End Plate Thickness7 ga
End Access Cover Size14.00 in
Filler/BreatherFiller / Breather Included
Fluid Level Temp Gauge5.00 inch Gauge Included
Leg Height6.00 in
Mounting Hole Diameter11/16 in
Overall Height22.00 in
Overall Length36.00 in
Overall Width24.00 in
Reservoir Capacity40 gal (US)
Reservoir MaterialPickled and Oiled Steel
Reservoir Series(JIC) Design - Removable Baffle
Top Plate Thickness7 ga
Weight196 lbs
