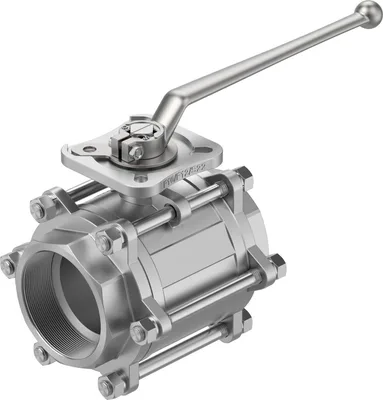

Festo VZBE-4-T-63-T-2-F1012-M-V15V16
Küresel vana. Kilitlenebilir el kollu, 2 yollu manuel. ISO 5211 kafa flanşlı 2 ve 3 yollu, isteğe bağlı kilitlenebilir el kollu. Paslanmaz çelik tasarım. ASME B1.20.1'e göre boru dişi veya ASME B16.11'e göre kaynak ucu. Opsiyonel olarak önceden monte edilmiş el koluyla
Tasarım2 yollu küresel vana
Kumanda tipiMekanik
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Montaj tipiHat içi montaj
Proses valfi bağlantısı4 NPT
Ürün Hakkında
Küresel vana. Kilitlenebilir el kollu, 2 yollu manuel. ISO 5211 kafa flanşlı 2 ve 3 yollu, isteğe bağlı kilitlenebilir el kollu. Paslanmaz çelik tasarım. ASME B1.20.1'e göre boru dişi veya ASME B16.11'e göre kaynak ucu. Opsiyonel olarak önceden monte edilmiş el koluyla
Festo VZBE-4-T-63-T-2-F1012-M-V15V16
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Tasarım2 yollu küresel vana
Kumanda tipiMekanik
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Montaj tipiHat içi montaj
Proses valfi bağlantısı4 NPT
Anahtarlama konumu göstergesiYuva yönü = akış yönü
Flanş delik düzeniF1012
İç çap96
Nominal boyut DN100
Valf fonksiyonu2/2
Akış yönüTersinir
Nominal basınç PN63
Fark basıncında kopma torku, nominal basınç, proses valfi PN90
Dayandığı standartISO 5211
Sembol00991458
AkışkanBuhar, ISO 8573-1:2010 [-:-:-] uyarınca basınçlı hava, İnert gazlar, Su, Nötr akışkanlar
Ortam sıcaklığı (akışkan)-20, 200
Debi Kv435.2
Malzemelere ilişkin notRoHS uyumlu
LABS (PWIS) uygunluğuVDMA24364 bölge III
Gövde malzemesiDöküm paslanmaz çelik
Gövde malzeme numarası1,4408
Yuva contası malzemesiPTFE, modifiye
Sızdırmazlık malzemesiFloro kauçuk, PTFE
Bilye malzemesiYüksek alaşımlı paslanmaz çelik
Bilye malzeme numarası1,4401
Mil malzemesiYüksek alaşımlı paslanmaz çelik
Mil malzeme numarası1,4401
Ürün ağırlığı16700
OnayCRN
CE işareti (uygunluk beyanına bakınız)AB Basınçlı Ekipman Direktifi'ne uygun
Patlama korumasıBölge 1 (ATEX), Bölge 2 (ATEX), Bölge 21 (ATEX), Bölge 22 (ATEX)
Korozyon direnci sınıfı CRC4 - Çok yüksek korozyon zorlanması
Aksesuarlar 122
Festo VZBE-4-T-63-T-2-F1012-M-V15V16 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| DAPS-0180-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0480-090-R-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS1-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS2-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS3-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS4-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-160- | Quarter turn actuator · Connection accessories | |
| DFPD-240- | Quarter turn actuator · Connection accessories | |
| DFPD-300- | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-180-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-135-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-120-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-180-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-135-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-120-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S27-S22-27 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S27-S22-27-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S36-S22-36 | Reducing sleeve · Mounting accessories | |
| DFPD-240-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS35-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS45-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS35-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS45-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories |
İlgili Ürünler
Detayları Gör
Festo
VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
SKU #YLSEBCQMW3AHGB
Detayları Gör
Festo
VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
MFR #VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
SKU #YLSNAGPHAAFJ8OO
Detayları Gör
Festo
VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16
SKU #YLSUKMWZPL1IBYA
Detayları Gör
Festo
VZXF-L-M22C-M-B-N12-130-M1-V4B2T-50-40
MFR #VZXF-L-M22C-M-B-N12-130-M1-V4B2T-50-40
SKU #YLSTJ4HGDDOMJGB
Detayları Gör
Festo
VZXF-L-M22C-M-B-G12-130-M1-V4B2T-50-40
MFR #VZXF-L-M22C-M-B-G12-130-M1-V4B2T-50-40
SKU #YLSLAZLGRMGJSZ
Detayları Gör
Festo
VZXF-L-M22C-M-A-G12-130-V4B2V-50-V
MFR #VZXF-L-M22C-M-A-G12-130-V4B2V-50-V
SKU #YLSQMMWWM3AHLVS
Detayları Gör
Festo
VZXF-L-M22C-M-B-G34-160-H3B1V-50-16-C
MFR #VZXF-L-M22C-M-B-G34-160-H3B1V-50-16-C
SKU #YLSSCGAL6WZ4CJD
Detayları Gör
Festo
VZXF-L-M22C-M-B-G34-160-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-B-G34-160-M1-H3B1T-50-16
SKU #YLSL5TDNSFW6EN6
Detayları Gör
Festo
VZXF-L-M22C-M-A-G34-160-H3B1V-50-V
MFR #VZXF-L-M22C-M-A-G34-160-H3B1V-50-V
SKU #YLSRMO1UJWI8TLA
Öne Çıkan Ürünler
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
İlgili Aramalar
Festo VZBE-4-T-63-T-2-F1012-M-V15V16 fiyatFesto VZBE-4-T-63-T-2-F1012-M-V15V16 teklif alFesto VZBE-4-T-63-T-2-F1012-M-V15V16 satın alVZBE-4-T-63-T-2-F1012-M-V15V16 fiyatVZBE-4-T-63-T-2-F1012-M-V15V16 stok durumuFesto yedek parçaFesto VZBE-4-T-63-T-2-F1012-M-V15V16 muadilFesto VZBE-4-T-63-T-2-F1012-M-V15V16 teknik özellikler
