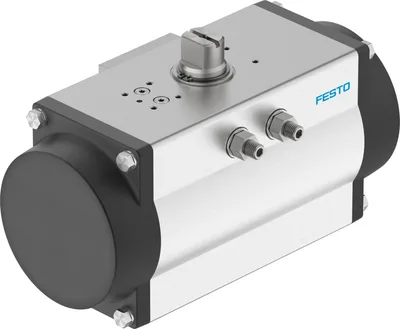

Festo DFPD-240-RP-90-RS45-F10-R3-C-VDE2
Çeyrek tur aktüatör. Çift etkili versiyonda 90°'lik dönüş açısının tamamında eşit tork karakteristiği. 40, 120, 240, 480 boyutları için 120°, 135°, 180° dönüş açılı versiyon, çift etkili. ISO 5211'e uygun proses vanası bağlantısı. VDI/VDE 3845'e uygun montaj delik düzeni. Sağlam, kaymaz ve kolay temizlenen alüminyum gövde. Uzun kullanım ömrü, düşük aşınma. Uzatılmış kullanım ömrü ve kolay onarım sayesinde sürdürülebilir. Artırılmış korozyon koruması
Valf aktüatörü boyutu240
Flanş delik düzeniF10
Dönüş açısı90
0°'de son konum ayar aralığı-5, 5
Mil bağlantı derinliği24
Rakor bağlantısının uyduğu standartISO 5211
Ürün Hakkında
Çeyrek tur aktüatör. Çift etkili versiyonda 90°'lik dönüş açısının tamamında eşit tork karakteristiği. 40, 120, 240, 480 boyutları için 120°, 135°, 180° dönüş açılı versiyon, çift etkili. ISO 5211'e uygun proses vanası bağlantısı. VDI/VDE 3845'e uygun montaj delik düzeni. Sağlam, kaymaz ve kolay temizlenen alüminyum gövde. Uzun kullanım ömrü, düşük aşınma. Uzatılmış kullanım ömrü ve kolay onarım sayesinde sürdürülebilir. Artırılmış korozyon koruması
Festo DFPD-240-RP-90-RS45-F10-R3-C-VDE2
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Valf aktüatörü boyutu240
Flanş delik düzeniF10
Dönüş açısı90
0°'de son konum ayar aralığı-5, 5
Nominal dönme açısında son konum ayar aralığı-5, 5
Mil bağlantı derinliği24
Rakor bağlantısının uyduğu standartISO 5211
Montaj konumuHerhangi
Çalışma şekliTek etkili
TasarımKremayer ve pinyon
Kapanma yönüSağa doğru kapanır
Sembol00991266
Valf bağlantısı standarda uygunVDI/VDE 3845 (NAMUR)
Konumlandırıcı ve konum sensörü bağlantı noktası standarda uygundurVDI/VDE 3845 boyut AA 2
VDMA 66413'e göre cihaz tipiGüvenlik cihazı
Güvenlik fonksiyonuGüvenlik fonksiyonu, basınçlı hava kesildiğinde ve yay odasının havası boşaltıldığında aktüatörün belirtilen güvenlik anahtarlama konumuna geçmesinden oluşur. Bu anahtarlama hareketi i
Güvenlik Bütünlük Seviyesi (SIL)SIL 2'ye kadar düşük talep modu, Yedekli mimaride SIL 3'e kadar, SIL 1'e kadar yüksek talep modu
ISO 13849 ve IEC 61508 (SIL) uyarınca güvenlik fonksiyonu için sertifikalıÜrün SRP/CS'de SIL 2'ye kadar kullanılabilir (Low Demand), Ürün SRP/CS'de SIL 1'e kadar kullanılabilir (High Demand), Yedekli mimaride SIL 3'e kadar
Patlama basıncı24
Çalışma basıncı0.2, 0.8
Çalışma basıncı2, 8
Çalışma basıncı29, 116
Nominal çalışma basıncı0.45
Nominal çalışma basıncı4.5
Nominal çalışma basıncı65.25
Denizcilik sınıflandırmasıSertifikaya bakınız
CE işareti (uygunluk beyanına bakınız)AB Patlamadan Korunma Direktifi'ne (ATEX) uygun
UKCA işareti (uygunluk beyanına bakınız)UK EX yönetmeliklerine uygun
AB dışı patlama koruması sertifikasıEPL Db (GB), EPL Gb (GB)
Patlama korumasıBölge 1 (ATEX), Bölge 1 (UKEX), Bölge 2 (ATEX), Bölge 21 (ATEX), Bölge 21 (UKEX), Bölge 22 (ATEX)
Sertifikayı veren kuruluşDNV TAP00001CE, Alman Teknik Kontrol Kurulu (TÜV) Rheinland 968/V 1106.01/2023
ATEX kategorisi gazII 2G
ATEX kategorisi tozII 2D
Gaz için patlamaya karşı tutuşma koruma tipiEx h IIC T4 Gb X
Toz için patlama tutuşma koruma tipiEx h IIIC T105°C Db X
Patlama ortam sıcaklığı-20°C <= Ta <= +80°C
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notÇiy noktası ortam sıcaklığının ve akışkan sıcaklığının en az 10 °C altında, Yağlı çalışma mümkün (bu durumda her zaman yağlı çalışma gereklidir)
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Depolama sıcaklığı-20, 60
Ortam sıcaklığı-20, 80
Nominal çalışma basıncında ve 0° dönüş açısında tork128.7
Nominal çalışma basıncında ve 90° dönme açısında tork67.1
Tork hakkında notAktüatörün çalışma torku, bağlantı flanşı ve kaplinin boyutuna göre ISO 5211'de belirtilen izin verilen maksimum torktan yüksek olmamalıdır.
0° dönüş açısında yay geri dönüş torku63
90° dönme açısında yay geri dönüş torku124.6
0.6 MPa (6 bar, 87 psi) basınçta çevrim başına hava tüketimi 0°-nominal dönme açısı-0°8.6
Ürün ağırlığı9737
Mil bağlantısıT22
Pnömatik bağlantıG1/4
Malzemelere ilişkin notRoHS uyumlu
Alt taban malzemesiEloksallı dövme alüminyum alaşımı
Kapak malzemesiEloksallı basınçlı döküm alüminyum
Sızdırmazlık malzemesiNBR
Yay malzemesiYay çeliği
Gövde malzemesiEloksallı alüminyum
Piston malzemesiBasınçlı döküm alüminyum
Yatak malzemesiPOM
Kam malzemesiÇelik
Vida malzemesiYüksek alaşımlı paslanmaz çelik
Mil malzemesiYüksek alaşımlı paslanmaz çelik
Aksesuarlar 269
Festo DFPD-240-RP-90-RS45-F10-R3-C-VDE2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| KMF-1-24DC-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMF-1-230AC-2.5 | Plug socket with cable · Electrical accessories | |
| VACF-B-B2-1 | Solenoid coil · Electrical accessories | |
| VACF-B-B2-3W | Solenoid coil · Electrical accessories | |
| VZBA-4"-GG-63-T-22-F10-V4V4T | Ball valve · General accessories | |
| SRBC-CA3-YR90-MW-22A-1W-C2P20 | Limit switch box · General accessories | |
| SRBC-CA3-YR90-N-1-P-C2P20 | Limit switch box · General accessories | |
| U-1/4 | Silencer · Silencer | |
| DARQ-K-X1-A1-F05-30-R1 | Mounting flange adapter · General accessories | |
| SASF-S2-B-F-A34 | Position indicator · General accessories | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| VSNC-FC-M52-MD-G14-F8 | Solenoid valve · Valves | |
| QS-G1/4-8-I | Push-in fitting · Fittings | |
| NEBA-M12G5-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12G5-U-5-N-LE3 | Connecting cable · Connecting cables | |
| CK-1/4-PK-4 | Quick connector · Quick connectors | |
| CK-1/4-PK-6 | Quick connector · Quick connectors | |
| CK-1/4-PK-9 | Quick connector · Quick connectors | |
| LCK-1/4-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4 | T quick connector · Quick connectors | |
| TCK-1/4-PK-6 | T quick connector · Quick connectors | |
| CK-1/4-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-6-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-9-KU | Quick connector · Quick connectors | |
| LCK-1/4-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/4-PK-6-KU | T quick connector · Quick connectors | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| GRU-1/4-B | Flow control/silencer · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| LCK-1/4-PK-9 | Elbow quick connector · Quick connectors | |
| CN-1/4-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/4-PK-6 | Barbed fitting · Barbed fittings | |
| TCN-1/4-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/4-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCN-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| CRCN-1/4-PK-4 | Barbed fitting · Stainless-steel fittings | |
| CRCN-1/4-PK-6 | Barbed fitting · Stainless-steel fittings | |
| LCNH-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| CRQS-1/4-8-I | Push-in fitting · Stainless-steel fittings | |
| CRQS-1/4-10-I | Push-in fitting · Stainless-steel fittings | |
| CRQSL-1/4-6 | Push-in L-fitting · Stainless-steel fittings | |
| CRQS-1/4-6 | Push-in fitting · Stainless-steel fittings | |
| CRGRLA-1/4-B | One-way flow control valve · Function fittings, stainless steel variants | |
| CRQS-1/4-8 | Push-in fitting · Stainless-steel fittings | |
| CRQS-1/4-10 | Push-in fitting · Stainless-steel fittings | |
| CRQSL-1/4-8 | Push-in L-fitting · Stainless-steel fittings | |
| CRQSL-1/4-10 | Push-in L-fitting · Stainless-steel fittings | |
| CRQST-1/4-8 | Push-in T-fitting · Stainless-steel fittings | |
| CRQST-1/4-10 | Push-in T-fitting · Stainless-steel fittings | |
| GRLA-1/4-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-8-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-D | One-way flow control valve · Function fittings | |
| NVF3-MOH-5/2-K-1/4 | Solenoid valve · Valves | |
| HGL-1/4-B | Piloted check valve · Function fittings | |
| HGL-1/4-QS-8 | Piloted check valve · Function fittings | |
| HGL-1/4-QS-10 | Piloted check valve · Function fittings | |
| GRLA-1/4-QS-6-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-RS-D | One-way flow control valve · Function fittings | |
| NVF3-MOH-5/2-K-1/4-EX | Solenoid valve · Valves | |
| GRLSA-1/4-QS-8 | One-way flow control valve · Function fittings | |
| NVF3-MOH-5/2-K..+MSFW-230 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-110 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFG-24 | Solenoid valve · Valves | |
| SE-1/4 | Quick exhaust valve · Function fittings | |
| SRAP-M-CA1-BB270-1-A-TP20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-TM20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-TP20-EX2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-YB270-1-A-TP20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-T2P20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-T2P20-EX2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-270-1-A-T2P20 | Sensorbox · Cylinder sensors for direct mounting | |
| VSNC-F-B52-D-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN-1A1 | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN-1A1 | Solenoid valve · Valves | |
| NPQH-LL-G14-Q8-P10 | Push-in L-fitting, long · Push-in fittings | |
| NPQH-L-G14-Q8-P10 | Push-in L-fitting · Push-in fittings | |
| NPQH-D-G14-Q8-P10 | Push-in fitting · Push-in fittings | |
| NPQH-DK-G14-Q8-P10 | Push-in fitting · Push-in fittings | |
| NPQH-T-G14-Q8-P10 | Push-in T-fitting · Push-in fittings | |
| VFOH-LE-A-G14-Q8 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G14-Q10 | One-way flow control valve · Function fittings | |
| DARQ-K-P-A1-F05-20-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| DARQ-K-P-A1-F05-30-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| DARQ-K-P-A2-F05-30-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-N-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-ZU-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-R-2A-1W-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-AS-M12-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-M12-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-C2-C2-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| DARQ-K-X1-A1-F05-20-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| DARQ-K-X1-A2-F05-30-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| CMSX-P-S-C-U-F1-S-130-A | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-S-C-U-F1-S-50-A | Positioner · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| VOFC-LT-M32C-M-FG14-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG14-F19A | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19A | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19A | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19 | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19A | Valve · Valves | |
| VOFC-L-B52-FG14-F19 | Valve · Valves | |
| VOFC-L-B52-FG14-F19A | Valve · Valves | |
| VOFD-L50T-M32-MN-FG14-10-F10 | Valve · Valves | |
| VOFD-L50T-M32-MN-FGP14-10-F10 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19A | Valve · Valves | |
| VSNC | Solenoid valve · Valves | |
| NPFC-L-2G14-F | Elbow fitting · Other connectors | |
| NPFC-L-R14-G14-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R14-M | Elbow fitting · Other connectors | |
| NPFC-Y-3G14-F | Y-fitting · Other connectors | |
| NPFC-Y-R14-2G14-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G14-F | T-fitting · Other connectors | |
| NPFC-T-R14-2G14-MFF | T-fitting · Other connectors | |
| NPFC-T-2G14-R14-FMF | T-fitting · Other connectors | |
| NPFC-T-3R14-M | T-fitting · Other connectors | |
| NPFC-T-G14-2R14-FMM | T-fitting · Other connectors | |
| NPFC-T-2R14-G14-MMF | T-fitting · Other connectors | |
| NPFC-X-4G14-F | X-fitting · Other connectors | |
| NPFC-X-R14-3G14-MFFF | X-fitting · Other connectors | |
| NPFC-D-G18-G14-M | Double nipple · Other connectors | |
| NPFC-D-2G14-M | Double nipple · Other connectors | |
| NPFC-D-R18-R14-M | Double nipple · Other connectors | |
| NPFC-D-2R14-M | Double nipple · Other connectors | |
| NPFC-S-2G14-F | Sleeve · Other connectors | |
| NPFC-E1-2G14-FM | Extension · Other connectors | |
| NPFC-E2-2G14-FM | Extension · Other connectors | |
| NPFC-E3-2G14-FM | Extension · Other connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Other connectors | |
| NPFC-D-2G14-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Other connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-R-G34-G14-MF | Reducing nipple · Other connectors | |
| NPFC-H-G14-F | Bulkhead fitting · Other connectors | |
| VSNC-FC-M52-MD-G14-F8-1A1 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1+G | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-3AA1+G | Solenoid valve · Valves | |
| DARQ-R-A-S22-S14-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S16-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S14-22-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P10 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F07S22-F05S11-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F10S22-F05S14-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F10S22-F07S17-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F10S22-F10S22-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-Z-F10S22-F10S22-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-Z-F10S22-F05S14-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-Z-F10S22-F07S17-R13 | Mounting kit · Mounting accessories | |
| DARQ-R-A-S22-S11-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F10S22-F07S17-R1 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F10S22-F05S14-R1 | Mounting kit · Mounting accessories | |
| CMSH-S-VDE1-S-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-N14-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-N14-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-V-SD-AL-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-V-SD-AL-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| DADG-FM-F9-VDE2 | Control plate · Mounting accessories | |
| DADG-AK-F9-2 | Adapter kit · Mounting accessories | |
| DADG-AK-F9-1 | Adapter kit · Mounting accessories | |
| DARQ-K-V-F10S22-F04S11-R13 | Mounting kit · Mounting accessories | |
| SRBC-CA3-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1WG-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| NPFC-DS-G14-G14-M | Double nipple · Other connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Other connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Other connectors | |
| SASF-F9-DE-31-A30 | Position indicator · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-S-130-A | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-S-50-A | Positioner · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-C-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH- | Positioner · Cylinder sensors for direct mounting |
İlgili Ürünler
Detayları Gör
Festo
DSL-16- -270-P-A-S2-B
MFR #DSL-16- -270-P-A-S2-B
SKU #YLS8O1DFLDQOC8L
Detayları Gör
Festo
DSL-16- -270-P-A-S20-KF-B
MFR #DSL-16- -270-P-A-S20-KF-B
SKU #YLSTG3XGDLFNV8F
Detayları Gör
Festo
DSL-16- -270-P-A-S2-KF-B
MFR #DSL-16- -270-P-A-S2-KF-B
SKU #YLSQQ5PTFWYNWLG
Detayları Gör
Festo
DSL-16- -270-CC-A-S20-B
MFR #DSL-16- -270-CC-A-S20-B
SKU #YLSDU3JXV17IHRS
Detayları Gör
Festo
DSL-16- -270-CC-A-S2-B
MFR #DSL-16- -270-CC-A-S2-B
SKU #YLSZMIJIJLMBL90
Detayları Gör
Festo
DSL-16- -270-CC-A-S20-KF-B
MFR #DSL-16- -270-CC-A-S20-KF-B
SKU #YLSLHL38NKFHUO8
Detayları Gör
Festo
DSL-16- -270-CC-A-S2-KF-B
MFR #DSL-16- -270-CC-A-S2-KF-B
SKU #YLSZZWYKQDM0IH
Detayları Gör
Festo
DSL-20- -270-P-A-S20-B
MFR #DSL-20- -270-P-A-S20-B
SKU #YLSTMW2XEHMMFUC
Detayları Gör
Festo
DSL-20- -270-P-A-S2-B
MFR #DSL-20- -270-P-A-S2-B
SKU #YLSOYJHZ6WDVCCK
Öne Çıkan Ürünler
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
İlgili Aramalar
Festo DFPD-240-RP-90-RS45-F10-R3-C-VDE2 fiyatFesto DFPD-240-RP-90-RS45-F10-R3-C-VDE2 teklif alFesto DFPD-240-RP-90-RS45-F10-R3-C-VDE2 satın alDFPD-240-RP-90-RS45-F10-R3-C-VDE2 fiyatDFPD-240-RP-90-RS45-F10-R3-C-VDE2 stok durumuFesto yedek parçaFesto DFPD-240-RP-90-RS45-F10-R3-C-VDE2 muadilFesto DFPD-240-RP-90-RS45-F10-R3-C-VDE2 teknik özellikler
