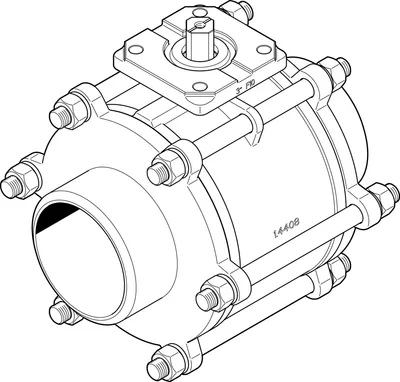

FESTO VZBA-4"-WW-63-T-22-F10-V4V4T
Küresel vana. Otomasyona uygun 2 yollu veya 3 yollu küresel vana. Paslanmaz çelik tasarım. Fırlamaya karşı emniyetli mil. El kolu ile manuel kumanda mümkün. EN 10226-1'e göre bağlantı dişi. ISO 5211'e uygun montaj flanşı. Bölge 1, 21, 2, 22'de kullanım
Tasarım2 yollu küresel vana
Kumanda tipiMekanik
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Montaj tipiHat içi montaj
Proses valfi bağlantısıKaynak uçları/kaynak uçları
Ürün Hakkında
Küresel vana. Otomasyona uygun 2 yollu veya 3 yollu küresel vana. Paslanmaz çelik tasarım. Fırlamaya karşı emniyetli mil. El kolu ile manuel kumanda mümkün. EN 10226-1'e göre bağlantı dişi. ISO 5211'e uygun montaj flanşı. Bölge 1, 21, 2, 22'de kullanım
FESTO VZBA-4"-WW-63-T-22-F10-V4V4T
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Tasarım2 yollu küresel vana
Kumanda tipiMekanik
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Montaj tipiHat içi montaj
Proses valfi bağlantısıKaynak uçları/kaynak uçları
Anahtarlama konumu göstergesiYuva yönü = akış yönü
Flanş delik düzeniF10
İç çap100
Nominal boyut DN100
Valf fonksiyonu2/2
Manuel kumandaYok
Akış yönüTersinir
Nominal basınç PN63
Çalıştırma torku140
Dayandığı standartISO 5211
Sembol00991458
AkışkanISO 8573-1:2010 [-:-:-]'e göre basınçlı hava, İnert gazlar, Su – buhar hariç, Nötr akışkanlar, Diğer akışkanlar talep üzerine
Ortam sıcaklığı (akışkan)-10, 200
Debi Kv1414
Malzemelere ilişkin notRoHS uyumlu
LABS (PWIS) uygunluğuVDMA24364 bölge III
Gövde malzemesiYüksek alaşımlı paslanmaz çelik
Gövde malzeme numarası1,4408
Sızdırmazlık malzemesiFloro kauçuk, PTFE, PTFE takviyeli
Bilye malzemesiYüksek alaşımlı paslanmaz çelik
Bilye malzeme numarası1,4408
Mil malzemesiYüksek alaşımlı paslanmaz çelik
Mil malzeme numarası1,4401
Ürün ağırlığı23300
CE işareti (uygunluk beyanına bakınız)AB Basınçlı Ekipman Direktifi'ne uygun
UKCA işareti (uygunluk beyanına bakınız)UK Basınçlı Ekipman Yönetmeliği'ne göre
Patlama korumasıBölge 1 (ATEX), Bölge 2 (ATEX), Bölge 21 (ATEX), Bölge 22 (ATEX)
Korozyon direnci sınıfı CRC3 - yüksek korozyon yükü
Aksesuarlar 123
FESTO VZBA-4"-WW-63-T-22-F10-V4V4T motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| DAPS-0180-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS1-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710 | Quarter turn actuator · Connection accessories | |
| VAOH-22-H9 | Hand lever · Mounting accessories | |
| DAPS-0480-090-R-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS1-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS2-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS3-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-RS4-F0710-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS1-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS2-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS3-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0360-090-R-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0090-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0180-090-RS4-F0710-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-160- | Quarter turn actuator · Connection accessories | |
| DFPD-240- | Quarter turn actuator · Connection accessories | |
| DFPD-300- | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-180-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-135-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-120-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RD-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS30-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS30-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F0710-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-180-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-135-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-120-RD-F0710 | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S27-S22-27 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S27-S22-27-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S36-S22-36 | Reducing sleeve · Mounting accessories | |
| DFPD-240-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-240-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS35-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS45-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-240-RP-90-RS60-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS35-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS45-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-300-RP-90-RS60-F10-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS35-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS45-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-300-RP-90-RS60-F10-R3-C-VDE2 | Quarter turn actuator · Connection accessories |
İlgili Ürünler
Detayları Gör
Festo
VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
SKU #YLSEBCQMW3AHGB
Detayları Gör
Festo
VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
MFR #VZXF-L-M22C-M-B-G12-120-H3B1V-50-16-C
SKU #YLSNAGPHAAFJ8OO
Detayları Gör
Festo
VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16
SKU #YLSUKMWZPL1IBYA
Detayları Gör
Festo
VZXF-L-M22C-M-B-N12-130-M1-V4B2T-50-40
MFR #VZXF-L-M22C-M-B-N12-130-M1-V4B2T-50-40
SKU #YLSTJ4HGDDOMJGB
Detayları Gör
Festo
VZXF-L-M22C-M-B-G12-130-M1-V4B2T-50-40
MFR #VZXF-L-M22C-M-B-G12-130-M1-V4B2T-50-40
SKU #YLSLAZLGRMGJSZ
Detayları Gör
Festo
VZXF-L-M22C-M-A-G12-130-V4B2V-50-V
MFR #VZXF-L-M22C-M-A-G12-130-V4B2V-50-V
SKU #YLSQMMWWM3AHLVS
Detayları Gör
Festo
VZXF-L-M22C-M-B-G34-160-H3B1V-50-16-C
MFR #VZXF-L-M22C-M-B-G34-160-H3B1V-50-16-C
SKU #YLSSCGAL6WZ4CJD
Detayları Gör
Festo
VZXF-L-M22C-M-B-G34-160-M1-H3B1T-50-16
MFR #VZXF-L-M22C-M-B-G34-160-M1-H3B1T-50-16
SKU #YLSL5TDNSFW6EN6
Detayları Gör
Festo
VZXF-L-M22C-M-A-G34-160-H3B1V-50-V
MFR #VZXF-L-M22C-M-A-G34-160-H3B1V-50-V
SKU #YLSRMO1UJWI8TLA
Öne Çıkan Ürünler
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
İlgili Aramalar
FESTO VZBA-4"-WW-63-T-22-F10-V4V4T fiyatFESTO VZBA-4"-WW-63-T-22-F10-V4V4T teklif alFESTO VZBA-4"-WW-63-T-22-F10-V4V4T satın alVZBA-4"-WW-63-T-22-F10-V4V4T fiyatVZBA-4"-WW-63-T-22-F10-V4V4T stok durumuFESTO yedek parçaFESTO VZBA-4"-WW-63-T-22-F10-V4V4T muadilFESTO VZBA-4"-WW-63-T-22-F10-V4V4T teknik özellikler
