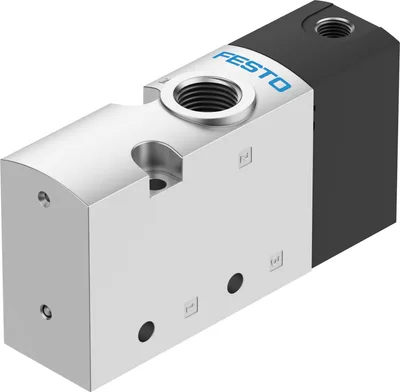

Festo VUWS-L30-M32C-A-G38
Pnömatik valf. Üniversal valf, sağlam ve dayanıklı. Pnömatik olarak çalıştırılır. Tekli valf veya VTUS manifold valf olarak kullanılabilir
Valf fonksiyonu3/2 yollu, tek bobinli, normalde kapalı
Kumanda tipiPnömatik
Valf boyutu31
Pnömatik çalışma portuG3/8
Çalışma basıncı0.25, 1
Çalışma basıncı2.5, 10
Ürün Hakkında
Pnömatik valf. Üniversal valf, sağlam ve dayanıklı. Pnömatik olarak çalıştırılır. Tekli valf veya VTUS manifold valf olarak kullanılabilir
Festo VUWS-L30-M32C-A-G38
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Valf fonksiyonu3/2 yollu, tek bobinli, normalde kapalı
Kumanda tipiPnömatik
Valf boyutu31
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)2300
Pnömatik çalışma portuG3/8
Çalışma basıncı0.25, 1
Çalışma basıncı2.5, 10
TasarımPistonlu sürgülü valf
Sıfırlama tipiPnömatik yay
Onayc UL us - Recognised (Yağ)
Nominal boyut9.4
Egzoz havası fonksiyonuKısılabilir
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Manuel kumandaYok
Pilotlama tipiDoğrudan
Pilot hava beslemesiDahili
Akış yönüGeri döndürülemez
Sembol00991742
BindirmeBindirmeli
Pilot basıncı0.25, 1
Pilot basıncı2.5, 10
Kapanma süresi36
Açma anahtarlama süresi19
Patlama korumasıSertifikadaki bilgilere uyulmalıdır!, Bölge 1 (ATEX), Bölge 2 (ATEX), Bölge 21 (ATEX), Bölge 22 (ATEX)
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Titreşim dayanımıFN 942017-4 ve EN 60068-2-6'ya göre şiddet seviyesi 2 ile taşıma uygulama testi
Darbe dayanımıFN 942017-5 ve EN 60068-2-27'ye göre şiddet seviyesi 2 ile şok testi
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Temiz oda uygunluğu, ISO 14644-14'e göre ölçülmüştürISO 14644-1'e göre Sınıf 6
Ortam sıcaklığı (akışkan)-10, 60
Pilot akışkanISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Ortam sıcaklığı-10, 60
Ürün ağırlığı394
Montaj tipiManifold rayı üzerinde, Geçiş delikli
Havalandırma bağlantısıKanallı değil
Pilot hava portu 12G1/8
Pnömatik bağlantı, port 1G3/8
Pnömatik bağlantı, port 2G3/8
Pnömatik bağlantı, port 3G3/8
Malzemelere ilişkin notRoHS uyumlu
Sızdırmazlık malzemesiHNBR, NBR
Gövde malzemesiboyalı
Piston sürgüsü malzemesiDövme alüminyum alaşımı
Vida malzemesiNikel kaplı çelik
Aksesuarlar 198
Festo VUWS-L30-M32C-A-G38 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| VAME-B10-20-W | Wall mounting · Mounting accessories | |
| PUN-H-12X2-TBL | Plastic tubing · Tubes | |
| VAME-B10-30-A | Foot mounting · Mounting accessories | |
| QS-G3/8-12 | Push-in fitting · Fittings | |
| QS-G3/8-12-I | Push-in fitting · Fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-10-I | Push-in L-fitting · Push-in fittings | |
| QSLV-3/8-12-I | Push-in L-fitting · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST3-3/8-10-8 | Multiple distributor · Push-in fittings | |
| QSLV2-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV2-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV2-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-12 | Push-in fitting · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-10-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G3/8-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QST3-G3/8-10-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV2-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-12 | Push-in fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| VABM-B10-30-G34-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-2-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-3-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-4-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-5-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-6-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-7-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-8-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-9-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-N34-10-P53 | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-2-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-3-P53-E | Common supply manifold · Connection accessories | |
| VABM-B10-30-G34-4-P53-E | Common supply manifold · Connection accessories | |
| VAME-B10-30-MK | Assortment of spare parts · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
VUVG-...T1
MFR #VUVG-...T1
SKU #YLSX2D4SAW0EEKW
Detayları Gör
Festo
VUVG-B10Z-M32C-RZT-F-1T1L
MFR #VUVG-B10Z-M32C-RZT-F-1T1L
SKU #YLSQZTBLMZ6IHOT
Detayları Gör
Festo
VUVG
MFR #VUVG
SKU #YLSK5LKLZINUOQB
Detayları Gör
Festo
VUWG
MFR #VUWG
SKU #YLSGV6ELGMVEOXL
Detayları Gör
Festo
VUVG-B14Z-M32C-AZT-F-1T1L
MFR #VUVG-B14Z-M32C-AZT-F-1T1L
SKU #YLSFGSMCMESWXAL
Detayları Gör
Festo
VUVG-B14Z-M32U-AZT-F-1T1L
MFR #VUVG-B14Z-M32U-AZT-F-1T1L
SKU #YLSZLONZJJHJLYV
Detayları Gör
Festo
VUVG-B10-T32H-MZT-F-1R8L
MFR #VUVG-B10-T32H-MZT-F-1R8L
SKU #YLSOPMRWYPTLJ8T
Detayları Gör
Festo
VUVG-B10-T32U-MZT-F-1R8L
MFR #VUVG-B10-T32U-MZT-F-1R8L
SKU #YLSJA8FZCEY6TAW
Detayları Gör
Festo
VUVG-L10-T32H-MT-M5-1R8L
MFR #VUVG-L10-T32H-MT-M5-1R8L
SKU #YLS2HCIBEMMWU2N
Öne Çıkan Ürünler
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
İlgili Aramalar
Festo VUWS-L30-M32C-A-G38 fiyatFesto VUWS-L30-M32C-A-G38 teklif alFesto VUWS-L30-M32C-A-G38 satın alVUWS-L30-M32C-A-G38 fiyatVUWS-L30-M32C-A-G38 stok durumuFesto yedek parçaFesto VUWS-L30-M32C-A-G38 muadilFesto VUWS-L30-M32C-A-G38 teknik özellikler
