Festo
SPAE-P10R-F-PNLK-2.5K
MFR #SPAE-P10R-F-PNLK-2.5K
SKU #YLS3KY8IAEARKEN
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

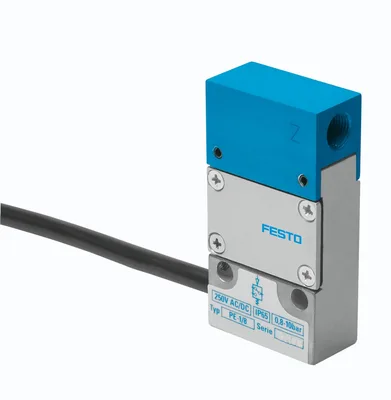

FESTO PE-1/8
PE dönüştürücü. Pnömatik/elektrikli fark basınç şalteri. Pnömatik/elektrik basınç dönüştürücü. Vakum için tasarım. 2N montaj çerçevesine montaj. Sıçramaya dayanıklı tasarım. Sertifika: CCC
Standarda uygunlukEN 60947-5-1
Sembol00991470
OnayCCC
CE işareti (uygunluk beyanına bakınız)AB Alçak Gerilim Direktifine göre
Ölçülen değişkenBağıl basınç
Ölçüm yöntemiPnömatik/elektrik basınç dönüştürücü
Ürün Hakkında
PE dönüştürücü. Pnömatik/elektrikli fark basınç şalteri. Pnömatik/elektrik basınç dönüştürücü. Vakum için tasarım. 2N montaj çerçevesine montaj. Sıçramaya dayanıklı tasarım. Sertifika: CCC
FESTO PE-1/8
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Standarda uygunlukEN 60947-5-1
Sembol00991470
OnayCCC
CE işareti (uygunluk beyanına bakınız)AB Alçak Gerilim Direktifine göre
UKCA işareti (uygunluk beyanına bakınız)Elektrikli ekipmanlar için UK yönetmeliklerine göre
Ölçülen değişkenBağıl basınç
Ölçüm yöntemiPnömatik/elektrik basınç dönüştürücü
Çalışma basıncı0.08, 1
Çalışma basıncı0.8, 10
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkün
Ortam sıcaklığı-10, 60
Anahtarlama çıkışıkonvansiyonel
Anahtarlama fonksiyonuSabit histerezisli eşik değeri
Anahtarlama elemanı fonksiyonuDeğiştirme anahtarı
Maks. açma noktası0.8
Min. kapanma noktası0.2
Maks. anahtarlama çıkış gerilimi AC250
Maks. anahtarlama çıkış gerilimi DC250
Kullanım kategorisi - endüktif yükAC-14, DC-13
Kullanım kategorisi - omik yükAC-12, DC-12
Elektrik bağlantısı4 damarlı, Kablo
Elektrik bağlantısı 1, bağlantı tipiKablo
Elektrik bağlantısı 1, konnektör sistemiAçık uç
Kablo uzunluğu1
Kablo kılıfı malzemesiPVC
Montaj tipiGeçme delikli
Montaj konumuHerhangi
Pnömatik bağlantıG1/8
Ürün ağırlığı225
Gövde malzemesiEloksallı alüminyum, Pres döküm çinko
Membran malzemesiKloropren kauçuk
Ayar seçenekleriSabit ayarlı
Koruma sınıfıIP65
İzolasyon gerilimi2000
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Kirlilik derecesi3
Aksesuarlar 211
FESTO PE-1/8 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| QS-G1/8-8 | Push-in fitting · Fittings | |
| CK-1/8-PK-4 | Quick connector · Quick connectors | |
| CK-1/8-PK-6 | Quick connector · Quick connectors | |
| CK-1/8-PK-3 | Quick connector · Quick connectors | |
| LCK-1/8-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-3 | T quick connector · Quick connectors | |
| LCK-1/8-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4 | T quick connector · Quick connectors | |
| TCK-1/8-PK-6 | T quick connector · Quick connectors | |
| CK-1/8-PK-3-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-6-KU | Quick connector · Quick connectors | |
| LCK-1/8-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/8-PK-6-KU | T quick connector · Quick connectors | |
| CN-1/8-PK-3 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-6 | Barbed fitting · Barbed fittings | |
| LCN-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| TCN-1/8-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCNH-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/8-4 | Push-in fitting · Push-in fittings | |
| QSW-1/8-6 | Push-in fitting · Push-in fittings | |
| QSW-1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSM-1/8-4-100 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-100 | Push-in fitting · Push-in fittings | |
| QSML-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-V0-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSML-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| QSL-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/8-4-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/8-6-B | Multiple distributor · Push-in fittings | |
| QST3-1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QS-G1/8-8-I | Push-in fitting · Push-in fittings | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/8-6 | Multiple distributor · Push-in fittings | |
| QST3-G1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-G1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-G1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-G1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-1/8-10 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-10 | Push-in T-fitting · Push-in fittings |
İlgili Ürünler
Detayları Gör
Festo
SPAE-P10R-Q3-PNLK-2.5K
MFR #SPAE-P10R-Q3-PNLK-2.5K
SKU #YLSGMZE2XAJX7Y
Detayları Gör
Festo
SPAE-P10R-Q4-PNLK-2.5K
MFR #SPAE-P10R-Q4-PNLK-2.5K
SKU #YLSKOP9YZFC4AWP
Detayları Gör
Festo
SPAE-P10R-S4-PNLK-2.5K
MFR #SPAE-P10R-S4-PNLK-2.5K
SKU #YLSAHNJ7XVBQ64A
Detayları Gör
Festo
SPAE-P10R-S6-PNLK-2.5K
MFR #SPAE-P10R-S6-PNLK-2.5K
SKU #YLSDJ6DCCZV5PS8
Detayları Gör
Festo
SPAE-V1R-F-PNLK-2.5K
MFR #SPAE-V1R-F-PNLK-2.5K
SKU #YLSX9NHRBTFSMF
Detayları Gör
Festo
SPAE-V1R-PC10-PNLK-2.5K
MFR #SPAE-V1R-PC10-PNLK-2.5K
SKU #YLSQZF1KLTTL5VG
Detayları Gör
Festo
SPAE-V1R-Q3-PNLK-2.5K
MFR #SPAE-V1R-Q3-PNLK-2.5K
SKU #YLS2AWAKFNAICSY
Detayları Gör
Festo
SPAE-V1R-Q4-PNLK-2.5K
MFR #SPAE-V1R-Q4-PNLK-2.5K
SKU #YLSDW8UN4UCSF5
Detayları Gör
Festo
SPAE-V1R-S4-PNLK-2.5K
MFR #SPAE-V1R-S4-PNLK-2.5K
SKU #YLS2YOJRUWILSP
Öne Çıkan Ürünler
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
İlgili Aramalar
FESTO PE-1/8 fiyatFESTO PE-1/8 teklif alFESTO PE-1/8 satın alPE-1/8 fiyatPE-1/8 stok durumuFESTO yedek parçaFESTO PE-1/8 muadilFESTO PE-1/8 teknik özellikler
