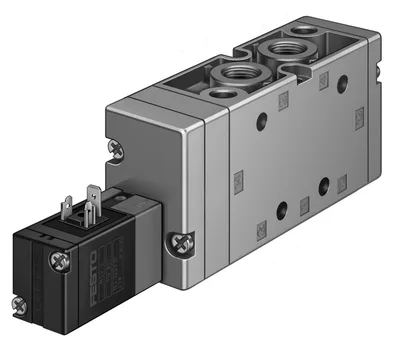

Festo MVH-5-3/8-L-B

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Festo MVH-5-3/8-L-B

Selenoid valf. Sağlam ve güvenilir. Ayrı bobinler sayesinde geniş voltaj aralığı. Armatür tüplü prensip. AB Patlamadan Korunma Direktifine (ATEX) uygun

FestoMFR # MVH-5-3/8-L-BSKU # CEY-937FC7826E8E
Valf fonksiyonu5/2 yollu, tek bobinli
Kumanda tipiElektrikli
Yapı genişliği40
Pnömatik çalışma portuG3/8
Çalışma gerilimi24 V DC
Çalışma basıncı0.2, 1
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Selenoid valf. Sağlam ve güvenilir. Ayrı bobinler sayesinde geniş voltaj aralığı. Armatür tüplü prensip. AB Patlamadan Korunma Direktifine (ATEX) uygun

Festo MVH-5-3/8-L-B

  • Orijinal ve sertifikalı Festo ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Valf fonksiyonu5/2 yollu, tek bobinli
Kumanda tipiElektrikli
Yapı genişliği40
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)2000
Pnömatik çalışma portuG3/8
Çalışma gerilimi24 V DC
Çalışma basıncı0.2, 1
Çalışma basıncı2, 10
TasarımPistonlu sürgülü valf
Sıfırlama tipiPnömatik yay
Nominal boyut12
Grid ölçüsü41
Egzoz havası fonksiyonuKısılabilir
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Manuel kumandaKilitlemesiz
Pilotlama tipiPilot kumandalı
Pilot hava beslemesiDahili
Akış yönüGeri döndürülemez
Sembol00991023
BindirmeBindirmeli
Maks. anahtarlama frekansı3
Kapanma süresi60
Açma anahtarlama süresi22
0 sinyalinde maks. pozitif test darbesi2200
1 sinyalde maks. negatif test darbesi3700
Karakteristik bobin verileri24 V DC: 2.5 W
İzin verilen gerilim dalgalanmaları+/-10%
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC1 - Düşük korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Depolama sıcaklığı-40, 60
Ortam sıcaklığı (akışkan)-5, 50
Ortam sıcaklığı-5, 50
Ürün ağırlığı750
Montaj tipiPR rayı üzerinde, Geçiş delikli
Pilot egzoz portu 84M5
Pnömatik bağlantı, port 1G3/8
Pnömatik bağlantı, port 2G3/8
Pnömatik bağlantı, port 3G3/8
Pnömatik bağlantı, port 4G3/8
Pnömatik bağlantı, port 5G3/8
Malzemelere ilişkin notRoHS uyumlu
Sızdırmazlık malzemesiNBR
Gövde malzemesiBasınçlı döküm alüminyum

Aksesuarlar 222

Festo MVH-5-3/8-L-B motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
MSSD-VPlug socket · Electrical accessories
MV-LD-12-24DCIlluminating seal · Electrical accessories
AHB-MD/MF/MVManual override · General accessories
QS-G3/8-12Push-in fitting · Fittings
QS-G3/8-12-IPush-in fitting · Fittings
QSL-G3/8-12Push-in L-fitting · Fittings
QSLL-G3/8-12Push-in L-fitting, long · Fittings
UC-M5Silencer · Silencer
PUN-H-12X2-NTPlastic tubing · Tubes
PUN-H-12X2-BLPlastic tubing · Tubes
PUN-H-12X2-SWPlastic tubing · Tubes
PUN-H-12X2-TBLPlastic tubing · Tubes
CK-3/8-PK-6Quick connector · Quick connectors
CK-3/8-PK-9Quick connector · Quick connectors
U-3/8Silencer · Silencer
CK-3/8-PK-13Quick connector · Quick connectors
LCK-3/8-PK-6Elbow quick connector · Quick connectors
LCK-3/8-PK-9Elbow quick connector · Quick connectors
TCK-3/8-PK-6T quick connector · Quick connectors
TCK-3/8-PK-9T quick connector · Quick connectors
CK-3/8-PK-6-KUQuick connector · Quick connectors
CK-3/8-PK-9-KUQuick connector · Quick connectors
U-3/8-BSilencer · Silencer
CN-3/8-PK-6Barbed fitting · Barbed fittings
TCN-3/8-PK-6Barbed T-fitting · Barbed fittings
LCN-3/8-PK-6Barbed elbow fitting · Barbed fittings
PAL-3/8-10-BCommon supply manifold · Connection accessories
PRSB-3/8-BCover plate · Connection accessories
PRS-3/8-2-B Manifold block · Connection accessories
PRS-3/8-3-B Manifold block · Connection accessories
PRS-3/8-4-BManifold block · Connection accessories
PRS-3/8-5-B Manifold block · Connection accessories
PRS-3/8-6-BManifold block · Connection accessories
PRS-3/8-8-BManifold block · Connection accessories
PRS-3/8-10-B Manifold block · Connection accessories
PAL-3/8-2-BCommon supply manifold · Connection accessories
PAL-3/8-3-BCommon supply manifold · Connection accessories
PAL-3/8-4-BCommon supply manifold · Connection accessories
PAL-3/8-5-BCommon supply manifold · Connection accessories
PAL-3/8-6-BCommon supply manifold · Connection accessories
PAL-3/8-7-BCommon supply manifold · Connection accessories
PAL-3/8-8-BCommon supply manifold · Connection accessories
PAL-3/8-9-BCommon supply manifold · Connection accessories
PALB-3/8-BCover plate · Connection accessories
KMV-1-24DC-2,5-LEDPlug socket with cable · Electrical accessories
KMV-1-24DC-5-LEDPlug socket with cable · Electrical accessories
LCNH-3/8-PK-6Barbed elbow fitting · Barbed fittings
QSW-3/8-10Push-in fitting · Push-in fittings
QSW-3/8-12Push-in fitting · Push-in fittings
QS-3/8-8-50Push-in fitting · Push-in fittings
QS-3/8-10-50Push-in fitting · Push-in fittings
QS-3/8-12-20Push-in fitting · Push-in fittings
QSL-3/8-8-50Push-in L-fitting · Push-in fittings
QSL-3/8-10-20Push-in L-fitting · Push-in fittings
QSL-3/8-12-20Push-in L-fitting · Push-in fittings
QST-3/8-8-50Push-in T-fitting · Push-in fittings
QST-3/8-10-20Push-in T-fitting · Push-in fittings
QST-3/8-12-20Push-in T-fitting · Push-in fittings
QS-G3/8-8-50Push-in fitting · Push-in fittings
QS-G3/8-10-50Push-in fitting · Push-in fittings
QS-G3/8-12-20Push-in fitting · Push-in fittings
QSL-G3/8-8-50Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20Push-in L-fitting · Push-in fittings
QSL-G3/8-12-20Push-in L-fitting · Push-in fittings
QST-G3/8-8-50Push-in T-fitting · Push-in fittings
QST-G3/8-10-20Push-in T-fitting · Push-in fittings
QST-G3/8-12-20Push-in T-fitting · Push-in fittings
QS-3/8-8Push-in fitting · Push-in fittings
QS-3/8-10Push-in fitting · Push-in fittings
QS-3/8-12Push-in fitting · Push-in fittings
QS-3/8-8-IPush-in fitting · Push-in fittings
QS-3/8-10-IPush-in fitting · Push-in fittings
QS-3/8-12-IPush-in fitting · Push-in fittings
QSL-3/8-8Push-in L-fitting · Push-in fittings
QSL-3/8-10Push-in L-fitting · Push-in fittings
QSL-3/8-12Push-in L-fitting · Push-in fittings
QSLL-3/8-8Push-in L-fitting, long · Push-in fittings
QSLL-3/8-10Push-in L-fitting, long · Push-in fittings
QSLL-3/8-12Push-in L-fitting, long · Push-in fittings
QSLV-3/8-8Push-in L-fitting · Push-in fittings
QSLV-3/8-10Push-in L-fitting · Push-in fittings
QSLV-3/8-12Push-in L-fitting · Push-in fittings
QSLV-3/8-8-IPush-in L-fitting · Push-in fittings
QSLV-3/8-10-IPush-in L-fitting · Push-in fittings
QSLV-3/8-12-IPush-in L-fitting · Push-in fittings
QST-3/8-8Push-in T-fitting · Push-in fittings
QST-3/8-10Push-in T-fitting · Push-in fittings
QST-3/8-12Push-in T-fitting · Push-in fittings
QSTL-3/8-8Push-in T-fitting · Push-in fittings
QSTL-3/8-10Push-in T-fitting · Push-in fittings
QSTL-3/8-12Push-in T-fitting · Push-in fittings
QSY-3/8-8Push-in Y-fitting · Push-in fittings
QSY-3/8-10Push-in Y-fitting · Push-in fittings
QSY-3/8-12Push-in Y-fitting · Push-in fittings
QSYL-3/8-8Push-in Y-fitting · Push-in fittings
QSYL-3/8-10Push-in Y-fitting · Push-in fittings
QSYL-3/8-12Push-in Y-fitting · Push-in fittings
QSTF-3/8-8-BPush-in T-fitting · Push-in fittings
QSTF-3/8-10-BPush-in T-fitting · Push-in fittings
QSTF-3/8-12-BPush-in T-fitting · Push-in fittings
QSYLV-3/8-10Push-in Y-fitting · Push-in fittings
QSYTF-3/8-10-BMultiple distributor · Push-in fittings
QST3-3/8-10-8Multiple distributor · Push-in fittings
QSLV2-3/8-8Multiple distributor · Push-in fittings
QSLV2-3/8-10Multiple distributor · Push-in fittings
QSLV2-3/8-12Multiple distributor · Push-in fittings
QSLV3-3/8-8Multiple distributor · Push-in fittings
QSLV3-3/8-10Multiple distributor · Push-in fittings
QSLV3-3/8-12Multiple distributor · Push-in fittings
QSLV4-3/8-8Multiple distributor · Push-in fittings
QSLV4-3/8-10Multiple distributor · Push-in fittings
QSLV4-3/8-12Multiple distributor · Push-in fittings
QSLV6-3/8-8Multiple distributor · Push-in fittings
QSLV6-3/8-10Multiple distributor · Push-in fittings
QSLV6-3/8-12Multiple distributor · Push-in fittings
QSR-3/8-8Push-in fitting, rotatable · Push-in fittings
QSR-3/8-10Push-in fitting, rotatable · Push-in fittings
QSR-3/8-12Push-in fitting, rotatable · Push-in fittings
QSRL-3/8-8Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-10Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-12Push-in L-fitting, rotatable · Push-in fittings
QSK-3/8-8Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-10Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-12Push-in fitting, self-sealing · Push-in fittings
QSKL-3/8-8Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-10Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-12Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-3/8-8Push-in fitting · Push-in fittings
QS-V0-3/8-10Push-in fitting · Push-in fittings
QS-V0-3/8-12Push-in fitting · Push-in fittings
QSL-V0-3/8-8Push-in L-fitting · Push-in fittings
QSL-V0-3/8-10Push-in L-fitting · Push-in fittings
QSL-V0-3/8-12Push-in L-fitting · Push-in fittings
QST-V0-3/8-8Push-in T-fitting · Push-in fittings
QST-V0-3/8-10Push-in T-fitting · Push-in fittings
QST-V0-3/8-12Push-in T-fitting · Push-in fittings
QS-3/8-16Push-in fitting · Push-in fittings
QSL-3/8-16Push-in L-fitting · Push-in fittings
QST-3/8-16Push-in T-fitting · Push-in fittings
QS-3/8-5/16-I-U-M Push-in fitting · Push-in fittings
QS-3/8-3/8-I-U-M Push-in fitting · Push-in fittings
QS-G3/8-8Push-in fitting · Push-in fittings
QS-G3/8-10Push-in fitting · Push-in fittings
QS-G3/8-8-IPush-in fitting · Push-in fittings
QS-G3/8-10-IPush-in fitting · Push-in fittings
QSL-G3/8-8Push-in L-fitting · Push-in fittings
QSL-G3/8-10Push-in L-fitting · Push-in fittings
QSLL-G3/8-8Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-10Push-in L-fitting, long · Push-in fittings
QSLV-G3/8-8Push-in L-fitting · Push-in fittings
QSLV-G3/8-10Push-in L-fitting · Push-in fittings
QSLV-G3/8-12Push-in L-fitting · Push-in fittings
QSLV-G3/8-8-IPush-in L-fitting · Push-in fittings
QSLV-G3/8-10-IPush-in L-fitting · Push-in fittings
QSLV-G3/8-12-IPush-in L-fitting · Push-in fittings
QST-G3/8-8Push-in T-fitting · Push-in fittings
QST-G3/8-10Push-in T-fitting · Push-in fittings
QST-G3/8-12Push-in T-fitting · Push-in fittings
QSTL-G3/8-8Push-in T-fitting · Push-in fittings
QSTL-G3/8-10Push-in T-fitting · Push-in fittings
QSTL-G3/8-12Push-in T-fitting · Push-in fittings
QSY-G3/8-8Push-in Y-fitting · Push-in fittings
QSY-G3/8-10Push-in Y-fitting · Push-in fittings
QSY-G3/8-12Push-in Y-fitting · Push-in fittings
QSYL-G3/8-8Push-in Y-fitting · Push-in fittings
QSYL-G3/8-10Push-in Y-fitting · Push-in fittings
QSYL-G3/8-12Push-in Y-fitting · Push-in fittings
QSTF-G3/8-8Push-in T-fitting · Push-in fittings
QSTF-G3/8-10Push-in T-fitting · Push-in fittings
QSTF-G3/8-12Push-in T-fitting · Push-in fittings
QSYLV-G3/8-10Push-in Y-fitting · Push-in fittings
QSYTF-G3/8-10Multiple distributor · Push-in fittings
QST3-G3/8-10-8Multiple distributor · Push-in fittings
QSLV2-G3/8-8Multiple distributor · Push-in fittings
QSLV2-G3/8-10Multiple distributor · Push-in fittings
QSLV2-G3/8-12Multiple distributor · Push-in fittings
QSLV3-G3/8-8Multiple distributor · Push-in fittings
QSLV3-G3/8-10Multiple distributor · Push-in fittings
QSLV3-G3/8-12Multiple distributor · Push-in fittings
QSLV4-G3/8-8Multiple distributor · Push-in fittings
QSLV4-G3/8-10Multiple distributor · Push-in fittings
QSLV4-G3/8-12Multiple distributor · Push-in fittings
QSLV6-G3/8-8Multiple distributor · Push-in fittings
QSLV6-G3/8-10Multiple distributor · Push-in fittings
QSLV6-G3/8-12Multiple distributor · Push-in fittings
QSR-G3/8-8Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-10Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-12Push-in fitting, rotatable · Push-in fittings
QSRL-G3/8-8Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-10Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-12Push-in L-fitting, rotatable · Push-in fittings
QSK-G3/8-8Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-10Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-12Push-in fitting, self-sealing · Push-in fittings
QSKL-G3/8-8Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-10Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-12Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G3/8-8Push-in fitting · Push-in fittings
QS-V0-G3/8-10Push-in fitting · Push-in fittings
QS-V0-G3/8-12Push-in fitting · Push-in fittings
QSL-V0-G3/8-8Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-10Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-12Push-in L-fitting · Push-in fittings
QST-V0-G3/8-8Push-in T-fitting · Push-in fittings
QST-V0-G3/8-10Push-in T-fitting · Push-in fittings
QST-V0-G3/8-12Push-in T-fitting · Push-in fittings
QS-G3/8-16Push-in fitting · Push-in fittings
QSL-G3/8-16Push-in L-fitting · Push-in fittings
QST-G3/8-16Push-in T-fitting · Push-in fittings
QS-3/8-6Push-in fitting · Push-in fittings
QSL-3/8-6Push-in L-fitting · Push-in fittings
QSLL-3/8-6Push-in L-fitting, long · Push-in fittings
QST-3/8-6Push-in T-fitting · Push-in fittings
KMV-1-24-10-LEDPlug socket with cable · Electrical accessories
U-3/8-20Silencer · Silencer
UOM-3/8Silencer · Silencer
MSSD-V-M16Plug socket · Electrical accessories
UC-3/8-20Silencer · Silencer
AMTE-M-LH-G38Silencer · Silencer
AMTE-M-H-G38Silencer · Silencer
UC-3/8Silencer · Silencer
NEDY-Distributor · Electrical accessories

İlgili Ürünler

CPE10-PRS-1/4-10-NPT
Festo CPE10-PRS-1/4-10-NPT
Detayları Gör

Festo

CPE10-PRS-1/4-10-NPT

MFR #CPE10-PRS-1/4-10-NPT

SKU #YLS4VEUICGTXUVK

CPE18-PRS-3/8-2-NPT
Festo CPE18-PRS-3/8-2-NPT
Detayları Gör

Festo

CPE18-PRS-3/8-2-NPT

MFR #CPE18-PRS-3/8-2-NPT

SKU #YLS9ECNI697VKPL

CPE14-3/2-PRS-3/8-3-NPT
Festo CPE14-3/2-PRS-3/8-3-NPT
Detayları Gör

Festo

CPE14-3/2-PRS-3/8-3-NPT

MFR #CPE14-3/2-PRS-3/8-3-NPT

SKU #YLSATWTDN168NX

CPE18-3/2-PRS-3/8-9-NPT
Festo CPE18-3/2-PRS-3/8-9-NPT
Detayları Gör

Festo

CPE18-3/2-PRS-3/8-9-NPT

MFR #CPE18-3/2-PRS-3/8-9-NPT

SKU #YLSZ8TUKWAFHZYL

CPE14-PRS-3/8-9-NPT
Festo CPE14-PRS-3/8-9-NPT
Detayları Gör

Festo

CPE14-PRS-3/8-9-NPT

MFR #CPE14-PRS-3/8-9-NPT

SKU #YLSXZJDMPUDQWBB

CPE10-3/2-PRS-1/4-4-NPT
Festo CPE10-3/2-PRS-1/4-4-NPT
Detayları Gör

Festo

CPE10-3/2-PRS-1/4-4-NPT

MFR #CPE10-3/2-PRS-1/4-4-NPT

SKU #YLSHUQKABUPTWYK

CPE10-PRS-1/4-8-NPT
Festo CPE10-PRS-1/4-8-NPT
Detayları Gör

Festo

CPE10-PRS-1/4-8-NPT

MFR #CPE10-PRS-1/4-8-NPT

SKU #YLS5YTZFP2AO2K2

CPE10-3/2-PRS-1/4-3-NPT
Festo CPE10-3/2-PRS-1/4-3-NPT
Detayları Gör

Festo

CPE10-3/2-PRS-1/4-3-NPT

MFR #CPE10-3/2-PRS-1/4-3-NPT

SKU #YLSJHUJQI6NT0H

CPE14-PRS-3/8-5-NPT
Festo CPE14-PRS-3/8-5-NPT
Detayları Gör

Festo

CPE14-PRS-3/8-5-NPT

MFR #CPE14-PRS-3/8-5-NPT

SKU #YLSBJWICHJG4E9

CPE18-PRS-3/8-7-NPT
Festo CPE18-PRS-3/8-7-NPT
Detayları Gör

Festo

CPE18-PRS-3/8-7-NPT

MFR #CPE18-PRS-3/8-7-NPT

SKU #YLSMSGFSUUTVAQ

Öne Çıkan Ürünler

MGPL25TN-200BZ-XC9
SMC MGPL25TN-200BZ-XC9
Detayları Gör

SMC

MGPL25TN-200BZ-XC9

MFR #MGPL25TN-200BZ-XC9

SKU #YLSPBI637NOCN0Y

NCDGFN25-0100
SMC NCDGFN25-0100
Detayları Gör

SMC

NCDGFN25-0100

MFR #NCDGFN25-0100

SKU #YLST0TDV975HLIN

NCDMC150-0600-X155US
SMC NCDMC150-0600-X155US
Detayları Gör

SMC

NCDMC150-0600-X155US

MFR #NCDMC150-0600-X155US

SKU #YLS8ICKGSKYC93L

MXS-AS16L
SMC MXS-AS16L
Detayları Gör

SMC

MXS-AS16L

MFR #MXS-AS16L

SKU #YLSAP0XXFGFSWY6

CDJ2L16-125Z-B
SMC CDJ2L16-125Z-B
Detayları Gör

SMC

CDJ2L16-125Z-B

MFR #CDJ2L16-125Z-B

SKU #YLS5V0RW2VJJR1A

CM2B40-75Z
SMC CM2B40-75Z
Detayları Gör

SMC

CM2B40-75Z

MFR #CM2B40-75Z

SKU #YLSOGLJ512KWTEJ

NCDJ2L10-300-B
SMC NCDJ2L10-300-B
Detayları Gör

SMC

NCDJ2L10-300-B

MFR #NCDJ2L10-300-B

SKU #YLSRRDWPL50RWQ2

VQC2101R-51
SMC VQC2101R-51
Detayları Gör

SMC

VQC2101R-51

MFR #VQC2101R-51

SKU #YLSSEY6NT0YLZ8G

MGPM25-100Z-XC4
SMC MGPM25-100Z-XC4
Detayları Gör

SMC

MGPM25-100Z-XC4

MFR #MGPM25-100Z-XC4

SKU #YLSH71U0VZZBO5I

SY5420-5DZ-01
SMC SY5420-5DZ-01
Detayları Gör

SMC

SY5420-5DZ-01

MFR #SY5420-5DZ-01

SKU #YLSQW9MERWL033X

İlgili Aramalar

Festo MVH-5-3/8-L-B fiyatFesto MVH-5-3/8-L-B teklif alFesto MVH-5-3/8-L-B satın alMVH-5-3/8-L-B fiyatMVH-5-3/8-L-B stok durumuFesto yedek parçaFesto MVH-5-3/8-L-B muadilFesto MVH-5-3/8-L-B teknik özellikler
