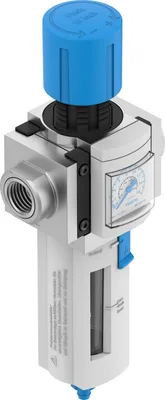

Festo MS4-LFR-AGC-D7-C-R-M
Filtre regülatör. Doğrudan kumandalı diyaframlı kontrol valfi. Minimum basınç histerezisi ve birincil basınç kompanzasyonu ile iyi kontrol karakteristiği. İyi partikül ve kondensat ayrıştırma. İkincil egzozlu veya egzozsuz. Yüksek debi. Kilitlenebilir döner düğme. Çıkış 2'den giriş 1'e tahliye için geri akış seçeneği entegredir. 40 mm ızgara ölçüsünde standart nominal debi <=1.800 l/min
Boyut4
SeriMS
Aktüatör kilidiKilitlemeli döner düğme
Montaj konumuDikey +/-5°
Filtrasyon derecesi5
Kondens tahliyesiManuel, döner
Ürün Hakkında
Filtre regülatör. Doğrudan kumandalı diyaframlı kontrol valfi. Minimum basınç histerezisi ve birincil basınç kompanzasyonu ile iyi kontrol karakteristiği. İyi partikül ve kondensat ayrıştırma. İkincil egzozlu veya egzozsuz. Yüksek debi. Kilitlenebilir döner düğme. Çıkış 2'den giriş 1'e tahliye için geri akış seçeneği entegredir. 40 mm ızgara ölçüsünde standart nominal debi <=1.800 l/min
Festo MS4-LFR-AGC-D7-C-R-M
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Boyut4
SeriMS
Aktüatör kilidiKilitlemeli döner düğme
Montaj konumuDikey +/-5°
Filtrasyon derecesi5
Kondens tahliyesiManuel, döner
TasarımManometreli filtre regülatör
Maks. kondensat hacmi19
Kontrolör fonksiyonuÇıkış basıncı sabit, İkincil tahliyeli, Geri akış fonksiyonlu
Hazne koruyucuPlastik hazne koruması
Kondensat ayırma derecesi75
Sembol00991589
Manometre (ANALOG) veya basınç göstergesi (DIGITAL)Manometreli
Çalışma basıncı0.08, 1.4
Çalışma basıncı0.8, 14
Basınç ayar aralığı0.5, 12
Maks. basınç histerezisi0.025
Maks. basınç histerezisi0.25
Maks. basınç histerezisi3.625
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)1200
Çalışma ortamıISO 8573-1:2010 [-:4:-] uyarınca basınçlı hava, İnert gaz
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Depolama sıcaklığı-10, 60
Gıda ile kullanıma uygunEk doküman bilgilerine bakınız
Çıkışta hava saflık sınıfıISO 8573-1:2010 [6:4:4] uyarınca basınçlı hava
Ortam sıcaklığı (akışkan)-10, 60
Ortam sıcaklığı-10, 60
Gözenek boyutu5
Ürün ağırlığı403
Montaj tipiAksesuarlı
Pnömatik bağlantı, port 1G3/8
Pnömatik bağlantı, port 2G3/8
Malzemelere ilişkin notRoHS uyumlu
Alt taban malzemesiBasınçlı döküm alüminyum
Kontrol paneli malzemesiPA, POM
Sızdırmazlık malzemesiNBR
Filtre malzemesiAmbalaj birimi
Gövde malzemesiBasınçlı döküm alüminyum
Membran malzemesiNBR
Hazne malzemesiMakrolon®
Ayırma plakası malzemesiPOM
Aksesuarlar 202
Festo MS4-LFR-AGC-D7-C-R-M motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| NPFC-Y-3G38-F | Y-fitting · Quick connectors | |
| NPFC-L-2G38-F | Elbow fitting · Quick connectors | |
| NPFC-T-3G38-F | T-fitting · Quick connectors | |
| NPFC-T-2G38-R38-FMF | T-fitting · Quick connectors | |
| NPFC-X-4G38-F | X-fitting · Quick connectors | |
| NPFC-T-G38-2R38-FMM | T-fitting · Quick connectors | |
| NPFC-D-2G38-M | Double nipple · Quick connectors | |
| NPFC-D-G38-G12-M | Double nipple · Quick connectors | |
| NPFC-S-2G38-F | Coupling sleeve · Quick connectors | |
| NPFC-R-G38-G18-F | Reducing coupling · Quick connectors | |
| NPFC-E1-2G38-FM | Extension · Quick connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-F | Reducing coupling · Quick connectors | |
| NPFC-D-2G38-M-P50 | Double nipple · Quick connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Quick connectors | |
| NPFC-H-G38-F | Bulkhead fitting · Quick connectors | |
| MS4-MV1 | Module connector · Mounting accessories | |
| MS4-RB-10 | Covering kit · Mounting accessories | |
| NPFC-DS-G38-G38-M | Double nipple · Quick connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Quick connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Quick connectors | |
| MS4-WP-F1A | Mounting bracket · Mounting accessories | |
| MS4-MV1-F1A | Module connector · Mounting accessories | |
| CK-3/8-PK-6 | Quick connector · Quick connectors | |
| CK-3/8-PK-9 | Quick connector · Quick connectors | |
| LCK-3/8-PK-6 | Elbow quick connector · Quick connectors | |
| LCK-3/8-PK-9 | Elbow quick connector · Quick connectors | |
| TCK-3/8-PK-6 | T-quick connector · Quick connectors | |
| TCK-3/8-PK-9 | T-quick connector · Quick connectors | |
| CK-3/8-PK-13 | Quick connector · Quick connectors | |
| MS4-MV-EX | Module connector · Mounting accessories | |
| MS4-WP-EX | Mounting bracket · Mounting accessories | |
| MS4-6-AMV | Module connector · Mounting accessories | |
| MS4-RMV | Module connector · Mounting accessories | |
| MS4-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS4-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS4-A-IPM-80 | Branching module · Mounting accessories | |
| MS4-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| MS4-6-AMV-EX | Module connector · Mounting accessories | |
| MS4-RMV-EX | Module connector · Mounting accessories | |
| MS4-WPM-D | Mounting bracket · Mounting accessories | |
| MS4-WBM | Mounting bracket · Mounting accessories | |
| MS4-WPM-2D | Mounting bracket · Mounting accessories | |
| MS4-WR | Mounting bracket · Mounting accessories | |
| MS4-WP | Mounting bracket · Mounting accessories | |
| MS4-WB | Mounting bracket · Mounting accessories | |
| MS4-WRS | Hex nut · Mounting accessories | |
| MS4-MVM | Module connector · Mounting accessories | |
| CK-3/8-PK-6-KU | Quick connector · Quick connectors | |
| CK-3/8-PK-9-KU | Quick connector · Quick connectors | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| MS4-LFP-C | Filter cartridge · General accessories |
İlgili Ürünler
Detayları Gör
Festo
MS6-LFR-AGE-D7-C-R-V
MFR #MS6-LFR-AGE-D7-C-R-V
SKU #YLS0UMEDKC40YT6
Detayları Gör
Festo
MSB6-1/2:J1:F3-WP
MFR #MSB6-1/2:J1:F3-WP
SKU #YLSMR04WUAHUEVA
Detayları Gör
Festo
MS6-LFR-AGE-D6-E-R-M-AS
MFR #MS6-LFR-AGE-D6-E-R-M-AS
SKU #YLSZSFTUHD7A3I7
Detayları Gör
Festo
MSB6-1/2:J120:M1-WP
MFR #MSB6-1/2:J120:M1-WP
SKU #YLSA2SKELKFQP6
Detayları Gör
Festo
MS6-LFR-AGE-D7-E-R-M
MFR #MS6-LFR-AGE-D7-E-R-M
SKU #YLSNZFB1UVAECIL
Detayları Gör
Festo
MSB6-1/2:J121:M1-WP
MFR #MSB6-1/2:J121:M1-WP
SKU #YLSODTQSWMDH2O
Detayları Gör
Festo
MS6-LFR-AGE-D7-E-R-M-MPA-AS
MFR #MS6-LFR-AGE-D7-E-R-M-MPA-AS
SKU #YLSFIPASJZRVXL
Detayları Gör
Festo
MSB6-1/2:J1:M1-WP
MFR #MSB6-1/2:J1:M1-WP
SKU #YLSBUDQ2YSLP8X
Detayları Gör
Festo
MS6-LFR-AGE-D7-E-R-V
MFR #MS6-LFR-AGE-D7-E-R-V
SKU #YLSI7IVJYMMB5W
Öne Çıkan Ürünler
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Festo MS4-LFR-AGC-D7-C-R-M fiyatFesto MS4-LFR-AGC-D7-C-R-M teklif alFesto MS4-LFR-AGC-D7-C-R-M satın alMS4-LFR-AGC-D7-C-R-M fiyatMS4-LFR-AGC-D7-C-R-M stok durumuFesto yedek parçaFesto MS4-LFR-AGC-D7-C-R-M muadilFesto MS4-LFR-AGC-D7-C-R-M teknik özellikler
