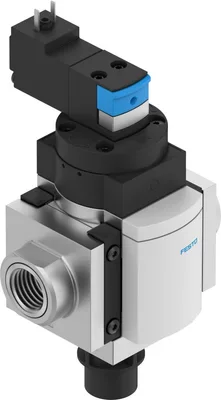

Festo MS4-EE-AGC-V24
Açma/kapama valfi. Pnömatik tesisatların basınçlandırılması ve tahliyesi için elektrikli 3/2 yollu valf. 3 numaralı porta susturucu takılabilir veya egzoz havası yönlendirilebilir. Besleme gerilimi 24 V DC, 110, 230 V AC. İsteğe bağlı manometre ve basınç sensörü ile. Solenoid bobinli, soketsiz. 40 mm ızgara ölçüsünde standart nominal debi <=1.800 l/min
SeriMS
Boyut4
TasarımPistonlu sürgülü valf
Kumanda tipiElektrikli
Egzoz havası fonksiyonuKısılamaz
Manuel kumandaKilitlemeli, Kilitlemesiz
Ürün Hakkında
Açma/kapama valfi. Pnömatik tesisatların basınçlandırılması ve tahliyesi için elektrikli 3/2 yollu valf. 3 numaralı porta susturucu takılabilir veya egzoz havası yönlendirilebilir. Besleme gerilimi 24 V DC, 110, 230 V AC. İsteğe bağlı manometre ve basınç sensörü ile. Solenoid bobinli, soketsiz. 40 mm ızgara ölçüsünde standart nominal debi <=1.800 l/min
Festo MS4-EE-AGC-V24
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
SeriMS
Boyut4
TasarımPistonlu sürgülü valf
Kumanda tipiElektrikli
Egzoz havası fonksiyonuKısılamaz
Manuel kumandaKilitlemeli, Kilitlemesiz
Sıfırlama tipiMekanik yay
Pilotlama tipiPilot kumandalı
Sembol00991008
Valf fonksiyonu3/2 yollu, tek bobinli, normalde kapalı
Çalışma basıncı0.4, 1.4
Çalışma basıncı4, 14
BindirmeBindirmeli
C değeri9.5
b değeri0.44
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)2000
Çalışma oranı100%
Karakteristik bobin verileri24 V DC: 1.5 W
Çalışma ortamıISO 8573-1:2010 [7:4:4] uyarınca basınçlı hava, İnert gaz
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
Malzemelere ilişkin notRoHS uyumlu
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Ortam sıcaklığı (akışkan)-10, 60
Koruma sınıfıIP65
Ortam sıcaklığı-10, 60
Gıda ile kullanıma uygunEk doküman bilgilerine bakınız
Montaj tipiSeçenekler:, Hat içi montaj, Aksesuarlarla
Montaj konumuHerhangi
Akış yönüGeri döndürülemez
Ürün ağırlığı405
Pnömatik bağlantı, port 1G3/8
Pnömatik bağlantı, port 2G3/8
Pnömatik bağlantı, port 3G1/4
Pilot hava beslemesiDahili
Elektrik bağlantısıTo EN 175301-803
Sızdırmazlık malzemesiNBR
Gövde malzemesiBasınçlı döküm alüminyum
Aksesuarlar 213
Festo MS4-EE-AGC-V24 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| MEB-LD-12-24DC | Illuminating seal · Electrical accessories | |
| MSSD-EB | Plug socket · Electrical accessories | |
| KMEB-1-24-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-1-24-5-LED | Plug socket with cable · Electrical accessories | |
| QSL-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QSY-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSY-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-3/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-10-B | Push-in T-fitting · Push-in fittings | |
| QSTF-3/8-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-3/8-10-B | Multiple distributor · Push-in fittings | |
| QST-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSLV6-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-3/8-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-16 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QST-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSY-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G3/8-12 | Push-in Y-fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QSL-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G3/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G3/8-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV3-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G3/8-12 | Multiple distributor · Push-in fittings | |
| QSR-G3/8-10 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G3/8-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G3/8-10 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G3/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSTF-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QSTF-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G3/8-10 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G3/8-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G3/8-8 | Multiple distributor · Push-in fittings | |
| QST-V0-G3/8-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G3/8-12 | Push-in T-fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-16 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-16 | Push-in T-fitting · Push-in fittings | |
| QSK-G3/8-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G3/8-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G3/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G3/8-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G3/8-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G3/8-12 | Push-in L-fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| QSL-3/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-3/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QST-3/8-6 | Push-in T-fitting · Push-in fittings | |
| KMEB-1-24-10-LED | Plug socket with cable · Electrical accessories | |
| QST-3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSW-3/8-10 | Push-in fitting · Push-in fittings | |
| QSW-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G3/8-10-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G3/8-12-20 | Push-in L-fitting · Push-in fittings | |
| QST-G3/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-10-20 | Push-in T-fitting · Push-in fittings | |
| QST-G3/8-12-20 | Push-in T-fitting · Push-in fittings | |
| NPFC-Y-3G38-F | Y-fitting · Quick connectors | |
| NPFC-L-2G38-F | Elbow fitting · Quick connectors | |
| NPFC-T-3G38-F | T-fitting · Quick connectors | |
| NPFC-T-2G38-R38-FMF | T-fitting · Quick connectors | |
| NPFC-X-4G38-F | X-fitting · Quick connectors | |
| NPFC-T-G38-2R38-FMM | T-fitting · Quick connectors | |
| NPFC-D-2G38-M | Double nipple · Quick connectors | |
| NPFC-D-G38-G12-M | Double nipple · Quick connectors | |
| NPFC-S-2G38-F | Coupling sleeve · Quick connectors | |
| NPFC-R-G38-G18-F | Reducing coupling · Quick connectors | |
| NPFC-E1-2G38-FM | Extension · Quick connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Quick connectors | |
| NPFC-R-G38-G14-F | Reducing coupling · Quick connectors | |
| NPFC-D-2G38-M-P50 | Double nipple · Quick connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Quick connectors | |
| NPFC-H-G38-F | Bulkhead fitting · Quick connectors | |
| MS4-MV1 | Module connector · Mounting accessories | |
| MS4-RB-10 | Covering kit · Mounting accessories | |
| NPFC-DS-G38-G38-M | Double nipple · Quick connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Quick connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Quick connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Quick connectors | |
| MS4-WP-F1A | Mounting bracket · Mounting accessories | |
| MS4-MV1-F1A | Module connector · Mounting accessories | |
| CK-3/8-PK-6 | Quick connector · Quick connectors | |
| CK-3/8-PK-9 | Quick connector · Quick connectors | |
| LCK-3/8-PK-6 | Elbow quick connector · Quick connectors | |
| LCK-3/8-PK-9 | Elbow quick connector · Quick connectors | |
| TCK-3/8-PK-6 | T-quick connector · Quick connectors | |
| TCK-3/8-PK-9 | T-quick connector · Quick connectors | |
| CK-3/8-PK-13 | Quick connector · Quick connectors | |
| MS4-AEND | Mounting plate · Mounting accessories | |
| MS4-AGA-EX | Sub-base-SET · Mounting accessories | |
| MS4-AGB-EX | Sub-base-SET · Mounting accessories | |
| MS4-AGC-EX | Sub-base-SET · Mounting accessories | |
| MS4-MV-EX | Module connector · Mounting accessories | |
| MS4-WP-EX | Mounting bracket · Mounting accessories | |
| MS4-6-AMV | Module connector · Mounting accessories | |
| MS4-RMV | Module connector · Mounting accessories | |
| MS4-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS4-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS4-A-IPM-80 | Branching module · Mounting accessories | |
| MS4-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| KMEB-3-24-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-3-24-5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-3-24-2.5 | Plug socket with cable · Electrical accessories | |
| KMEB-3-24-5 | Plug socket with cable · Electrical accessories | |
| MS4-6-AMV-EX | Module connector · Mounting accessories | |
| MS4-RMV-EX | Module connector · Mounting accessories | |
| MS4-WPM-D | Mounting bracket · Mounting accessories | |
| MS4-WBM | Mounting bracket · Mounting accessories | |
| MS4-WPM-2D | Mounting bracket · Mounting accessories | |
| MS4-AGA | Sub-base-SET · Mounting accessories | |
| MS4-AGB | Sub-base-SET · Mounting accessories | |
| MS4-AGC | Sub-base-SET · Mounting accessories | |
| MS4-WP | Mounting bracket · Mounting accessories | |
| MS4-WB | Mounting bracket · Mounting accessories | |
| MS4-MVM | Module connector · Mounting accessories | |
| MS4-END | Cover cap · Mounting accessories | |
| CK-3/8-PK-6-KU | Quick connector · Quick connectors | |
| CK-3/8-PK-9-KU | Quick connector · Quick connectors |
İlgili Ürünler
Detayları Gör
Festo
MS4(N)-DE
MFR #MS4(N)-DE
SKU #YLSYPMUJ5U9EQIH
Detayları Gör
Festo
VPPE-3-1-1/4-6-420-E1-F1A
MFR #VPPE-3-1-1/4-6-420-E1-F1A
SKU #YLSWDBTTICLA2KL
Detayları Gör
Festo
VPPE-3-1-1/4-6-420-E1T-F1A
MFR #VPPE-3-1-1/4-6-420-E1T-F1A
SKU #YLSBPNHJ3RMXXMI
Detayları Gör
Festo
VPPE-3-1-1/4-10-420-E1T-F1A
MFR #VPPE-3-1-1/4-10-420-E1T-F1A
SKU #YLSM2OFNCBYIG
Detayları Gör
Festo
VPPE-3-1-1/4-10-420-E1-F1A
MFR #VPPE-3-1-1/4-10-420-E1-F1A
SKU #YLSL17ZHMCVKDM
Detayları Gör
Festo
VPPE-3-1-1/4-2-420-E1T-F1A
MFR #VPPE-3-1-1/4-2-420-E1T-F1A
SKU #YLSKQHX9SCY1E2T
Detayları Gör
Festo
VPPE-3-1-1/4-2-420-E1-F1A
MFR #VPPE-3-1-1/4-2-420-E1-F1A
SKU #YLSPMEV3O6KTPGV
Detayları Gör
Festo
VPPE-3-1-1/4-6-MR-E1-F1A
MFR #VPPE-3-1-1/4-6-MR-E1-F1A
SKU #YLS8ARO0HDHAUUI
Detayları Gör
Festo
VPPE-3-1-1/4-10-MR-E1-F1A
MFR #VPPE-3-1-1/4-10-MR-E1-F1A
SKU #YLS8I7GHDJKSH4F
Öne Çıkan Ürünler
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
İlgili Aramalar
Festo MS4-EE-AGC-V24 fiyatFesto MS4-EE-AGC-V24 teklif alFesto MS4-EE-AGC-V24 satın alMS4-EE-AGC-V24 fiyatMS4-EE-AGC-V24 stok durumuFesto yedek parçaFesto MS4-EE-AGC-V24 muadilFesto MS4-EE-AGC-V24 teknik özellikler
