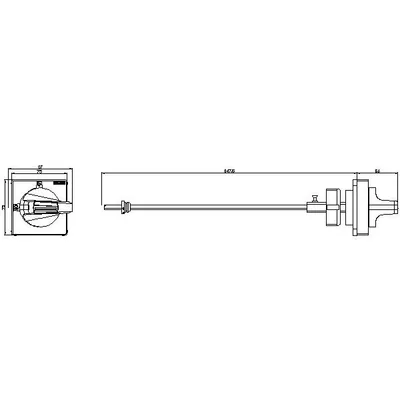

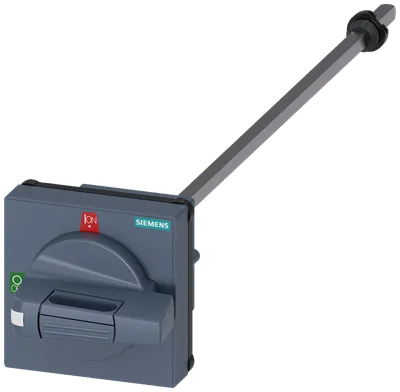

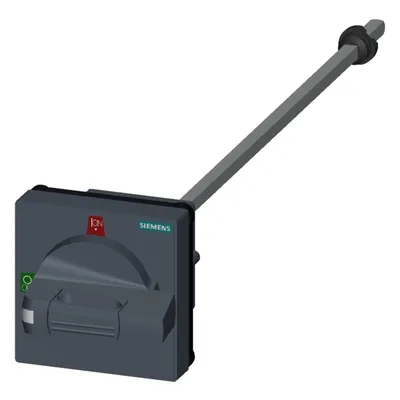

Siemens 8UD1171-1AD21

door-coupling rotary operating mechanism standard, with tolerance compensation, 75x75 mm, shaft 6x6 mm, handle size 45 mm, accessories for 3KD0 size 01/02

SiemensMFR # 8UD1171-1AD21SKU # YLSUTQZ79TUOFR1

product brand nameSENTRON

product designationDoor mounted rotary operator

design of the productstandard with tolerance compensation

design of handleGray

design of the door lock systemDoor interlocking

length of handle45 mm

Have questions?Chat on WhatsApp

About This Product

door-coupling rotary operating mechanism standard, with tolerance compensation, 75x75 mm, shaft 6x6 mm, handle size 45 mm, accessories for 3KD0 size 01/02

Siemens 8UD1171-1AD21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDoor mounted rotary operator

design of the productstandard with tolerance compensation

design of handleGray

design of the door lock systemDoor interlocking

size of cross-section of the shaft of door-coupling rotary operating mechanism6x6 mm

size format of the masking frame of door-coupling rotary operating mechanism75x 75 mm

length of handle45 mm

length of shaft of door-coupling rotary operating mechanism300 mm

protection class IPIP65

suitability for usefor 3KD size 01 and 02

Product details

product descriptionwithout lighting

product feature interlockYes

extension shaftNo

handle for emergency-OFF functionNo

product feature lockableYes

Accessories

accessoriesDoor-coupling rotary operating mechanism

display version for switch position indicator0-I

Mechanical Design

height105 mm

width88 mm

depth445 mm

Net Weight391 g
