How can I get a price quote for Siemens 7MH5105-2PD00?

You can request a fast quote for Siemens 7MH5105-2PD00 from Yılsa Engineering. Reference part number CEY-8EF3B0380D4C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7MH5105-2PD00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7MH5105-2PD00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7MH5105-2PD00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 7MH5105-2PD00

Load cell SIWAREX WL250 ST-S SA 50kg C3, strain gauge in s-type / single point design, rated load 50kg, accuracy class C3, cable length 6m, 4 wire, material stainless steel EN 1.4542, degree of protection IP67

SiemensMFR # 7MH5105-2PD00SKU # CEY-8EF3B0380D4C

manufacturer's nameSiemens

product brand nameSIWAREX WL250

product designationWeighing Technology - Load cell

supplier nameSiemens

depth15.06 mm

width50.8 mm

Have questions?Chat on WhatsApp

About This Product

Siemens 7MH5105-2PD00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

manufacturer's nameSiemens

product brand nameSIWAREX WL250

product designationWeighing Technology - Load cell

supplier nameSiemens

marketing text / 1 / as sloganThe right load cell for every application

marketing textSIWAREX load cells from Siemens are designed for use in both static and dynamic weighing systems. They enable high-precision weight detection in platform, hopper, belt, or crane scales as well as in dosing and filling systems. The load cells work on the basis of full-bridge, analog strain gauges (EMS). They cover a wide range of rated loads – from a few kilograms to several tons – and are available in a variety of designs and materials. They are suitable for use in harsh industrial environments and meet degrees of protection up to IP68.

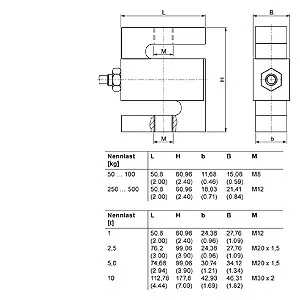

design, dimensions and weights

depth15.06 mm

width50.8 mm

height60.96 mm

net weight0.6 kg

product type designationSIWAREX WL250 load cell

designtensile force / single-point

materialcorrosion-free steel

electrical data

design of the productstrain gauge

design of the interfaceanalog

accuracy classC3

ambient conditions

ambient temperature / during operation / minimum-35 °C

ambient temperature / during operation / maximum65 °C

protection class IPIP67

product feature / explosion-protected designNo

Accessories 7

Genuine accessories that can be used with the Siemens 7MH5105-2PD00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
7MH3701-1AA1	Aksesuar
7MH4702-8AG	Aksesuar
7MH4710-2AA	Aksesuar · Connection box
7MH5001-0AA00	Aksesuar · Connection box
7MH5001-0AA20	Aksesuar · Connection box
7MH5001-0AD20	Aksesuar · Connection box
7MH5705-2PJ10	Aksesuar
