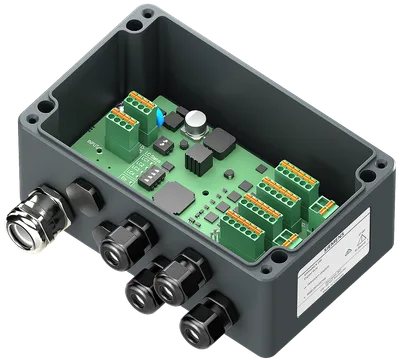

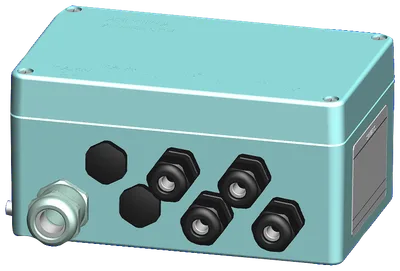

Siemens 7MH5001-0AD20

SIWAREX DB, four-channel digital junction box for additional diagnostic options for analog load cells / strain gauges (full bridges) for SIWAREX WP weighing module, 1xRS485, 4xLC load cell interface (1-4mV/V), aluminum die-cast housing, protection class: IP66

SiemensMFR # 7MH5001-0AD20SKU # YLSFHNJJX5IHAJN

Product type designationSIWAREX DB

Type of supply voltage24 V DC

Number of digital inputs0

CE markYes

UKCA markYes

UL approvalYes

Have questions?Chat on WhatsApp

About This Product

Siemens 7MH5001-0AD20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSIWAREX DB

Supply voltage

Type of supply voltage24 V DC

Digital inputs

Number of digital inputs0

Degree and class of protection

IP degree of protectionIP66, Nema 4X for devices without explosion protection; IP65 for devices with explosion protection

Standards, approvals, certificates

CE markYes

UKCA markYes

UL approvalYes

RoHS conformityYes

China RoHS complianceYes

Use in hazardous areas

ATEX markingII 3 G Ex ec IIC T4 Gc and II 3 D Ex tc IIIC T120 °C Dc

ATEX certificateDEKRA 21 ATEX 0025X

Ambient temperature during operation

min.-20 °C

max.80 °C

Ambient temperature during storage/transportation

min.-50 °C

max.100 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Connection I/O signals

Connection methodScrew terminals

Conductor cross-section in mm²

— Connectable cable cross-sections for flexible cables with end sleeve, min.0.25 mm²

— Connectable cable cross-sections for flexible cables with end sleeve, max.1.5 mm²

Conductor cross-section acc. to AWG

— Connectable cable cross-sections for flexible cables with end sleeve, min.24

— Connectable cable cross-sections for flexible cables with end sleeve, max.16

Mechanics/material

Design of housingDie-cast aluminum

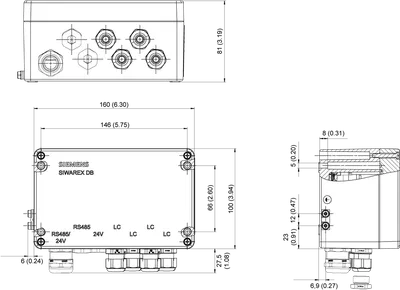

Dimensions

Width160 mm

Height100 mm

Depth81 mm

Weights

Weight, approx.0.95 kg

Scope of supply

Delivery quantity in pieces1

Usable in the following products

Product 1SIWAREX WP2x1

Product 2SIWAREX WP3x1
