How can I get a price quote for Siemens 7KM2200-2EA00-1JB1?

You can request a fast quote for Siemens 7KM2200-2EA00-1JB1 from Yılsa Engineering. Reference part number YLSZXGXTJE6ZRPY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 7KM2200-2EA00-1JB1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 7KM2200-2EA00-1JB1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 7KM2200-2EA00-1JB1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

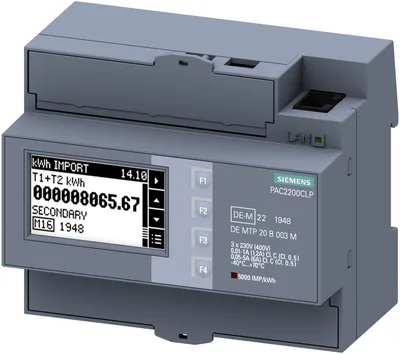

Siemens 7KM2200-2EA00-1JB1

SENTRON 7KM measuring device PAC2200 CLP, L-L: 400 V, L-N: 230 V, x/1 A & x/5 A DIN rail instrument, 6 MW, 3-phase, LAN interface, Modbus TCP, LC display, MID approval, screw terminal, with internal power supply, apparent / active / reactive energy, certified load profile memory measurement and calibration regulation-compliant acc. to PTB-A 50.7

SiemensMFR # 7KM2200-2EA00-1JB1SKU # YLSZXGXTJE6ZRPY

product brand nameSENTRON

product designationEnergy counter

product quality calibratedYes

type of signalS0

design of the energy counterSolid-state

design of the pulse outputElectrical

Have questions?Chat on WhatsApp

About This Product

Siemens 7KM2200-2EA00-1JB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationEnergy counter

product quality calibratedYes

type of measured value detection load profileYes

type of signalS0

design of the energy counterSolid-state

design of the pulse outputElectrical

General technical data

type of the power supply networkthree-wire/four-wire

between L and L minimum3 V

between L and L maximum480 V

between N and L minimum3 V

between N and L maximum276 V

Protection class

protection class IPIP40

Main circuit

minimum45 Hz

maximum65 Hz

operational current rated value5 A

Suitability

suitability for useImport/export

Product details

special product featureMID + CLP

Product function

product functionapparent/active/reactive energy

backstopYes

blocking codeYes

Display and operation

design of the displayLCD

display versiondigital

Communication

protocol is supportedModbus TCP

Measuring inputs

between (PE)N and L at AC maximum rated value230 V

between the line conductors at AC maximum rated value400 V

Number

number of characters that can be displayed12

Mechanical Design

number of modular width units6

fastening methodDIN rail device

Net Weight326 g

Accessories 29

Genuine accessories that can be used with the Siemens 7KM2200-2EA00-1JB1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
7KM9300-0PP20-0AA0	Aksesuar
3NJ6930-3BE23	Aksesuar · Fuse switch disconnectors
3NJ6930-3BE13	Aksesuar · Fuse switch disconnectors
3NJ6930-3BG23	Aksesuar · Fuse switch disconnectors
3NJ6930-3BF13	Aksesuar · Fuse switch disconnectors
3NJ6940-3BL23	Aksesuar · Fuse switch disconnectors
3NJ6940-3BK23	Aksesuar · Fuse switch disconnectors
3NJ6940-3BK13	Aksesuar · Fuse switch disconnectors
3NJ6940-3BJ23	Aksesuar · Fuse switch disconnectors
3NJ6940-3BJ13	Aksesuar · Fuse switch disconnectors
3NJ6940-3BH13	Aksesuar · Fuse switch disconnectors
3NJ6920-3BE23	Aksesuar · Fuse switch disconnectors
3NJ6920-3BE13	Aksesuar · Fuse switch disconnectors
3NJ6930-3BD13	Aksesuar · Fuse switch disconnectors
3NJ6920-3BD23	Aksesuar · Fuse switch disconnectors
3NJ4915-2KB11	Aksesuar · Fuse switch disconnectors
3NJ4915-2KA11	Aksesuar · Fuse switch disconnectors
3NJ4915-2HB11	Aksesuar · Fuse switch disconnectors
3NJ4915-2HA11	Aksesuar · Fuse switch disconnectors
3NJ4915-2GB11	Aksesuar · Fuse switch disconnectors
3NJ4915-2GA11	Aksesuar · Fuse switch disconnectors
3NJ4915-1FB11	Aksesuar · Fuse switch disconnectors
3NJ4915-1FA11	Aksesuar · Fuse switch disconnectors
3NJ6930-3BG13	Aksesuar · Fuse switch disconnectors
3NJ6930-3BF23	Aksesuar · Fuse switch disconnectors
3NJ6940-3BL13	Aksesuar · Fuse switch disconnectors
3NJ6940-3BH23	Aksesuar · Fuse switch disconnectors
3NJ6920-3BD13	Aksesuar · Fuse switch disconnectors
3NJ6930-3BD23	Aksesuar · Fuse switch disconnectors
