How can I get a price quote for Siemens 3NJ6930-3BF13?

You can request a fast quote for Siemens 3NJ6930-3BF13 from Yılsa Engineering. Reference part number YLS9PXKNA53SPHZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NJ6930-3BF13 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NJ6930-3BF13 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NJ6930-3BF13?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

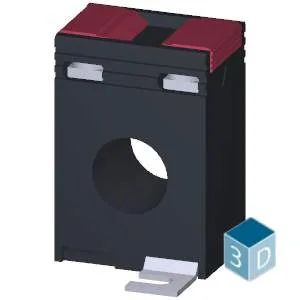

Siemens 3NJ6930-3BF13

Accessory for 3NJ62/63 Switch disconnector with fuses In-line design, plug-in, NH1 current transformer 200/1 A, Cl. 0.5, legal-for-trade calibrated Bushing opening 15,2mm

SiemensMFR # 3NJ6930-3BF13SKU # YLS9PXKNA53SPHZ

product brand nameSENTRON

product designationCurrent transformer

product quality calibratedYes

operating apparent power rated value2.5 V·A

operating voltage0.72 kV

insulation voltage rated value3 kV

Have questions?Chat on WhatsApp

About This Product

Accessory for 3NJ62/63 Switch disconnector with fuses In-line design, plug-in, NH1 current transformer 200/1 A, Cl. 0.5, legal-for-trade calibrated Bushing opening 15,2mm

Siemens 3NJ6930-3BF13

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCurrent transformer

design of the productaccessory for switch disconnector with fuses 3NJ6

product quality calibratedYes

operating apparent power rated value2.5 V·A

operating voltage0.72 kV

insulation voltage rated value3 kV

designation of overcurrent limiting factorFS 5

operational current rated value maximum240 A

at input rated value200 A

at output rated value1 A

accuracy class of the current transformerclass 0.5

value range of the operating frequency50/60 Hz

Protection class

protection class IPIP20

suitability for use for outside useNo

suitability for use for interior useYes

product feature touch protectionYes

Short circuit

formula for rated short-time thermal current (Ith) for 1 s according to IEC 61869-260 x Ipr

formula for rated dynamic current (Idyn) according to IEC 61869-22.5 x Ith or 150 x Ipr

Connections

type of electrical connection at outputscrew-type terminals

Mechanical Design

height65 mm

width44 mm

depth48 mm

fastening methodmounting

diameter of inlet opening15.2 mm

outer diameter of the push-through conductor maximum15 mm

Net Weight163 g

Environmental conditions

minimum-10 °C

maximum55 °C
