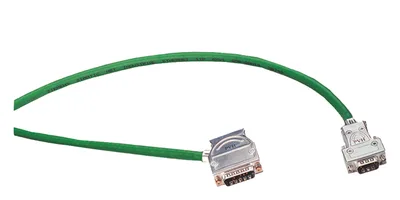

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1850-0AH10

ITP Standard Cable for Industrial Ethernet J-02YSCY 2x2X0.64/1.5 PIMF F, installation cable 2x2-core for on-site assembly of connector, non-assembled, Sold by the meter Minimum order quantity: 20 m delivery unit: max. 1000 m.

SiemensMFR # 6XV1850-0AH10SKU # CEY-8EF3B0311D09

product brand nameSIMATIC NET

cable designationJ-02YSCY 2x2x0,64/1,5 PIMF F GN

wire lengthsold by the meter

at 10 MHz / maximum0.057 dB/m

at 100 MHz / maximum0.18 dB/m

at 300 MHz / maximum0.31 dB/m

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1850-0AH10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useUsed in the construction of Industrial Twisted Pair (ITP) networks

cable designationJ-02YSCY 2x2x0,64/1,5 PIMF F GN

wire lengthsold by the meter

electrical data

at 10 MHz / maximum0.057 dB/m

at 100 MHz / maximum0.18 dB/m

at 300 MHz / maximum0.31 dB/m

at 1 MHz ... 100 MHz100 Ω

at 100 MHz … 300 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz15 %

of the characteristic impedance at 100 MHz ... 300 MHz45 %

transfer impedance per length / at 10 MHz2 mΩ/m

loop resistance per length / maximum124 mΩ/m

insulation resistance coefficient5000 GΩ·m

RMS value165 V

maximum225 V

mechanical data

number of electrical cores4

design of the shieldOverlapped aluminum-clad foil (for each core), sheathed in an overall braided shield of tin-plated copper wires

of AWG22 insulated conductor0.64 mm

of inner conductor0.64 mm

of the wire insulation1.5 mm

width / of cable sheath9.2 mm

symmetrical tolerance of width / of cable sheath0.5 mm

thickness / of cable sheath6 mm

symmetrical tolerance of thickness / of cable sheath0.5 mm

of the wire insulationpolyethylene (PE)

of cable sheathPVC

of the insulation of data wireswhite/blue, white/orange

of cable sheathgreen

with single bend / minimum permissible30 mm

with multiple bends / minimum permissible45 mm

tensile load / maximum80 N

weight per length96 kg/km

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

during installation-40 ... +70 °C

fire behaviorflame resistant according to IEC 60332-1

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo

UL/ETL style / 600 V RatingNo

EAC approvalYes

CE markingYes

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
