How can I get a price quote for Siemens 6XV1830-5FH10?

You can request a fast quote for Siemens 6XV1830-5FH10 from Yılsa Engineering. Reference part number CEY-8EF3B031164F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1830-5FH10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1830-5FH10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1830-5FH10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

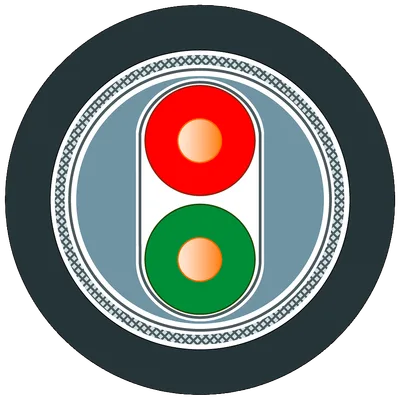

Siemens 6XV1830-5FH10

PB FC Process Cable GP/ Ethernet-APL cable GP, bus cable for IEC 61158-2 (PB) and IEC TS 60079-47 (2-WISE) sheath color black for Ex applications 2-core shielded, sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.

SiemensMFR # 6XV1830-5FH10SKU # CEY-8EF3B031164F

product brand nameSIMATIC NET

cable designation02YSY (ST) CY 1x2x1,0/2,55-100 SW OE FR

wire lengthsold by the meter

at 38.4 kHz / maximum0.003 dB/m

at 3 MHz19 dB

rated value100 Ω

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1830-5FH10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useUse in fieldbus systems according to IEC 61158-2 (e.g. PROFIBUS PA) and IEC TS 60079-47 (2-WISE) / for APL (cable type A), suitable for non-Ex applications

cable designation02YSY (ST) CY 1x2x1,0/2,55-100 SW OE FR

wire lengthsold by the meter

electrical data

at 38.4 kHz / maximum0.003 dB/m

at 3 MHz19 dB

rated value100 Ω

at 31.25 kHz100 Ω

at 3 MHz … 20 MHz100 Ω

of the characteristic impedance at 31.25 kHz20 %

of the characteristic impedance at 3 MHz … 20 MHz15 %

loop resistance per length / maximum44 mΩ/m

shield resistance per length / maximum6.5 Ω/km

capacity per length / at 1 kHz92 pF/m

inductance per length0.65 µH/m

RMS value80 V

mechanical data

number of electrical cores2

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires

type of electrical connection / FastConnectYes

of inner conductor1.05 mm

of the wire insulation2.55 mm

of the inner sheath of the cable5.4 mm

of cable sheath8 mm

symmetrical tolerance of the outer diameter / of cable sheath0.4 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cablePVC

of cable sheathPVC

of the insulation of data wiresred/green

of cable sheathBlack

with single bend / minimum permissible40 mm

with multiple bends / minimum permissible80 mm

tensile load / maximum150 N

weight per length103 kg/km

ambient conditions

during operation-40 ... +80 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during installation-20 ... +80 °C

noteelectrical properties measured at 20 °C

ambient condition / for operationTransfer rate of cable: 31.25 Kbit/s

fire behaviorflame resistant according to IEC 60332-3-24 (Category C)

class of burning behaviour / according to EN 13501-6Eca

to mineral oilconditional resistance

to greaseConditional resistance

to waterconditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(UL)us, CMG / CL3 / Sun Res

UL/ETL style / 600 V RatingYes

EAC approvalYes

CE markingYes

RoHS conformityYes

IEC TS 60079-47 (2-WISE) / for APL (cable type A)Yes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
