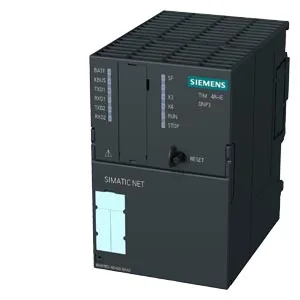

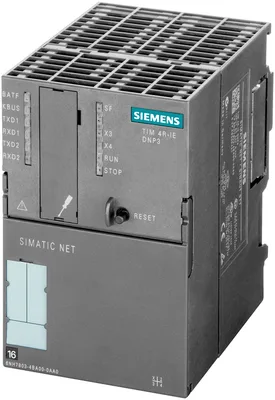

Siemens 6NH7803-4BA00-0AA0

- - spare part - - TIM 4R-IE DNP3 communications module for SIMATIC S7-300, S7-400, PC; with two RS232/RS485 interfaces for DNP3 communication via standard WANs and two RJ45 interfaces for DNP3 communication via IP-based networks (WAN or LAN).

SiemensMFR # 6NH7803-4BA00-0AA0SKU # CEY-8EF3B0385AB7

product brand nameSIMATIC NET

for Industrial Ethernet10 ... 100 Mbit/s

according to RS 2329600 ... 115200 bit/s

for power supply1

of Industrial Ethernet interfaceRJ45 port

for power supply2-pole plugable terminal block

Have questions?Chat on WhatsApp

About This Product

Siemens 6NH7803-4BA00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

for Industrial Ethernet10 ... 100 Mbit/s

according to RS 2329600 ... 115200 bit/s

interfaces

number of interfaces / according to Industrial Ethernet2

for external data transmission / according to RS 2322

for power supply1

of Industrial Ethernet interfaceRJ45 port

at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485

at interface 2 / for external data transmission9-pole D-sub connector, RS232 can be switched to RS485

for power supply2-pole plugable terminal block

C-PLUGYes

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage24 V

supply voltage20.4 ... 28.8 V

supply voltage / external / at DC / rated value24 V

supply voltage / external / at DC / rated value20.4 ... 28.8 V

from backplane bus / at DC / at 24 V / maximum0.2 A

from external supply voltage / at DC / at 24 V / maximum0.17 A

power loss [W]4.6 W

product extension / optional / backup batteryYes

type of batteryLithium AA / 3.6 V / 2.3 Ah

typical100 µA

maximum160 µA

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 double width

width80 mm

height125 mm

depth120 mm

net weight0.4 kg

product features, product functions, product components / general

noteNumber of TIMs per S7‑300 / S7-400: 1

with RS 232 interface / maximum6 m

with RS 485 interface / maximum30 m

performance data / S7 communication

maximum5; only via LAN

with PG connections / maximum2

with OP connections / maximum1

PG/OP communicationYes

performance data / telecontrol

node stationYes

substationYes

TIM control centerYes

DNP3Yes

SINAUT ST1 protocolNo

SINAUT ST7 protocolNo

Modbus RTUYes

product function / data buffering if connection is abortedYes; 200,000 data points with one master

for Ethernet / maximum8

with RS 232 interface / maximum1

number of Modbus RTU devices / maximum1

product functions / management, configuration, engineering

requiredSINAUT ST7 ES

storage location / of TIM configuration dataon the CPU or TIM

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / time

product component / hardware real time clockYes

product feature / hardware real time clock w. battery backupYes

accuracy / of the hardware real time clock / per day / maximum4 s

from NTP-serverYes

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / KC approvalYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / ULhazloc approvalYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

certificate of suitability / FM registrationYes
