Siemens 6NH7800-3CA00

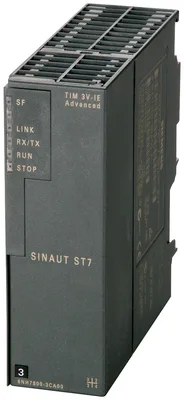

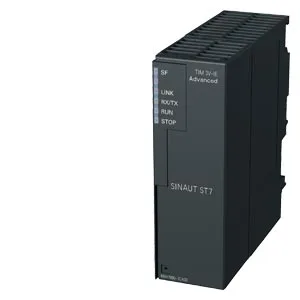

- - spare part - - SINAUT ST7, TIM 3V-IE Advanced communications module for SIMATIC S7-300 with an RS232 interface for SINAUT communication via a classic WAN and an RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN).

SiemensMFR # 6NH7800-3CA00SKU # CEY-8EF3B0385ABA

product brand nameSINAUT ST7

for Industrial Ethernet10 ... 100 Mbit/s

according to RS 23250 ... 38400 bit/s

for power supply1

of Industrial Ethernet interfaceRJ45 port

for power supply2-pole plugable terminal block

Have questions?Chat on WhatsApp

About This Product

Siemens 6NH7800-3CA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSINAUT ST7

transfer rate

for Industrial Ethernet10 ... 100 Mbit/s

according to RS 23250 ... 38400 bit/s

interfaces

number of interfaces / according to Industrial Ethernet1

for external data transmission / according to RS 2321

for power supply1

of Industrial Ethernet interfaceRJ45 port

at interface 1 / for external data transmission9 pin Sub-D-connector (RS232)

for power supply2-pole plugable terminal block

C-PLUGNo

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage24 V

supply voltage20.4 ... 28.8 V

supply voltage / external / at DC / rated value24 V

supply voltage / external / at DC / rated value20.4 ... 28.8 V

at 5 V5 %

relative positive tolerance / at DC / at 24 V5 %

relative negative tolerance / at DC / at 24 V5 %

from backplane bus / at DC / at 24 V / maximum0.2 A

from external supply voltage / at DC / at 24 V / maximum0.2 A

power loss [W]5.8 W

product extension / optional / backup batteryNo

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 single width

width40 mm

height125 mm

depth120 mm

net weight0.25 kg

product features, product functions, product components / general

noteNumber of TIMs per S7-300: multiple, number depends on the connection resources of the S7-300 CPU

with RS 232 interface / maximum6 m

performance data / S7 communication

maximum24

with PG connections / maximum4

with OP connections / maximum20

SINAUT ST7 via S7 communicationYes

PG/OP communicationYes

performance data / multi-protocol mode

number of active connections / with multi-protocol mode24

performance data / telecontrol

node stationYes

substationYes

TIM control centerYes

noteRS232 and Industrial Ethernet can be operated in parallel

DNP3No

SINAUT ST1 protocolYes

SINAUT ST7 protocolYes

product function / data buffering if connection is abortedYes; 32,000 data messages

of S7 CPU work memory / for TD7onCPU mode data blocks on CPU / required20 Kibyte

of S7 CPU work memory / for TD7onTIM mode data blocks on TIM / required0 Kibyte

noteTD7onCPU: at least 20 KB, actual requirement determined by data volume and functional scope TD7onTIM: 0 bytes in most favorable case

product feature / buffered message frame memoryNo

for SINAUT ST1 protocol with polling / 11 bitYes

for SINAUT ST1 protocol with spontaneous / 10-bit or 11-bitYes

for SINAUT ST7 protocol with multi-master polling / 10-bitYes

for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitYes

with dedicated line/radio link / with SINAUT ST1 protocolPolling, polling with time slot procedure

with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure, multi-master polling with time slot procedure

with dial-up network / with SINAUT ST1 protocolspontaneous

with dial-up network / with SINAUT ST7 protocolspontaneous

for SINAUT ST1 protocol4

for SINAUT ST7 protocol4

product functions / management, configuration, engineering

requiredSINAUT ST7 ES

for CPU configuring / required / SINAUT TD7 block library for CPUYes

for PG configuring / required / SINAUT ST7 configuration software for PGYes

storage location / of TIM configuration dataon the TIM

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / security

operating mode / Virtual Private Network (VPN)Yes

type of authentication / with Virtual Private Network / PSKYes

password protection for VPNYes

MSC client via GPRS modem with MSC capabilityYes

is supported / MSC protocolYes

with Virtual Private Network MSC / is supportedTCP/IP

key length / for MSC / with Virtual Private Network128 bit

as MSC client / with VPN connection1

as MSC server / with VPN connection0

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / KC approvalYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / ULhazloc approvalYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

certificate of suitability / FM registrationYes
