How can I get a price quote for Siemens 6GT2811-6CC10-2AA0?

You can request a fast quote for Siemens 6GT2811-6CC10-2AA0 from Yılsa Engineering. Reference part number YLSQ7JHHWV4MGJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GT2811-6CC10-2AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GT2811-6CC10-2AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GT2811-6CC10-2AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

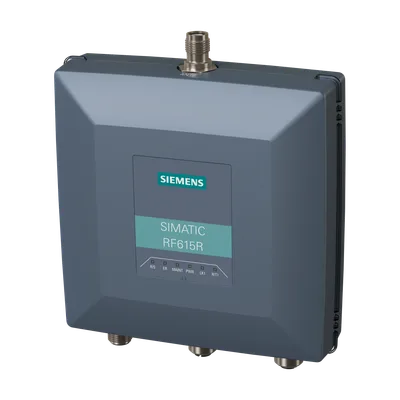

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6GT2811-6CC10-2AA0

Successor 6GT2811-8CC10-2AA0 start of delivery planned for 08/27 CMIIT; Interfaces: 1 Ethernet / PROFINET M12; 1 integrated antenna + 1 ext. antenna port; 1 dig. input, 1 dig. output; 24 V DC; IP67;-25 to +55 °C without accessories.

SiemensMFR # 6GT2811-6CC10-2AA0SKU # YLSQ7JHHWV4MGJ

product brand nameSIMATIC RF

operating frequency920 ... 925 MHz

transmit power3 ... 400 mW

for each external antenna / maximum1100 mW

minimum10 mW

maximum200 mW

Have questions?Chat on WhatsApp

About This Product

Siemens 6GT2811-6CC10-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC RF

suitability for operationRF600 Transponder, for direct connection to Ethernet, PROFINET, EtherNet/IP or PROFIBUS via communication module, OPC UA server integrated

radio frequencies

operating frequency920 ... 925 MHz

transmit power3 ... 400 mW

for each external antenna / maximum1100 mW

minimum10 mW

maximum200 mW

protocol / with radio transmissionEPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62/-63

transfer rate / with radio transmission / maximum400 kbit/s

product feature / multitag-capableYes

polarizationcircular

electrical data

for write access / per byte / typical2 ms

for read access / per byte / typical0.15 ms

interfaces

number of external antennas1

standard for interfaces / for communicationEthernet, PROFINET, OPC UA, EtherNet/IP, RS422

for external antenna(s)RP-TNC

for supply voltageM12, 8-pin, connector

for communications interfaceM12, 4-pin, d-coded

at the digital inputs/outputsM12, 5-pin, female connector

number of digital inputs1

number of digital outputs1

mechanical data

materialPocan

colorsilver, TI-Grey

mounting distance / relating to metal surfaces / recommended / minimum0 mm

supply voltage, current consumption, power loss

rated value24 V

20 ... 30 V

at 24 V / typical0.2 A

at 24 V / maximum0.22 A

ambient conditions

during operation-25 ... +55 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

ambient condition / for operationWith operating temperature below -20 °C: Warming-up time at least 10 minutes

protection class IPIP67

shock resistanceEN 60068-2-27, EN 60068-2-6

shock acceleration250 m/s²

vibrational acceleration30 m/s²

resistance to mechanical stressThe maximum values for shock and vibration acceleration must not occur as continuous stress and they apply exclusively to assembly using screws

design, dimensions and weights

width133 mm

height133 mm

depth45 mm

net weight0.37 kg

fastening methodVesa 100 with 4 x M4 screws

of antenna cable / minimum1 m

of antenna cable / maximum40 m

product features, product functions, product components / general

display versionLED bars with 6 LED and 1 circulating LED

protocol / is supported / Media Redundancy Protocol (MRP)Yes

product function / of the PROFINET IO device / is supported / H-Sync forwardingNo

LLDPYes

PROFINET IO protocolYes

TCP/IPYes

SNMP v1Yes

SNMP v2No

SNMP v3Yes

DCPYes

EtherNet/IP protocolYes

OPC UAYes

product feature / silicon-freeYes

product functions / management, configuration, engineering

type of parameterizationHSP, GSDML, EDS, TO, WBM

type of programmingIdent profile, library with functions, OPC UA, XML

type of computer-switched communicationacyclic communication, TCP/IP

standards, specifications, approvals

certificate of suitabilitywireless acc. to CMIIT, OPC UA: embedded UA Server Profile

IECExNo

MTBF29 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total204.34 kg

during manufacturing71.5 kg

during operation131.97 kg

after end of life0.87 kg

accessories

accessoriesOne external antenna

Accessories 10

Genuine accessories that can be used with the Siemens 6GT2811-6CC10-2AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GT2890-2AB10	Aksesuar
6GT2890-2AC00	Aksesuar
6GT2891-0PH50	Aksesuar · Cables · power cables
6GT2891-4EH50	Aksesuar · Cables · serial cable
6GT2898-0AC00	Aksesuar
6GT2898-0AC10	Aksesuar
6GT2898-0AC20	Aksesuar
6XV1870-8AH50	Aksesuar · Cables · network cable electrical
6XV1871-5TH50	Aksesuar · Cables · network cable electrical
6GT2002-0EE20	Genişletme · Identification systems · RFID
