How can I get a price quote for Siemens 6GK7343-5FA01-0XE0?

You can request a fast quote for Siemens 6GK7343-5FA01-0XE0 from Yılsa Engineering. Reference part number CEY-937FC77F4E6A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK7343-5FA01-0XE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK7343-5FA01-0XE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK7343-5FA01-0XE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

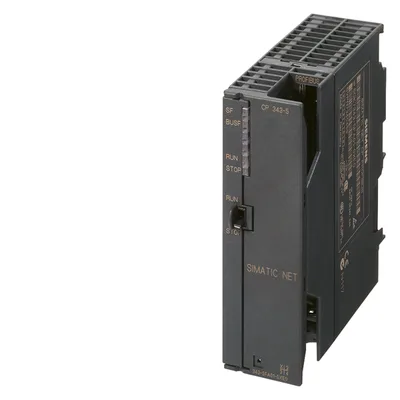

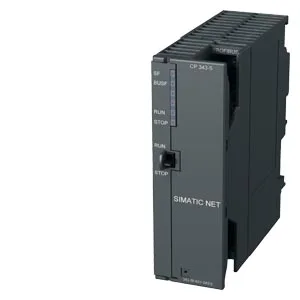

Siemens 6GK7343-5FA01-0XE0

- - spare part - - communications processor CP 343-5 for connection of SIMATIC S7-300 to PROFIBUS, FMS, S5-compatible, PG/OP and S7 communication, 12 Mbps, single-mode operation.

SiemensMFR # 6GK7343-5FA01-0XE0SKU # CEY-937FC77F4E6A

product brand nameSIMATIC NET

for power supply1

for power supply4-pole terminal block

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus5 V

supply voltage24 V

Have questions?Chat on WhatsApp

About This Product

- - spare part - - communications processor CP 343-5 for connection of SIMATIC S7-300 to PROFIBUS, FMS, S5-compatible, PG/OP and S7 communication, 12 Mbps, single-mode operation.

Siemens 6GK7343-5FA01-0XE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet0

at the 1st interface / according to PROFIBUS1

for power supply1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)

for power supply4-pole terminal block

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus5 V

supply voltage24 V

supply voltage / external24 V

supply voltage / external / at DC / rated value24 V

relative positive tolerance / at DC / at 24 V20 %

relative negative tolerance / at DC / at 24 V15 %

from backplane bus / at DC / at 5 V / typical0.15 A

from external supply voltage / at DC / at 24 V / typical0.25 A

power loss [W]5 W

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 single width

width40 mm

height125 mm

depth120 mm

net weight0.3 kg

S7-300 rail mountingYes

product features, product functions, product components / general

per CPU / maximum4

performance data / open communication

number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum16

as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum240 byte

performance data / FMS functions

number of possible connections / for FMS connection / maximum16

for READ job / maximum237 byte

for WRITE and REPORT job / maximum233 byte

configurable from server to FMS partner256

loadable from server to FMS partner256

performance data / S7 communication

maximum16

performance data / multi-protocol mode

number of active connections / with multi-protocol mode48

performance data / telecontrol

TCP/IPNo

product functions / management, configuration, engineering

requiredSTEP 7 V5.1 SP3 or higher and NCM S7 for PROFIBUS

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / ULhazloc approvalYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

standards, specifications, approvals / marine classification / header

Marine classification association / Polski Rejestr Statkow (PRS)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total229.03 kg

during manufacturing17.48 kg

during operation211.2 kg

after end of life0.35 kg

Accessories 1

Genuine accessories that can be used with the Siemens 6GK7343-5FA01-0XE0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
