How can I get a price quote for Siemens 6GK7343-1CX10-0XE0?

You can request a fast quote for Siemens 6GK7343-1CX10-0XE0 from Yılsa Engineering. Reference part number CEY-55221B13B85A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK7343-1CX10-0XE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK7343-1CX10-0XE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK7343-1CX10-0XE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

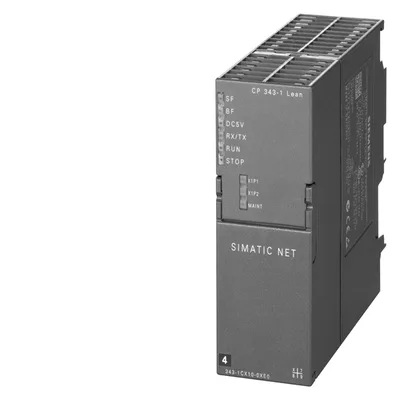

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

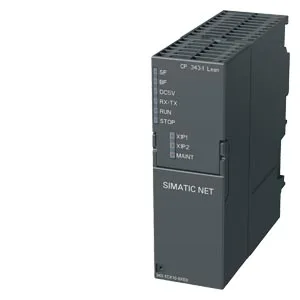

Siemens 6GK7343-1CX10-0XE0

- - spare part - - communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, multicast, send/receive with and without RFC1006, fetch/ write, S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, module exchange without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbps.

SiemensMFR # 6GK7343-1CX10-0XE0SKU # CEY-55221B13B85A

product brand nameSIMATIC NET

at the 1st interface10 ... 100 Mbit/s

for power supply1

of Industrial Ethernet interfaceRJ45 port

for power supply2-pole plugable terminal block

type of voltage / of the supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK7343-1CX10-0XE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface10 ... 100 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet2

at the 1st interface / according to Industrial Ethernet2

for power supply1

of Industrial Ethernet interfaceRJ45 port

at the 1st interface / according to Industrial EthernetRJ45 port

for power supply2-pole plugable terminal block

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus5 V

supply voltage24 V

supply voltage / external24 V

supply voltage / external / at DC / rated value24 V

relative positive tolerance / at DC / at 24 V20 %

relative negative tolerance / at DC / at 24 V15 %

from backplane bus / at DC / at 5 V / typical0.2 A

from external supply voltage / at DC / at 24 V / typical0.16 A

from external supply voltage / at DC / at 24 V / maximum0.2 A

power loss [W]5.8 W

ambient conditions

for vertical installation / during operation0 ... 40 °C

for horizontally arranged busbars / during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-300 single width

width40 mm

height125 mm

depth120 mm

net weight0.22 kg

S7-300 rail mountingYes

performance data / open communication

number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum8

as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte

as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte

as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum2 Kibyte

number of Multicast stations8

performance data / S7 communication

maximum4

of SIMATIC communication / as serverYes

performance data / multi-protocol mode

number of active connections / with multi-protocol mode12

performance data / PROFINET communication / as PN IO controller

product function / PROFINET IO controllerNo

performance data / PROFINET communication / as PN IO device

product function / PROFINET IO deviceYes

as user data for input variables / as PROFINET IO device / maximum512 byte

as user data for output variables / as PROFINET IO device / maximum512 byte

as user data for input variables / for each sub-module as PROFINET IO device240 byte

as user data for output variables / for each sub-module as PROFINET IO device240 byte

as user data for the consistency area for each sub-module240 byte

number of submodules / per PROFINET IO-Device32

performance data / telecontrol

TCP/IPYes

product functions / management, configuration, engineering

product function / MIB supportYes

SNMP v1Yes

DCPYes

LLDPYes

requiredSTEP 7 V5.4 or higher / STEP 7 Professional V11 (TIA Portal) or higher

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function / web-based diagnosticsYes

product functions / switch

product feature / switchYes

switch-managedNo

with IRT / PROFINET IO switchNo

configuration with STEP 7Yes

product functions / redundancy

ring redundancyYes

redundancy managerNo

protocol / is supported / Media Redundancy Protocol (MRP)Yes

product functions / security

password protection for Web applicationsNo

ACL - IP-basedYes

ACL - IP-based for PLC/routingNo

switch-off of non-required servicesYes

blocking of communication via physical portsYes

log file for unauthorized accessNo

product functions / time

product function / SICLOCK supportYes

product function / pass on time synchronizationYes

NTPYes

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / KC approvalYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / ULhazloc approvalYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

certificate of suitability / FM registrationYes

standards, specifications, approvals / marine classification / header

Marine classification association / Polski Rejestr Statkow (PRS)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total77.4 kg

during manufacturing26.4 kg

during operation50.46 kg

after end of life0.54 kg

Accessories 21

Genuine accessories that can be used with the Siemens 6GK7343-1CX10-0XE0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6XV1812-8A	Aksesuar · Cables · power cables
6XV1870-3QH10	Aksesuar · Cables · network cable electrical
6XV1870-3QH20	Aksesuar · Cables · network cable electrical
6XV1870-3QH30	Aksesuar · Cables · network cable electrical
6XV1870-3QN10	Aksesuar · Cables · network cable electrical
6XV1870-3QN15	Aksesuar · Cables · network cable electrical
6XV1870-4HH10	Aksesuar · Cables · network cable electrical
6XV1870-4HH20	Aksesuar · Cables · network cable electrical
6XV1870-4HH30	Aksesuar · Cables · network cable electrical
6XV1870-4HH40	Aksesuar · Cables · network cable electrical
6GK1901-1BE00-0AA1	Aksesuar · Cabling system
6XV1840-2AN20	Aksesuar · Cables · network cable electrical
6XV1840-2AN50	Aksesuar · Cables · network cable electrical
6XV1801-6EE50	Aksesuar · Cables · power cables
6XV1801-6EH10	Aksesuar · Cables · power cables
6XV1801-6EH15	Aksesuar · Cables · power cables
6XV1801-6EH20	Aksesuar · Cables · power cables
6XV1801-6EH30	Aksesuar · Cables · power cables
6XV1801-6EH50	Aksesuar · Cables · power cables
6XV1801-6EN10	Aksesuar · Cables · power cables
6XV1801-6EN15	Aksesuar · Cables · power cables
