How can I get a price quote for Siemens 6GK7277-1AA50-0AA0?

You can request a fast quote for Siemens 6GK7277-1AA50-0AA0 from Yılsa Engineering. Reference part number YLSWTKMNTXRPRJO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK7277-1AA50-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK7277-1AA50-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK7277-1AA50-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

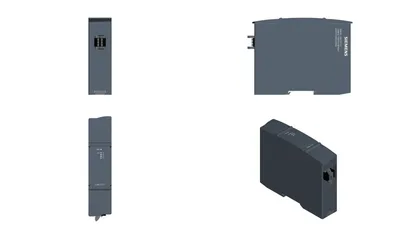

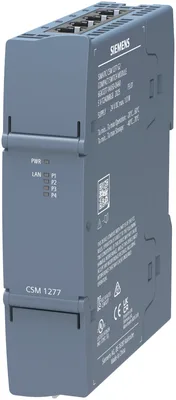

Siemens 6GK7277-1AA50-0AA0

CSM 1277 G2 compact switch module for SIMATIC S7-1200 G2 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbps; unmanaged switch, 4 RJ45 ports, external 24 V DC power supply LED diagnostics, S7-1200 module incl. Equipment Manual for download available

SiemensMFR # 6GK7277-1AA50-0AA0SKU # YLSWTKMNTXRPRJO

product brand nameSCALANCE

product type designationCSM 1277 G2

transfer rate10, 100 Mbit/s

for power supply1

for power supply6-pole terminal block

supply voltage / 1 / rated value24 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK7277-1AA50-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationCSM 1277 G2

transfer rate

transfer rate10, 100 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment4; RJ45

interfaces / other

for power supply1

for power supply6-pole terminal block

supply voltage, current consumption, power loss

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value1 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum0.34 A

type of electrical connection / 1 / for power supply6-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 0,5 A / 60 V

ambient conditions

during operation-20 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

ambient temperature / in horizontal mounting position / during operation-20 ... +60 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

designSIMATIC S7-1200 device design

width30 mm

height125 mm

depth100 mm

net weight0.166 kg

35 mm DIN-rail mountingYes

wall mountingYes

S7-300 rail mountingNo

S7-1500 rail mountingNo

product features, product functions, product components / general

number of automatically learnable MAC addresses2048

number of QoS queues / per port4

QoS according to IEEE 802.1QYes

product functions / management, configuration, engineering

multiport mirroringNo

CoSYes

switch-managedNo

PROFINET conformity classA

telegram length / for Ethernet / maximum1536 byte

product functions / redundancy

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

standards, specifications, approvals

CE markingYes

UKCA markingYes

EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1Yes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 61010-1, CAN/CSA-C222 No. 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-2-201

standards, specifications, approvals / other

RoHS conformityYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total27.29 kg

during manufacturing2.7 kg

during operation24.3 kg

after end of life0.29 kg

product functions / general

MTBF268 a

reference temperature / for MTBF determination40 °C

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing2.7 kg

global warming potential [CO2 eq] / during operation24.3 kg

global warming potential [CO2 eq] / after end of life0.29 kg

global warming potential [CO2 eq] / total27.29 kg
