How can I get a price quote for Siemens 6GK7243-8RX30-0XE0?

You can request a fast quote for Siemens 6GK7243-8RX30-0XE0 from Yılsa Engineering. Reference part number CEY-8EF3B0385EEE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK7243-8RX30-0XE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK7243-8RX30-0XE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK7243-8RX30-0XE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

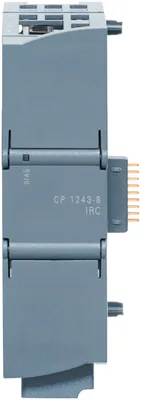

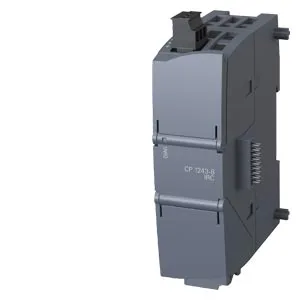

Siemens 6GK7243-8RX30-0XE0

Communications processor CP 1243-8 IRC for operating a SIMATIC S7-1200 in the TeleControl system Professional; for SINAUT ST7; DNP3; IEC 60870-5, station type: RTU; WAN connections;1) Ethernet 2) Additionally expandable with TS module RS-232 or TS module modem or TS module GSM or TS module ISDN; Operation with TIM modules possible.

SiemensMFR # 6GK7243-8RX30-0XE0SKU # CEY-8EF3B0385EEE

product brand nameSIMATIC NET

at the 1st interface10 ... 100 Mbit/s

at the 2nd interface0.3 ... 115.2 kbit/s

for power supply1

for power supply3-pole terminal block

type of voltage / of the supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK7243-8RX30-0XE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface10 ... 100 Mbit/s

at the 2nd interface0.3 ... 115.2 kbit/s

interfaces

number of interfaces / according to Industrial Ethernet1

at the 1st interface / according to Industrial Ethernet1

for power supply1

at the 1st interface / according to Industrial EthernetRJ45 port

at interface 2 / for external data transmissionInterface to the TS Module

for power supply3-pole terminal block

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / 1 / from backplane bus5 V

supply voltage / external24 V

supply voltage / external19.2 ... 28.8 V

supply voltage / external / at DC / rated value24 V

supply voltage / external / at DC / rated value19.2 ... 28.8 V

from backplane bus / at DC / at 5 V / typical0.25 A

from external supply voltage / at DC / at 24 V / typical0.1 A

power loss [W]2.4 W; 1.25 W from S7-1200 backplane without TS module. 2.4 W from 24 V DC external with TS module

ambient conditions

for vertical installation / during operation-20 ... +60 °C

for horizontally arranged busbars / during operation-20 ... +70 °C

during storage-40 ... -70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-1200 single width

width30 mm

height110 mm

depth75 mm

net weight0.122 kg

35 mm DIN-rail mountingYes

S7-300 rail mountingNo

wall mountingYes

product features, product functions, product components / general

per CPU / maximum1

noteOne CP pluggable on left side of CPU, one TS Module pluggable left side of CP.

product functions / cloud connectivity

Message Queuing Telemetry Transport (MQTT)Yes

Advanced Message Queuing Protocol (AMQP)No

trigger managementYes

time stampingYes

product feature / for cloud connectivity / buffered message frame memoryNo

number of active connections / for cloud connectivity1

number of data points per device / maximum500

performance data / open communication

by means of T blocks / maximumlike CPU

performance data / S7 communication

maximumConfigured S7-Connection for ST7-Communication

with PG connections / maximum2

with OP connections / maximum1

SINAUT ST7 via S7 communicationYes

performance data / IT functions

as email client / maximum1

performance data / telecontrol

node stationNo

substationYes

TIM control centerNo

noteEthernet and TS Module can be operated in parallel

control center connectioncontrol center with ST7 function

by means of a permanent connectionsupported

DNP3Yes

IEC 60870-5Yes

SINAUT ST7 protocolYes

product function / data buffering if connection is abortedYes; DNP3, IEC60870-5: 64000 events, SINAUT ST7: 16000 telegrams

number of data points per device / maximum500

for SINAUT ST7 protocol with multi-master polling / 10-bitYes

for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitYes

with dedicated line/radio link / with SINAUT ST7 protocolPolling

with dial-up network / with SINAUT ST7 protocolspontaneous

for SINAUT ST7 protocol4

performance data / teleservice

diagnostics function / online diagnostics with SIMATIC STEP 7Yes

program download with SIMATIC STEP 7Yes

remote firmware updateYes

product functions / management, configuration, engineering

SNMP v3Yes

DCPYes

requiredSINAUT ES V5.5 and STEP7 V13 SP1 or higher

for PG configuring / required / SINAUT ST7 configuration software for PGYes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function / web-based diagnosticsYes

product functions / security

firewall versionstateful inspection

operating mode / Virtual Private Network (VPN)Yes

product function / with VPN connectionIPsec, SINEMA RC

type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56

type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates

type of hashing algorithms / with VPN connectionMD5, SHA-1

number of possible connections / with VPN connection8

password protection for teleservice accessNo

encrypted data transmissionYes

MSC client via GPRS modem with MSC capabilityYes

is supported / MSC protocolYes

with Virtual Private Network MSC / is supportedTCP/IP

key length / for MSC / with Virtual Private Network128 bit

as MSC client / with VPN connection1

as MSC server / with VPN connection0

product functions / time

NTPYes

from NTP-serverYes

from control centerYes

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total89.58 kg

during manufacturing14.29 kg

during operation75.11 kg

after end of life0.18 kg
