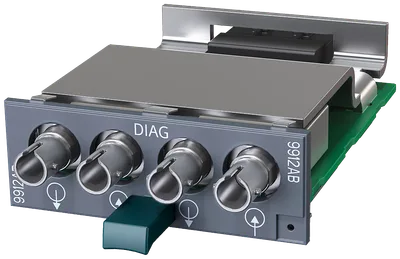

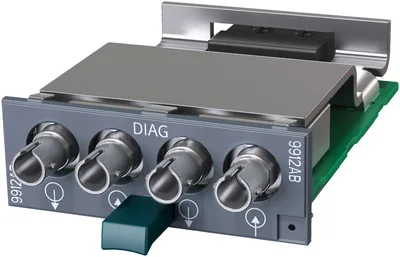

Siemens 6GK5991-2AB01-8AA0

SCALANCE X accessory; Media module MM991-2FM; 2x 100 Mbit/s BFOC ports, optical; multimode optical up to max. 5 km.

SiemensMFR # 6GK5991-2AB01-8AA0SKU # CEY-8EF3B03856E9

product brand nameSCALANCE

wavelength / of the optical interface1310 nm; Multi-mode

of the transmitter output / minimum-19 dB

of the transmitter output / maximum-14 dB

of the receiver input / maximum-3 dB

during operation-40 ... +70 °C

Have questions?Chat on WhatsApp

About This Product

SCALANCE X accessory; Media module MM991-2FM; 2x 100 Mbit/s BFOC ports, optical; multimode optical up to max. 5 km.

Siemens 6GK5991-2AB01-8AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum2

number of optical interfaces / for network components or terminal equipment / maximum2

number of 100 Mbit/s ST(BFOC) ports / for multimode / integrated2

design of the optical interface / for network components or terminal equipmentST/BFOC

wavelength / of the optical interface1310 nm; Multi-mode

of the transmitter output / minimum-19 dB

of the transmitter output / maximum-14 dB

of the receiver input / maximum-3 dB

optical sensitivity relating to 1 mW / of the receiver input / minimum-32 dB

attenuation factor / of the FOC transmission link / minimum necessary0 dB

range / at the optical interface / depending on the optical fiber used0 ... 5 km

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

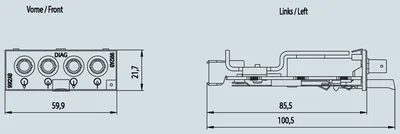

design, dimensions and weights

designMedia module

width60 mm

height22 mm

depth100 mm

net weight0.08 kg

fastening methodlatched

installation in media module slotYes

standards, specifications, approvals

for FMFM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4

for hazardous zoneEN 60079-0: 2006, EN60079-15: 2005, II 3(2) G Ex nA [op is] IIC T4 DEKRA 11 ATEX 0060 X

for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1

for hazardous zone / from CSA and ULUL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4

for emitted interferenceEN 61000-6-4:2007 (Class A)

for interference immunityEN 61000-6-2:2005

certificate of suitabilityEN 61000-6-2:2005, EN 61000-6-4:2007

CE markingYes

C-TickYes

KC approvalYes

CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8

CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc

French marine classification society (BV)Yes

MTBF135 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total71.77 kg

during manufacturing10.1 kg

during operation61.57 kg

after end of life0.1 kg
