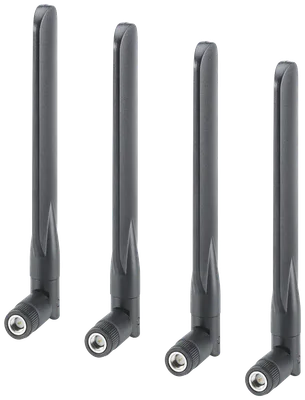

Siemens 6GK5897-4MA00-0AN3
Observe national approvals: www.siemens.com/mobilenetwork-approvals 5G/4G/3G/2G networks in frequency range of 600..5000 MHz; omnidirectional characteristic ; antenna gain: 1..2 dBi; including SMA male connection; radially rotatable with additional joint; IP30; -20..+65 °C; exact specification and national approvals to be observed; for direct installation with SMA connection system; scope of supply: 4x ANT 897-4MA,
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
operating frequency / 1617 ... 960 MHz
operating frequency / 21452 ... 1576 MHz
operating frequency / 31710 ... 2690 MHz
operating frequency / 43300 ... 4200 MHz
About This Product
Observe national approvals: www.siemens.com/mobilenetwork-approvals 5G/4G/3G/2G networks in frequency range of 600..5000 MHz; omnidirectional characteristic ; antenna gain: 1..2 dBi; including SMA male connection; radially rotatable with additional joint; IP30; -20..+65 °C; exact specification and national approvals to be observed; for direct installation with SMA connection system; scope of supply: 4x ANT 897-4MA,
Siemens 6GK5897-4MA00-0AN3
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks
radio frequencies
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS, GSM
operating frequency / 1617 ... 960 MHz
operating frequency / 21452 ... 1576 MHz
operating frequency / 31710 ... 2690 MHz
operating frequency / 43300 ... 4200 MHz
operating frequency / 54400 ... 5000 MHz
electrical data
with linear radiationtypical maximum gain
with linear radiation / in operating frequency area 1 / typical1 dB
with linear radiation / in operating frequency area 2 / typical2 dB
with linear radiation / in operating frequency area 3 / typical2 dB
with linear radiation / in operating frequency area 4 / typical2 dB
with linear radiation / in operating frequency area 5 / typical2 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum3.5
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionmale, variable 0-90°
mechanical data
of outer shellPC
colorblack
ambient conditions
during operation-20 ... +65 °C
during storage-30 ... +70 °C
protection class IPIP65
design, dimensions and weights
width35 mm
height160 mm
depth13 mm
net weight27 g
mast mountingNo
flat roof mountingNo
wall mountingNo
roof mountingNo
directly on the deviceYes
product features, product functions, product components / general
product feature / silicon-freeYes
standards, specifications, approvals
RoHS conformityYes
