How can I get a price quote for Siemens 6GK5826-2AB00-2AB2?

You can request a fast quote for Siemens 6GK5826-2AB00-2AB2 from Yılsa Engineering. Reference part number CEY-8EF3B038571A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5826-2AB00-2AB2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5826-2AB00-2AB2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5826-2AB00-2AB2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

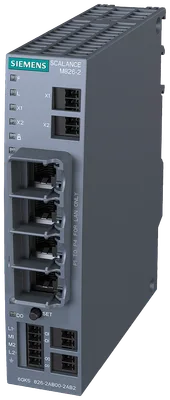

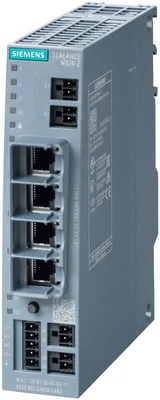

Siemens 6GK5826-2AB00-2AB2

SCALANCE M826-2 SHDSL router; for the IP communication via 2-wire and 4-wire cables from Ethernet-based Programmable controllers; SHDSL topology: Point-to-point, bonding, line bridge mode; Routing mode with VPN, Firewall, NAT; 4-port switch; 1x digital input, 1x digital output

SiemensMFR # 6GK5826-2AB00-2AB2SKU # CEY-8EF3B038571A

product brand nameSCALANCE

transfer rate / for Industrial Ethernet10, 100 Mbit/s

for SHSDL transmission / maximum15.3 Mbit/s

for internal network4

for external network2

for power supply2

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5826-2AB00-2AB2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

transfer rate

transfer rate / for Industrial Ethernet10, 100 Mbit/s

for SHSDL transmission / maximum15.3 Mbit/s

interfaces

for internal network4

for external network2

for power supply2

for internal networkRJ45 port (10/100 Mbit/s, TP, autocrossover)

for external networkTerminal strip

for power supplyTerminal strip

WAN connection

type of WAN connection / is supported / SHSDLYes

supply voltage, current consumption, power loss

supply voltage / rated value10.8 ... 28.8

at DC / at 24 V / typical0.29 A

supply voltage / 1 / rated value24 V

type of voltage / 1 / of the supply voltageDC

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +80 °C

relative humidity / at 25 °C / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

designcompact

depth127 mm

height147 mm

width35 mm

net weight393 g

35 mm DIN-rail mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingYes

wall mountingYes

product features, product functions, product components / general

DynDNS clientYes

no-ip.com clientYes

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

TelnetYes

HTTPYes

HTTPSYes

type of configurationWeb-based management

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

SNMP v1Yes

SNMP v2Yes

SNMP v2cYes

SNMP v3Yes

statistics Packet SizeNo

statistics packet typeNo

error statisticsNo

SysLogYes

packet filter logYes

product functions / DHCP

DHCP clientYes

DHCP server - internal networkYes

product functions / routing

NAT (IP masquerading)Yes

port forwardingYes

NAT traversalYes

1:1 NATYes

DNS cacheYes

product functions / security

suitability for operation / Virtual Private NetworkYes

firewall versionStatefull Inspection

password protectionYes

packet filterYes

broadcast/multicast/unicast limiterNo

broadcast blockingNo

with VPN connectionIPsec, OpenVPN (as Client)

number of possible connections / with VPN connection20

type of authentication / with Virtual Private Network / PSKYes

IPsec tunnel and transport modeYes

1 / with IPsec AES / with Virtual Private Network128 bit

2 / with IPsec AES / with Virtual Private Network192 bit

3 / with IPsec AES / with Virtual Private Network256 bit

with IPsec 3DES / with Virtual Private Network168 bit

main modeYes

quick modeYes

type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512

IETF profile / with Virtual Private Network / X.509v3 certificateYes

product functions / time

NTPYes

SNTPYes

standards, specifications, approvals

for FMFM16US0205X, FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4

for hazardous zoneEN 60079-15, EN 60079-0, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X

for safety / from CSA and ULUL 60950-1 E115352 Vol. X2

for hazardous zone / from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480

CE markingYes

CCC approvalYes; GB3836.1, GB3836.8, Ex nA IIC T4 Gc

railway application in accordance with EN 50121-3-2Yes

railway application in accordance with EN 50121-4Yes

railway application in accordance with EN 50155Yes; no coated printed circuit boards

railway application in accordance with EN 61373Yes; cat. 1, cl.A and cl. B

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)Yes

DNV GLYes

Korean Register of Shipping (KRS)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (NK)Yes

Polski Rejestr Statkow (PRS)Yes

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total239.6256 kg

during manufacturing20.1 kg

during operation219 kg

after end of life0.456 kg
